Section 8
High Pressure Water System
20479291
2-2012/Rev 04
8-30
1. Turn the air supply off.
2. Remove the air supply hose, and the electrical connection to the solenoid valve.

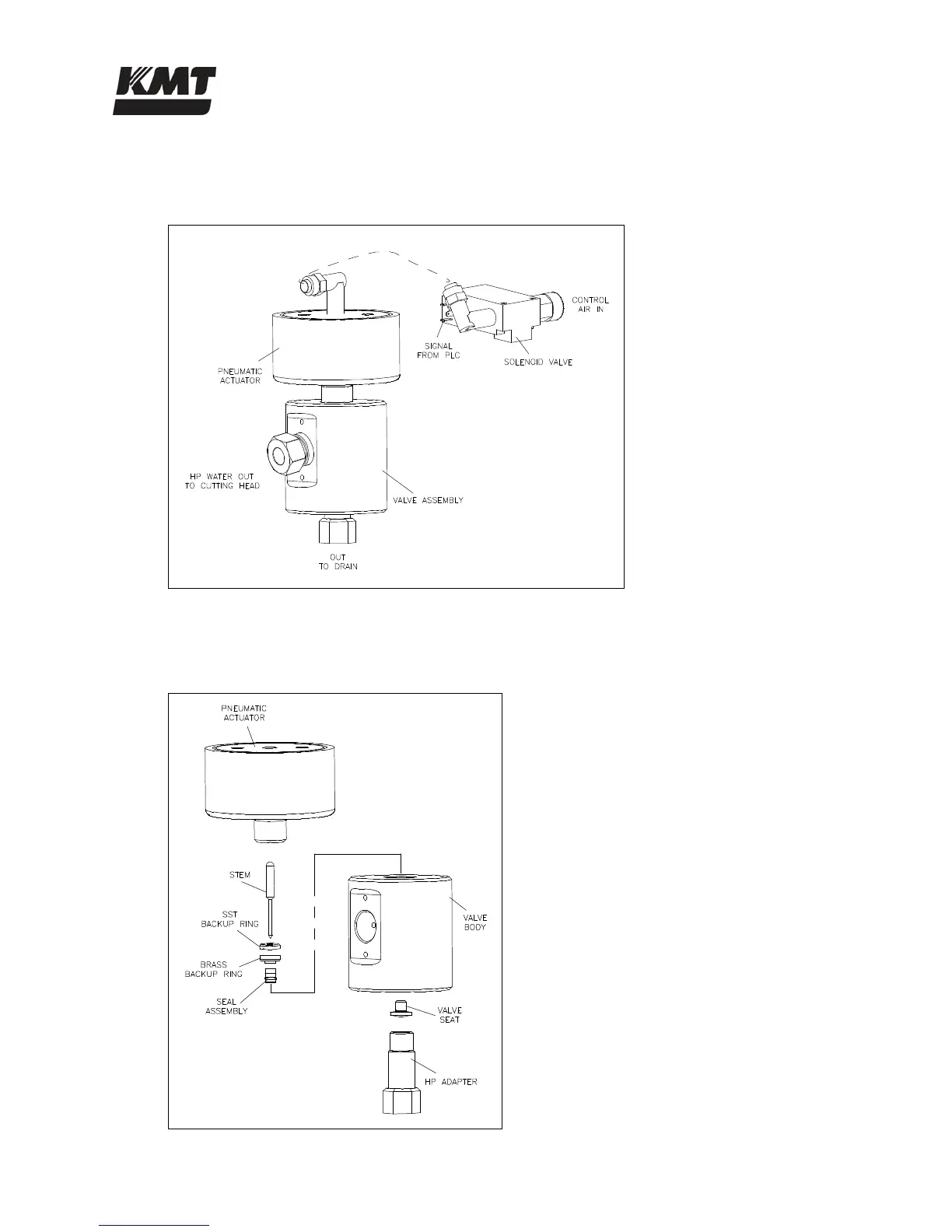

Figure 8-24: High Pressure Dump Valve
3. Loosen and remove the high pressure gland connections and the drain connection.
4. Remove the valve and actuator assembly from the machine.
Figure 8-25: Dump Valve Components
