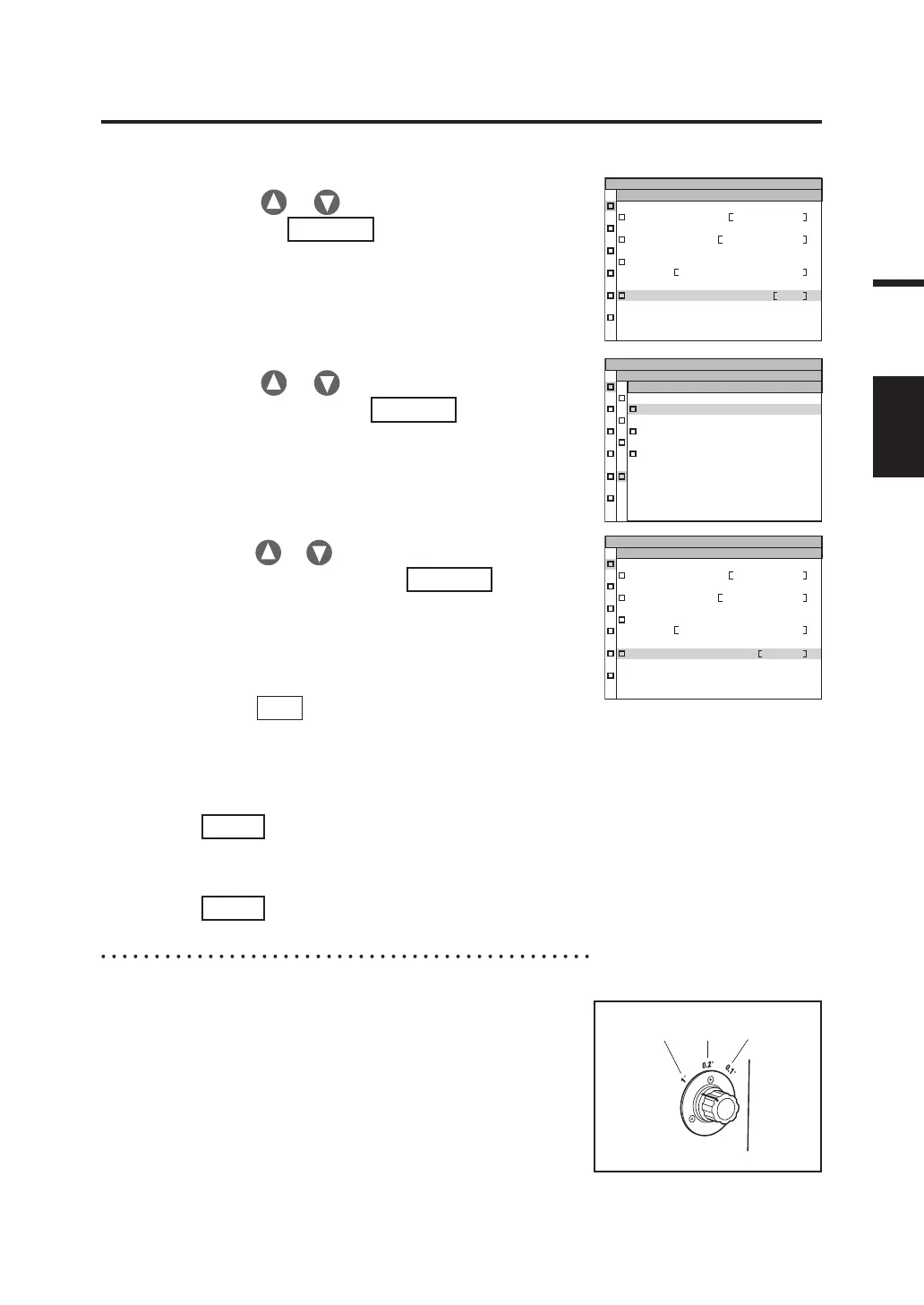

Setting
3. Press either or key to select
[ANGLE] and then press
ENTER
key.
The MENU - ANGLE (for selection of measurement
angle) screen appears on the LCD.
SPEED NORMAL
MEAS
SYNC FRAME
DOUBLE FRAME
ANGLE 1˚
ANGLE
1˚
0.1˚
0.2˚
5. Press
ESC
key.
The MENU screen appears again on the LCD.
6. Press
ESC
key.
The MEAS screen appears again on the LCD.
4. Press either or key to select [1°] /
[0.2°] / [0.1°] and then press
ENTER
key.
When the measurement angle is set, the MENU - MEAS
screen appears again on the LCD.
Motor noise may be heard when switching the
measurement angle electrically, but this is not abnormal.
By pressing the
ESC
key, the setting is canceled and
the MENU - MEAS screen appears again on the LCD.
The display format setting is saved even after the power
switch is turned OFF (O).
SPEED NORMAL
SYNC INT SYNC
MEAS
SYNC FRAME
DOUBLE FRAME
ANGLE 0.1˚
CS-2000Plus
The measurement angle is set to any of [1°], [0.2°] or
[0.1°] by rotating the measurement angle selector.
Do not move the measurement angle selector during
measurement. Switching during measurement may result in
failure of measurement or erroneous readings.
When rotating the measurement angle selector, move it to the
position where you feel a click. Rotating it only halfway may
result in failure of measurement or erroneous readings.
2. Press either or key to select [MEAS]
and then press
ENTER
key.
The MENU - MEAS screen appears on the LCD.
The current set contents are displayed in the [ANGLE]
item.
SPEED NORMAL
SYNC INT SYNC
MEAS
SYNC FRAME
DOUBLE FRAME
ANGLE 1˚
