Installation
Installing
The screw holes for fixing at the bottom of this instrument can be used for mounting this instrument on
a tripod or jig.
The instrument has the following two types of holes.
Tripod screw hole: Used to mount the instrument on a tripod. Use a tripod screw with top diameter of
3/8 inches and depth of 10.5 mm.
[Note] The tripod screw holes correspond with the 3/8-inch screws of a large camera
tripod. 1/4-inch screws cannot be used for fixing this instrument.
ISO screw hole: Used to mount the instrument on a jig. Use ISO screws with top diameter of 5 mm
and depth of 6.5 mm.

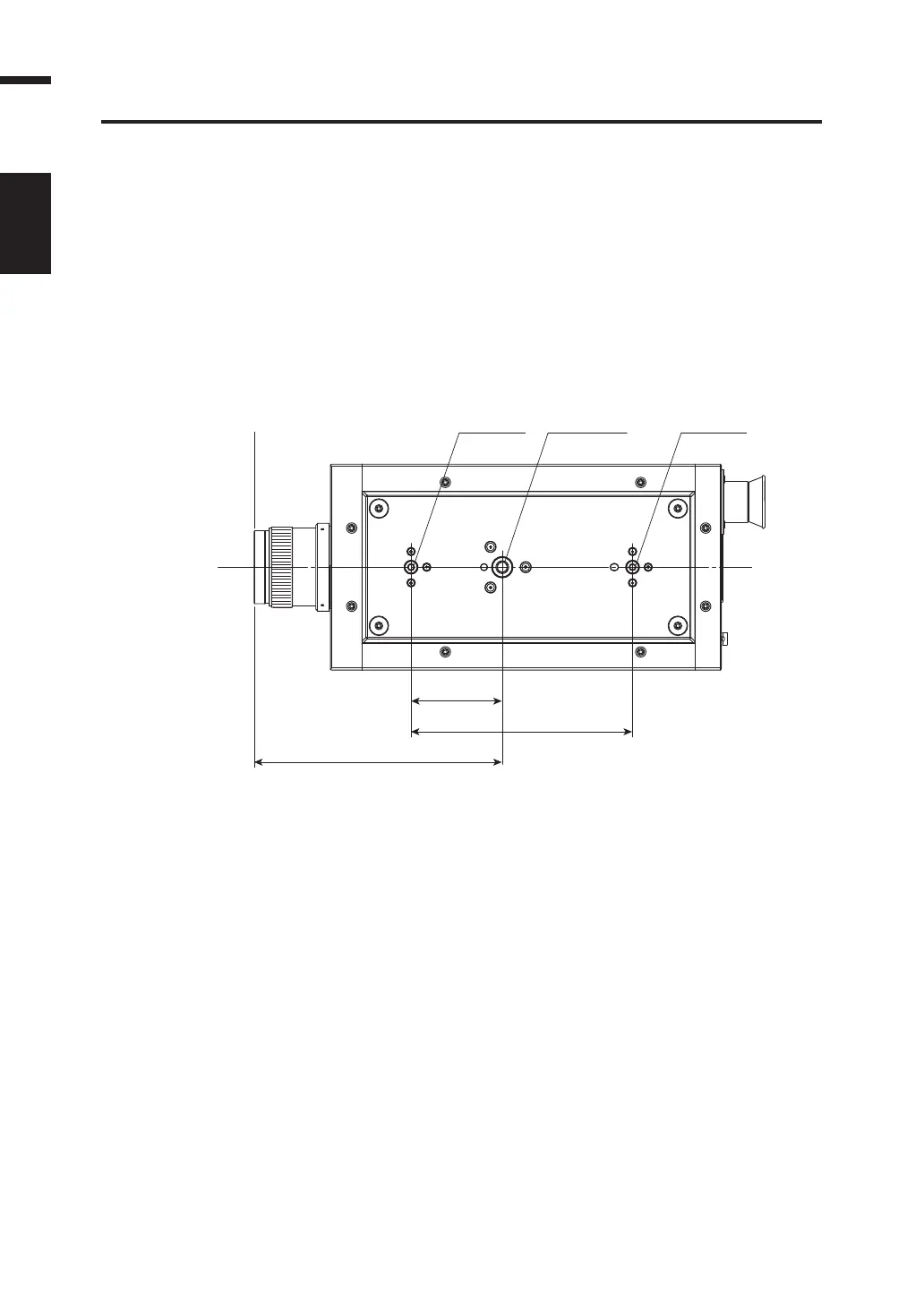

70
Measurement distance reference
Optical
axis
ISO screw ISO screwTripod screw
190.4
170
For other detailed dimensions, see p.93, 94, 95.
