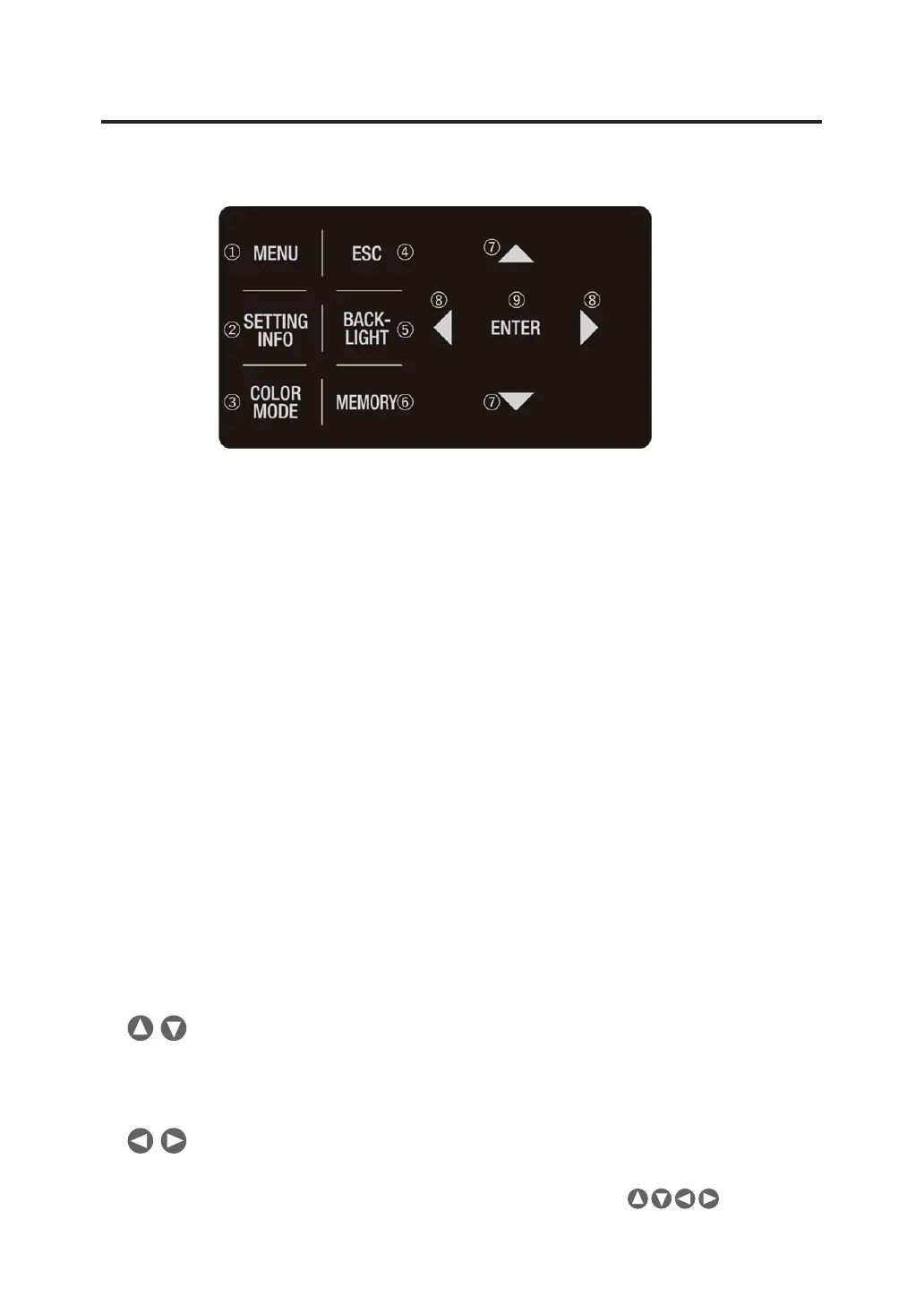

Key Panel
Main Functions of Each Key
(1) MENU key Switches to the MENU screen if pressed while the measurement value screen
is displayed. (p.17)
(2) SETTING INFO key Displays the current MEAS, OPTION, and SETUP settings if pressed while the
measurement value screen is displayed. (p.71)
(3) COLOR MODE key Color space modes are switched in turn as follows, by pressing this key while
the measurement value screen is displayed: L
v
xy L
v
u’v’ L
v
T
cp
∆uv XYZ
Dominant wavelength/Excitation purity Spectral graph L
v
xy. (p.48)
(4) ESC key If this key is pressed while the MENU screen is displayed, the settings are
canceled and the measurement value screen appears again. If pressed during
numerical input or when making each setting, the settings are canceled. If
pressed during continuous measurement, the measurement ends.
(5) BACKLIGHT key Selects backlight ON/OFF on the LCD screen. Pressing the BACKLIGHT key
switches the light in the following order: On (light) On (dark) Off On
(light), and so on.
(6) MEMORY key Measured data is stored in the memory by pressing this key while the
measurement value screen is displayed. (p.73)
(7)
, keys Memory data, calibration channels, etc., are changed by pressing these keys
while the screen for displaying various data is displayed. The cursor position
is moved up and down, or the values and set items are changed, by pressing
the key during numerical input or when making each setting.
(8)
, keys The cursor position moves right and left by pressing these keys during
numerical input or when making each setting.
(9) ENTER key Press this key to confirm the contents selected by
.
To Next Page
