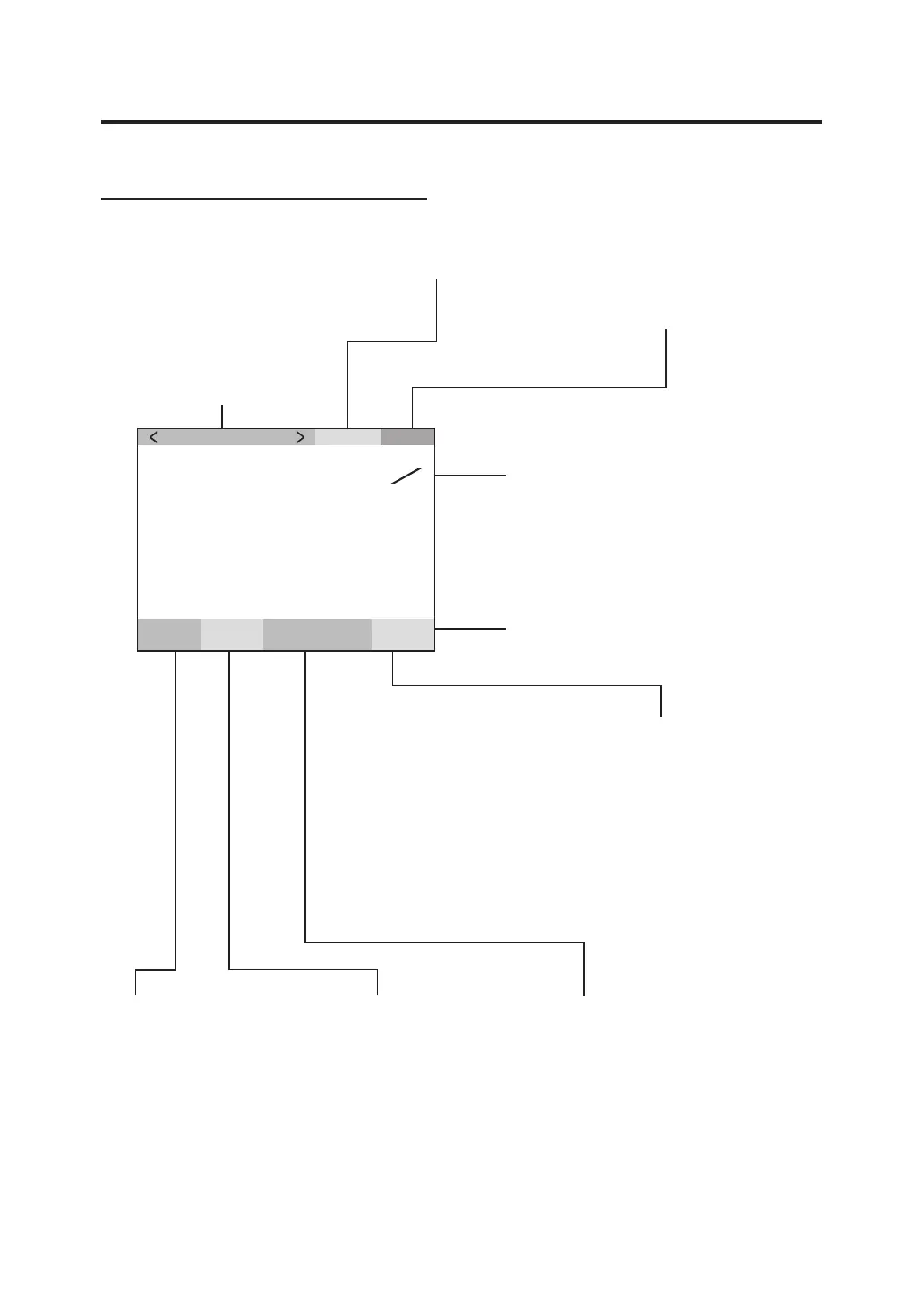

LCD Screen
MEAS (Measurement Value) Screen
“SNGL” is displayed for the
values obtained during single
measurement, while “CONT”
is displayed for the values
obtained during continuous
measurement. (p.70)
Calibration channel (p.66) Currently selected measurement
angle is displayed. (1°, 0.1°,
0.2°) (p.40)
Measurement results are displayed.
Currently selected color space is displayed.
(L
v
xy’, L
v
u’v’, L
v
T
cp
∆uv, XYZ, dominant
wavelength/excitation purity, spectral
graph) (p.48)
Display format can be changed. (p.44)
<CMF>
Currently selected color
matching function is
displayed.
(2°, 10°, PA2, PA10) (p.42)
Setting status of this instrument is
displayed.
<SPD>
Currently selected
measurement speed is
displayed.
(Nrm, Fst, SF1, SF2, M-N,
M-F, Mnl) (p.26)
<SYNC>
The set value of synchronized
frequency is displayed when set to
internal sync measurement mode.
“Ext” is displayed when the external
sync measurement mode is set, and
“Non” is displayed when the sync
measurement mode is not set. (p.31)
<ACC>
The currently installed
accessories, such as ND
filters, are displayed.
(Non, C-U, ND10, ND100,
ILL)
(p.50, 52, 54)
SPD
CMF
SYN
[
Hz
]
ACC
cd
m
2
Lv
x
y
To Next Page
