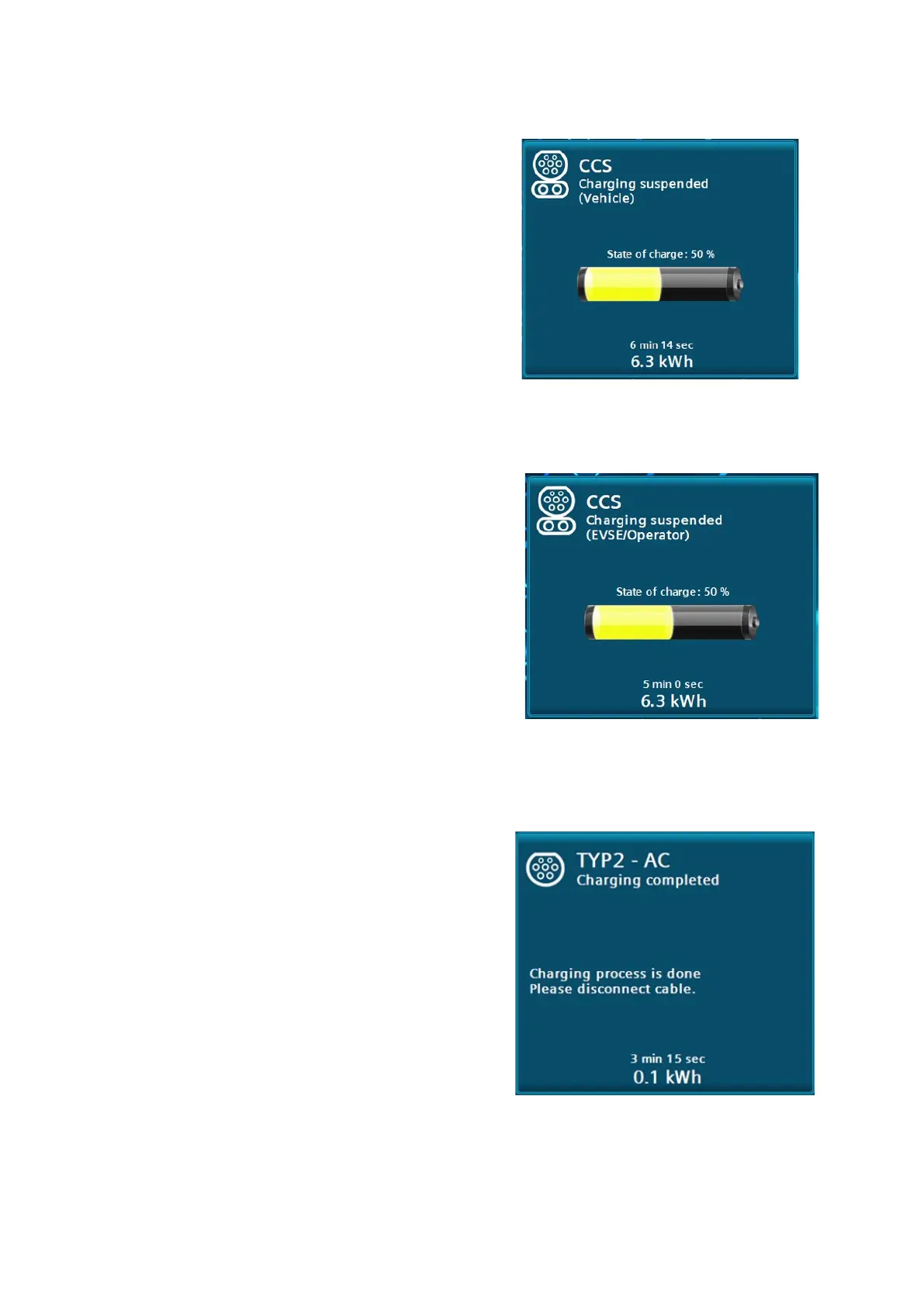

Fig 17: DC charging process "Charging process
interrupted by charging station / operator".
Fig 18: Charging process completed on
Example of the AC charging output
6.8.5 Charging process interrupted (by the vehicle)
If an ongoing charging process is interrupted by
the vehicle (without terminating the transaction),
the energy charged to date is displayed.
6.8.6 Charging process interrupted (by the station or the operator)
If an ongoing charging process is interrupted by
the station itself or the operator, the available
power is reduced to 0 kW. Possible causes can be
e.g. temperature loads on the station or supply
contracts of the operator.
6.8.7 Charging process completed
When charging is complete, you will be prompted
to disconnect from the vehicle. You will be shown
the charging duration and the charged energy (in
kWh). In certain configurations, the configured
maximum energy per charge is also displayed.
This menu is displayed until the charging point is
recognized as free. I.e. the plug is no longer
plugged in (for older CHAdeMO models (<
CHAdeMO V 1.1), the display duration may differ.
Remove the charging plug from the vehicle and
reinsert it into the plug holder on the charging
station.
