3 Operation
Stripping in thin layers (scraper)
☞Remove material in thin layers as follows:
• Set a flat digging angle
• Fold up the front half of the bucket by about 10 to 15 cm
• Start machine travel
➥ The material rolls into the bucket and is picked up at the same time
This position allows to strip grass turf, for example, down to a thickness of
about 8 cm.
Spreading material in thin layers
☞Spread material as follows:
• Set the rear cutting edge parallel to the ground
• Fold up the front half of the bucket until the required quantity of material is emptied
onto the ground
• Start machine travel
• Lower the multipurpose bucket to the ground
The rear cutting edge grades the material as it is emptied by opening the front
half of the bucket. The rear cutting edge grades the material as it is emptied
by opening the front half of the bucket. This position allows to spread material
without travelling on the lower layer with the machine (for example applying the
first bituminous base, applying granulated material onto plastic coatings, etc.).
Pulling out material from slopes
This position allows to pull material out of slopes or roadside ditches with
maximum safety and to spread it as required.

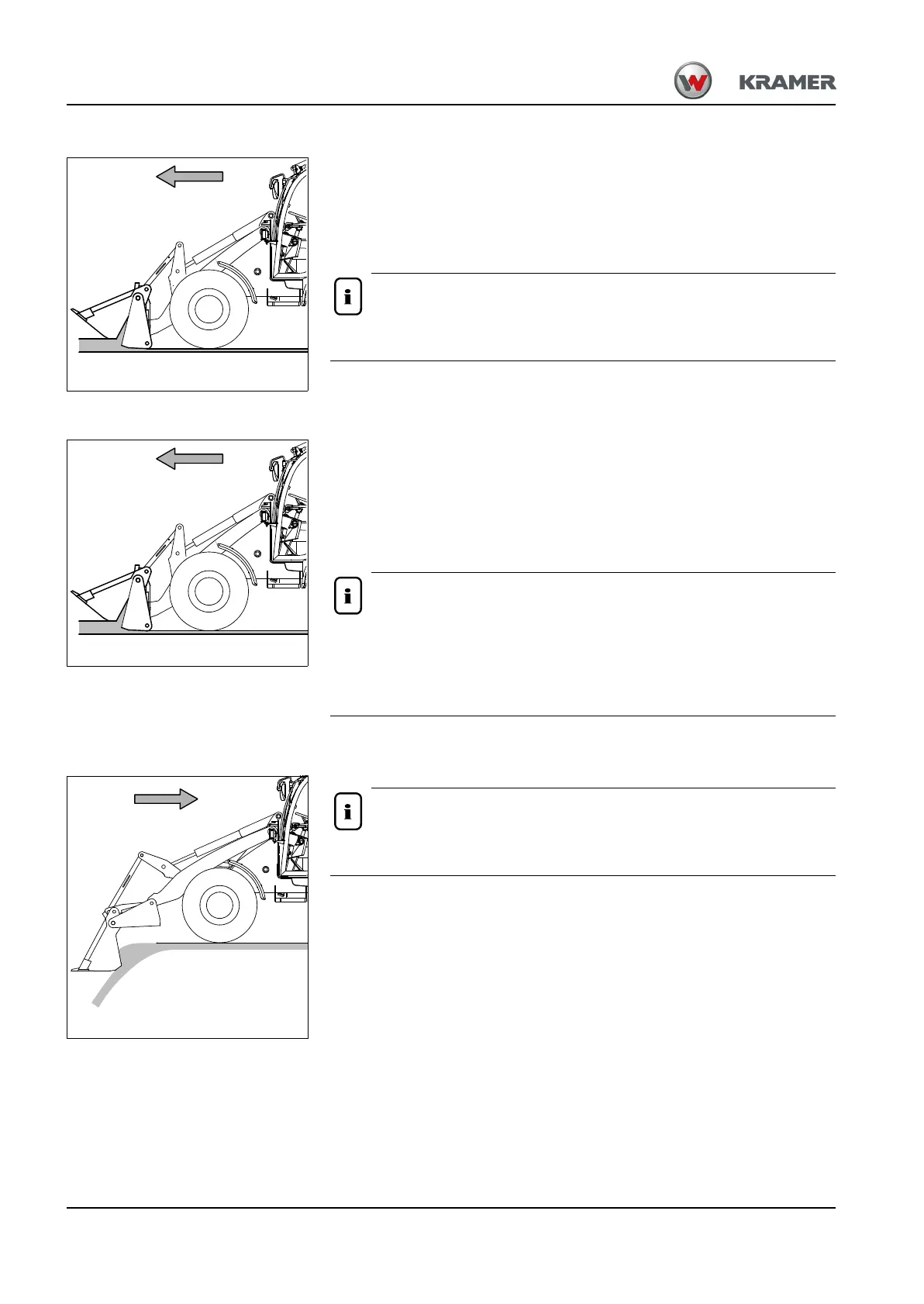

Ansicht_007.iso
Fig. 127 : Removing material in thin layers with a
multipurpose bucket
Ansicht_007.iso
Fig. 128 : Spreading material with the multipurpose bucket
Ansicht_006.iso
Fig. 129 : Pulling out material with a multipurpose bucket
