BA 348-01 * 2.0 * 34801b330.fm 3-15
Operation 3
Fully opening the side window
☞Unlock the side window. To do this: turn lever A upward
☞Open the side window completely. To do this: pull the end of lever a out of guide b
Locking and unlocking an open side window
☞Open the side window completely and press it backward against arrester B
➥The side window engages in the arrester and is locked
Apply a thin coat of spray oil at regular intervals to ensure the correct function
of arrester B.
The side window can only be unlocked from the outside.
☞Push down the lever of the arrester
➥The side window is released from the lock by spring action
☞Close the side window and safely lock it with lever A
–seeLocking and unlocking the cabin window on the right/left on page 3-14

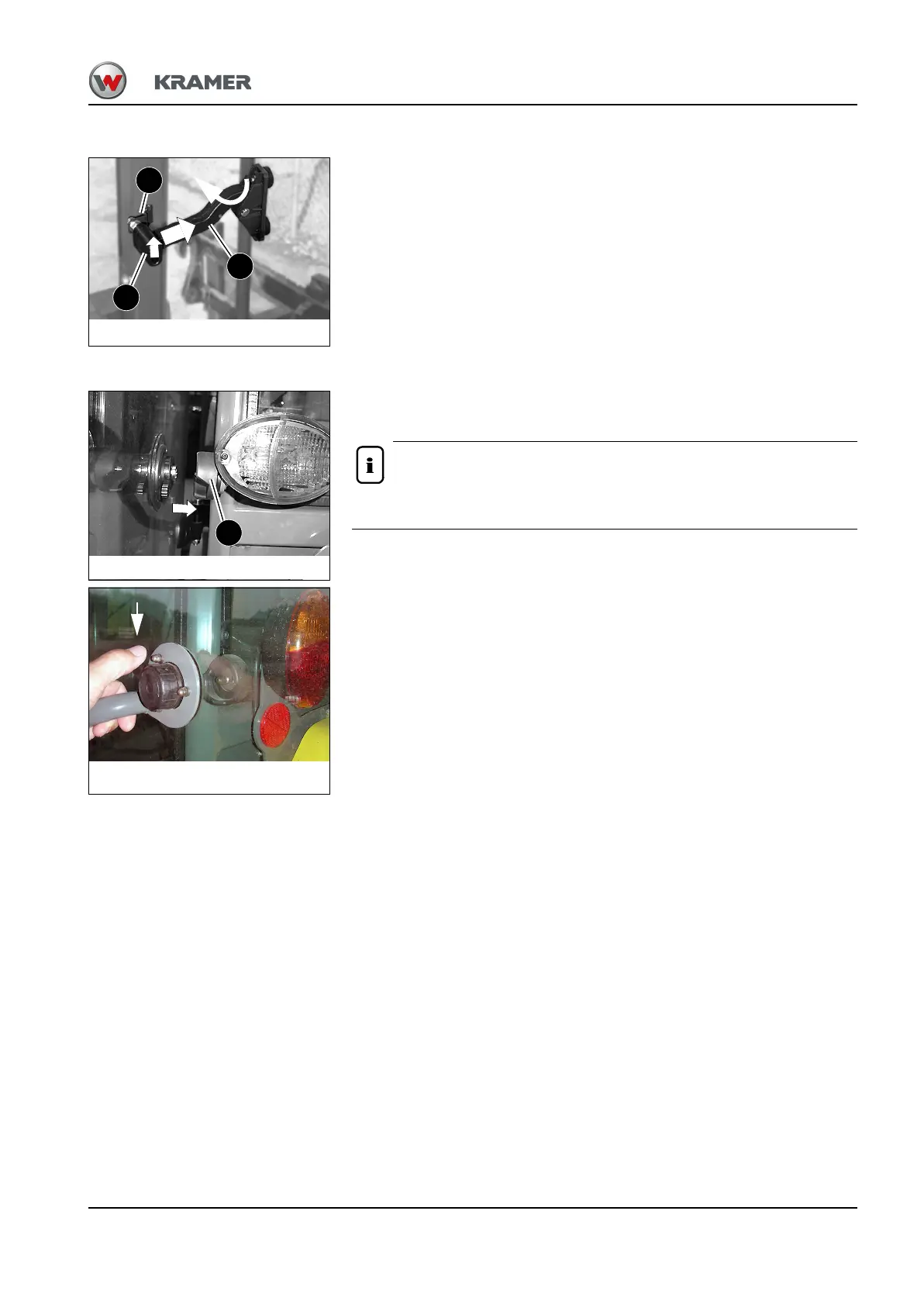

Fig. 37 : Fully opening the side window
A
b
a
Fig. 38 : Locking the open side window
B
Fig. 39 : Unlocking the open side window
