3 Operation
Lock for loader unit control lever and mechanical locking of 3rd control circuit (standard)
Risk of accidents due to unlocked control levers!
In order to avoid risk of accidents during machine travel on public roads:
☞Lock control lever 11 (loader unit) against unintentional operation
☞Lock control lever 12 (3rd control circuit/quickhitch) against unintentional
operation
☞After installing an attachment on the quickhitch, always secure the 3rd
control circuit against unintentional operation
Secure control lever 11 (loader unit) and control lever 12 (3rd control circuit for quickhitch)
against unintentional actuation during machine travel on public roads.
☞Secure control lever 11 (loader unit)
• Push control lever 11 down vertically in neutral position
➥ The control lever is locked in this position and can no longer be moved
➥ The loader unit is secured against unintentional operation
☞Secure control lever 12 (3rd control circuit)
• Move control lever 12 to the centre position
• Press lock sleeve A on control lever 12 downward into the detent
(see arrow )
➥ Control lever 12 is locked in this position
➥ The 3rd control circuit is secured against unintentional operation
11

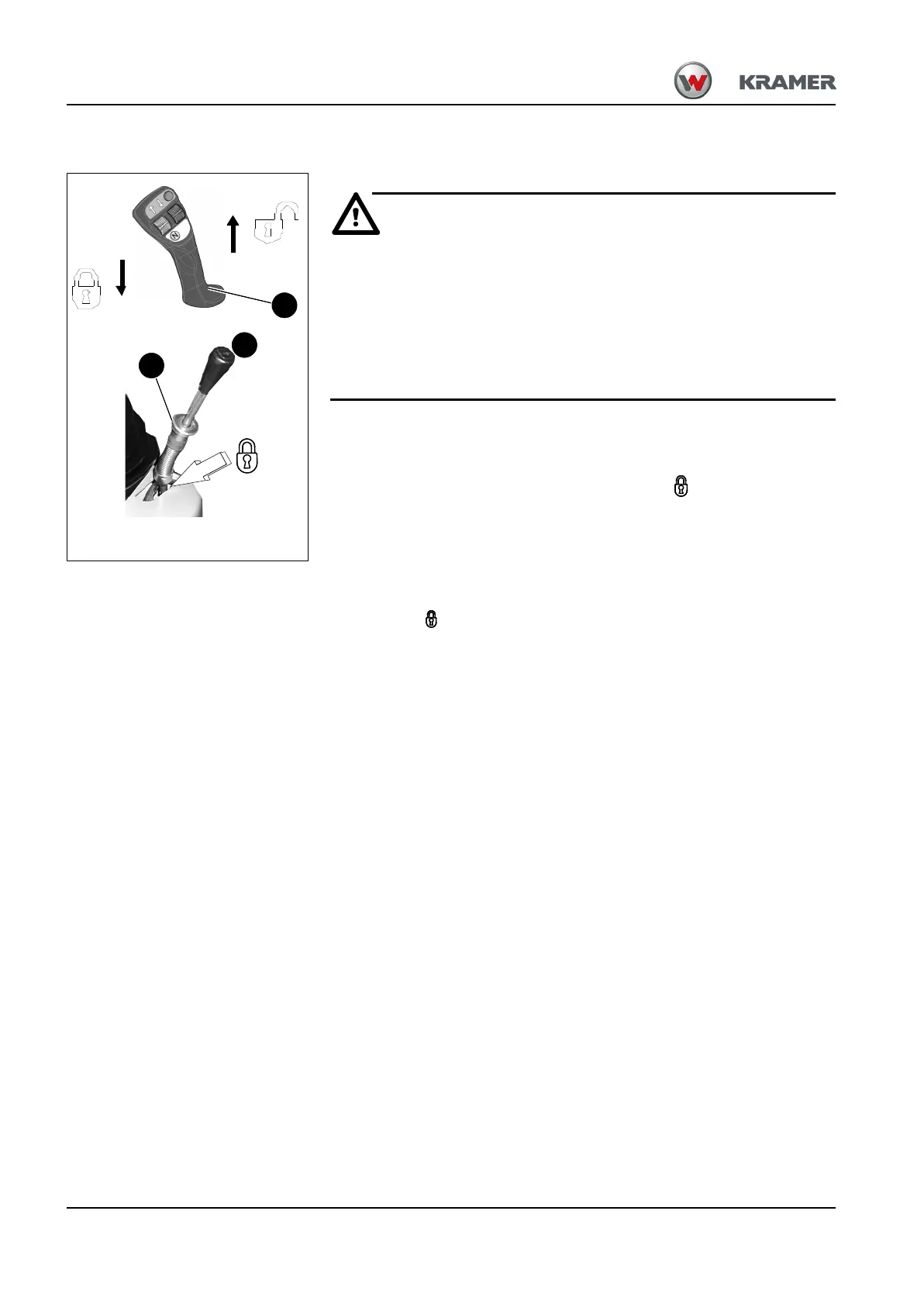

Fig. 64 : Lock for control levers
A
12
