Setting ARC Mode
This section contains information on setting ARC mode using webpages. For information on
setting ARC mode using front panel buttons, see Operating in ARC Mode on page 17.
To ARC-Enable an HDMI output:
1. In the Navigation pane, click Switching.
The Switching page appears (Figure 18).
2. Select Audio break away tab.
The Audio-follow-video tab is displayed (Figure 18).
3. Check the ARC check boxes (under the Audio Outputs column) to enable the device to
accept audio signals from the selected outputs.
When in the ARC mode, the output buttons of the selected outputs illuminate.
For example, Output 1, 6, 7 and 8 are checked, therefore they are ARC-enabled so they
can receive ARC signals from their connected acceptors.

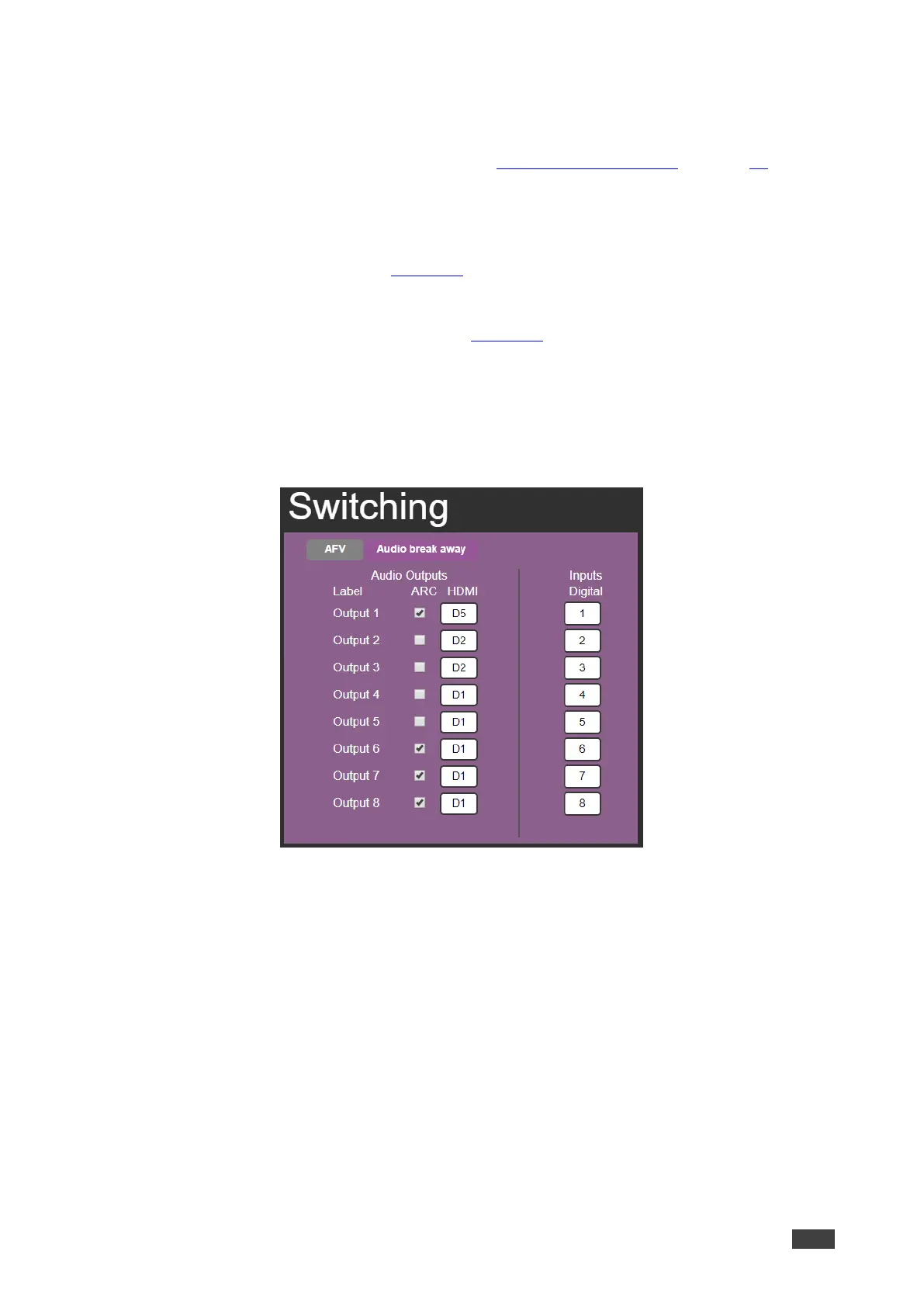

Figure 22: Switching Page –ARC-Enabled Outputs
