Switching Audio in Breakaway Mode
This section contains information on switching using webpages. For information on switching
using front panel buttons, see Routing Signals on page 14.
In Breakaway mode, the HDMI embedded audio is switched separately from the video signal.
You can switch a digital audio input to a digital audio output independently. If HDMI input port
and HDMI output port ARC mode are enabled, you can switch a selected HDMI output port
ARC to any HDMI input port ARC.
To switch an audio input to an audio output in Breakaway mode:
1. In the Navigation pane, click Switching.
The Switching page appears (Figure 18).
2. Select the Audio break away ( ) tab.
The Audio break away tab is displayed:

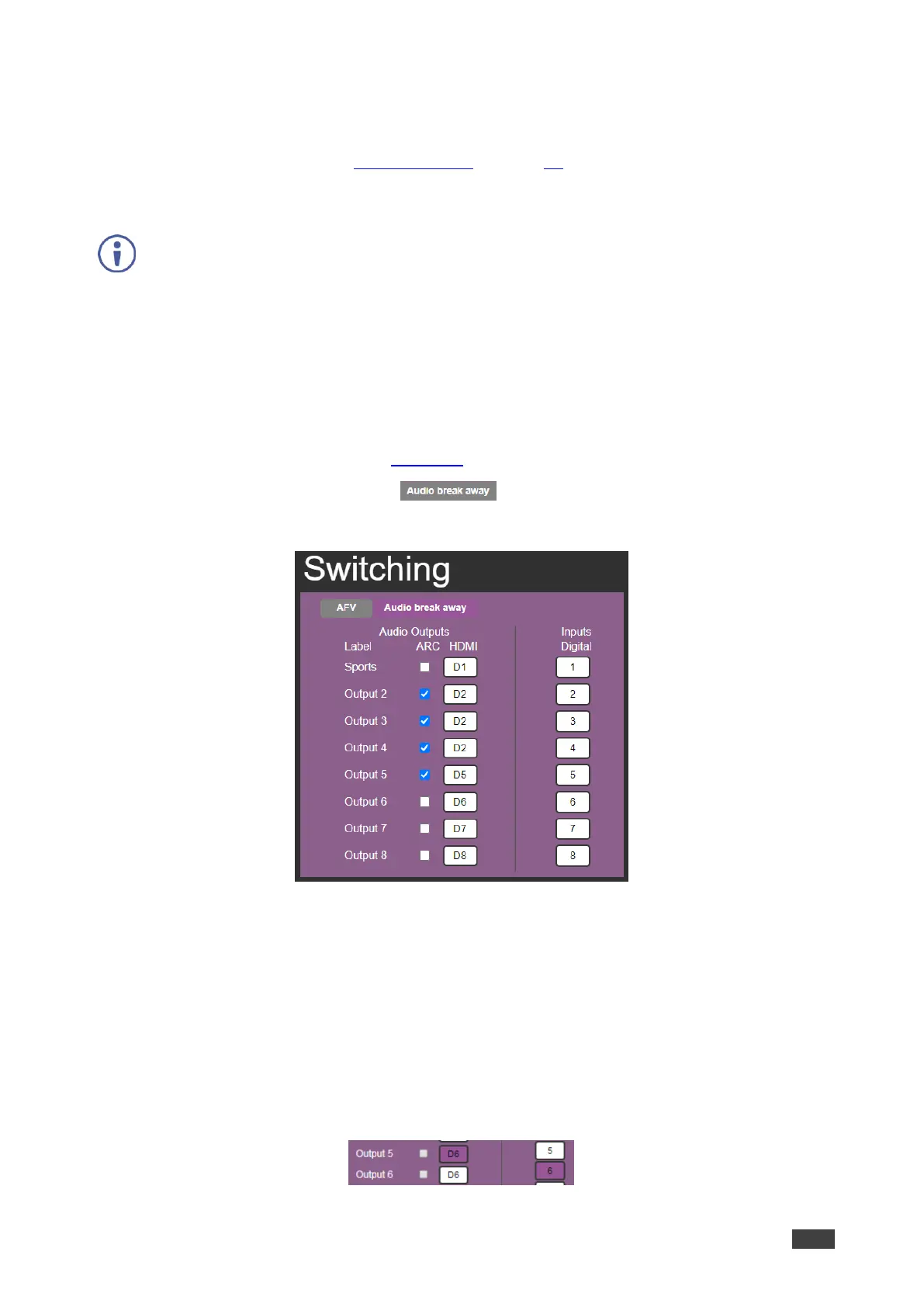

Figure 26: Switching page – Breakaway Mode
3. Click an HDMI button (under the Audio Outputs column).
The selected button changes color to purple.
4. Click a Digital Input button.
The selected button changes color to purple.
EXAMPLE:
Digital Output 5 is switched to D6.
Figure 27: Switching Page – Switching audio signals in the Breakaway Mode
