Switching a Pattern to an Output
This section contains information on switching a pattern to an output using webpages. For
information on switching a pattern to an output using front panel buttons, see Routing a
Pattern to an Output on page 19.
To switch a pattern to an output:
1. In the Navigation pane, click Switching.
The Switching page appears (Figure 18).
2. Select the AFV tab.
The Audio-follow-video tab is displayed (Figure 18).
3. Select the Patterns ( ) tab.
The pattern buttons appear:

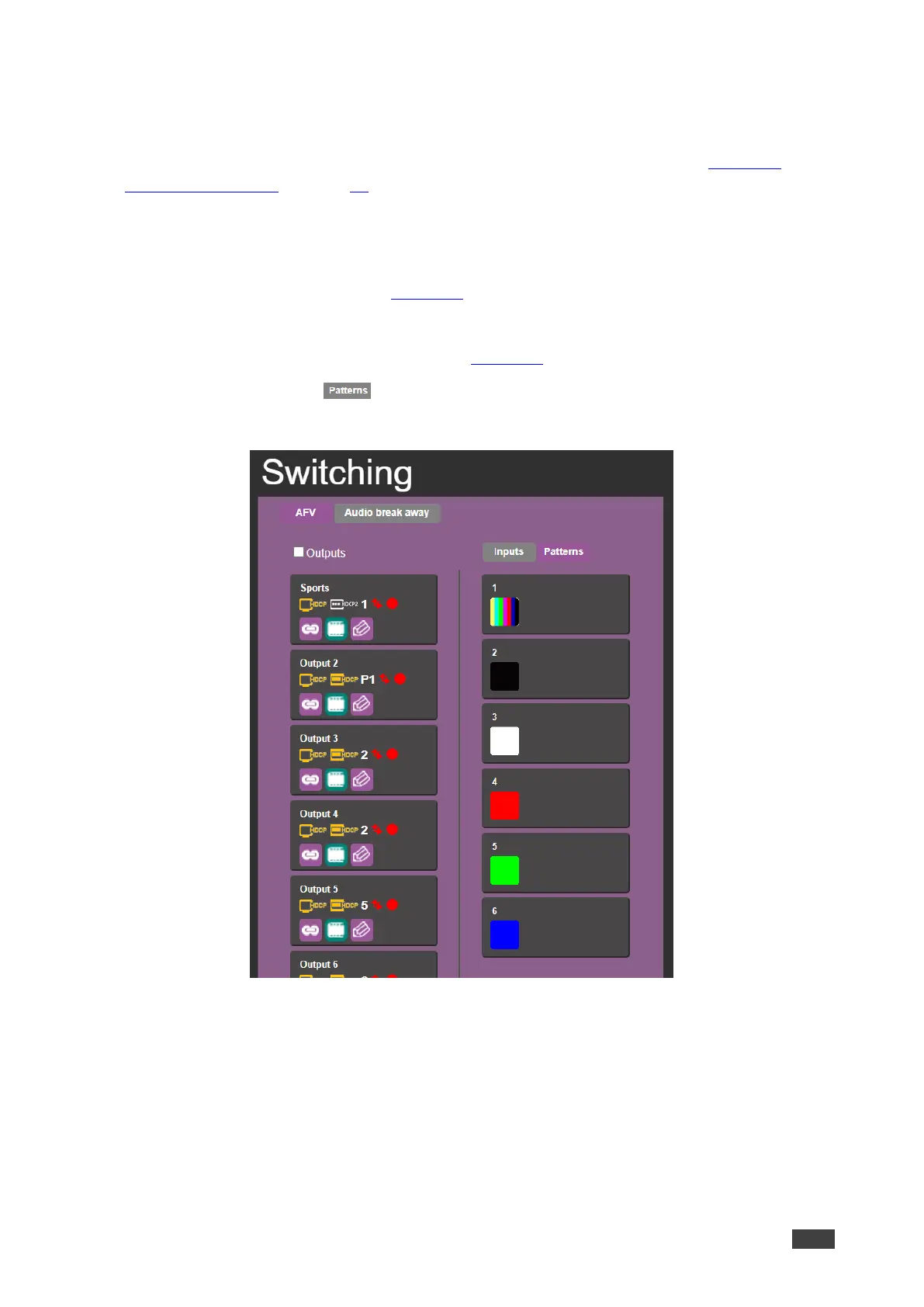

Figure 25: Switching page with pattern buttons on Right
4. Click one or more output buttons or check the Outputs box to select all the outputs.
The selected buttons change color to purple.
5. Click a pattern button. The pattern button changes color to purple.
The selected pattern is switched to the selected output(s).
