KTM 690 SMC R 2014 User Manual

13 WHEELS, TIRES 107
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 70)
–
Remove the rear wheel. x ( p. 103)
102004-10
Main work
–
Check bearing

.
» If the bearing is damaged or worn:
–
Replace the bearings. x
–
Check rubber dampers

of the rear hub for damage and wear.
» If the rubber dampers of the rear hub are damaged or worn:
– Change all rubber dampers in the rear hub.
102005-10

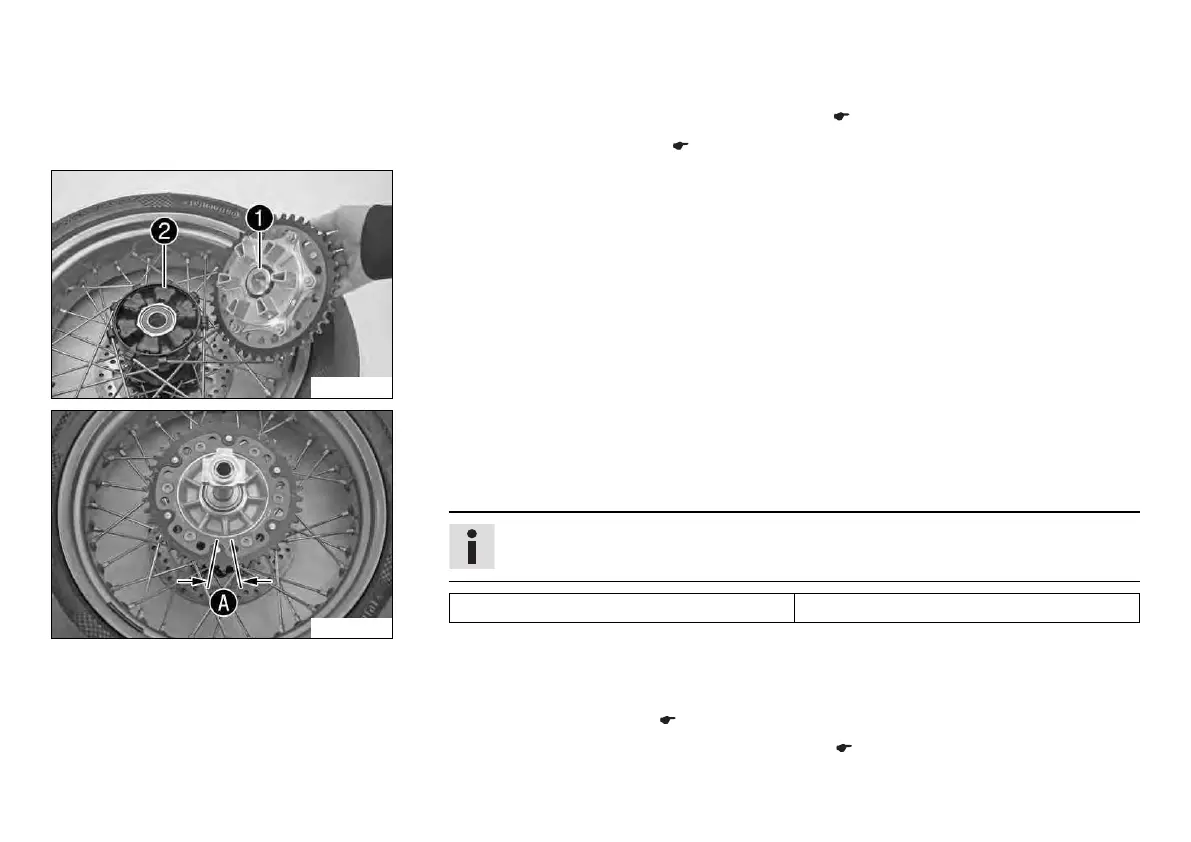

– Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert the
wheel spindle in the hub.
–
To check play

, hold the rear wheel tight and try to rotate the rear sprocket with your
hand.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear wheel ≤ 5 mm (≤ 0.2 in)
»
If play

is larger than the specified value:
– Change all rubber dampers in the rear hub.
Finishing work
–
Install the rear wheel. x ( p. 104)
– Take the motorcycle off of the rear wheel stand. ( p. 71)

KTM 690 SMC R 2014 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Fuel System	Electronic fuel injection
Lubrication	Forced oil lubrication with 2 oil pumps
Transmission	6-speed
Final Drive	Chain
Subframe	Aluminum
Rear Suspension	WP monoshock
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Tires Front	120/70 ZR17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Tank Capacity	12 L
Starter	Electric starter
Power	67 hp
Cooling	Liquid cooled
Primary Drive	Gear
Frame	Steel trellis frame
Handlebar	Aluminum
Front Suspension	WP USD 48 mm
Front Brake	Brembo 4-piston fixed caliper, brake disc Ø 320 mm
Rear Brake	Single disc, 240 mm
ABS	Bosch 9M+ two-channel ABS (disengageable)
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Chain	X-ring 5/8 x 1/4"
Clutch	Wet multi-disc clutch, hydraulically operated
