KTM 690 SMC R 2014 User Manual

10 TUNING THE CHASSIS 68

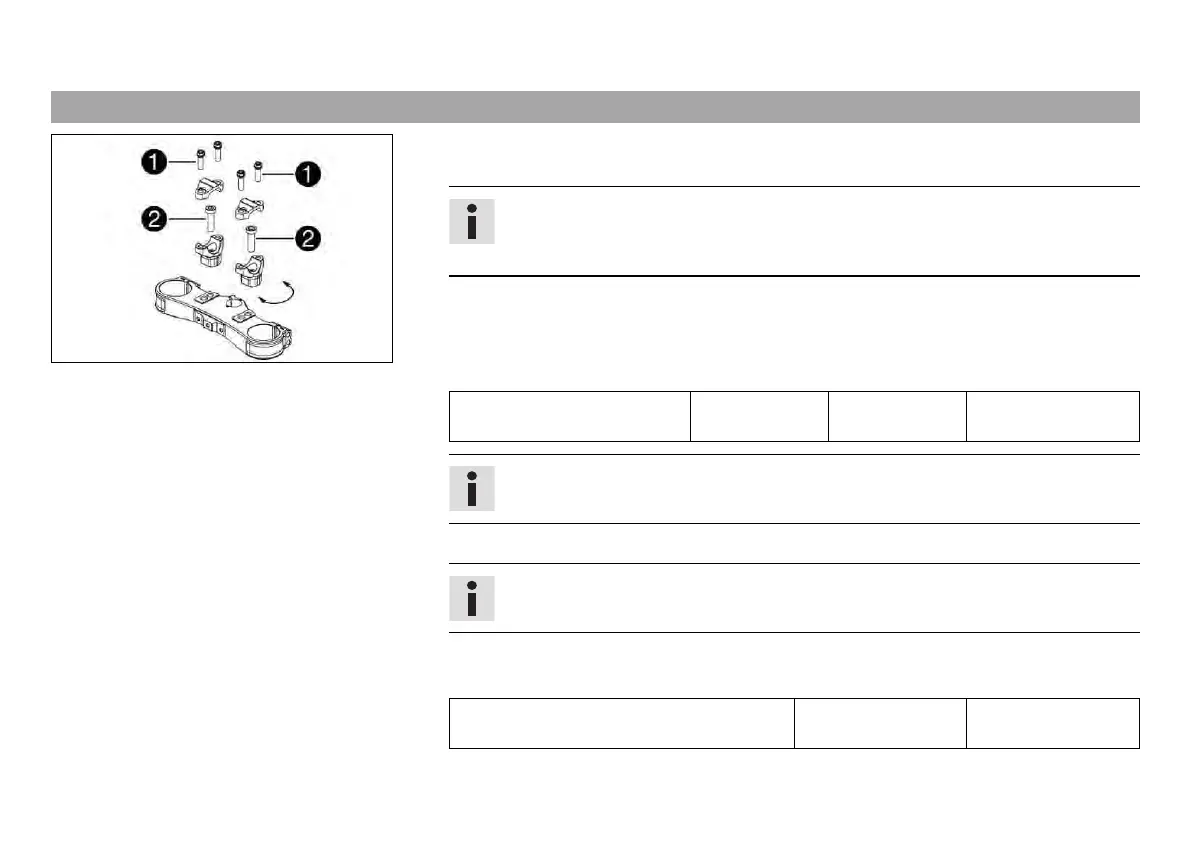

10.9 Adjusting the handlebar position x
601875-10
–
Remove the four screws

. Remove the handlebar clamps. Take off the handlebar and
set it aside.
Info
Cover the motorcycle and attachments to protect them from damage.
Do not kink the cables and lines.
–
Remove the two screws

. Take off the handlebar holder.
– Move the handlebar holder to the desired position. Mount and tighten the two
screws

.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the handlebar holders evenly on the left and right.
– Position the handlebar.
Info
Ensure that the cables and lines are routed correctly.
–
Position the handlebar clamps. Mount and evenly tighten the four screws

.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)

KTM 690 SMC R 2014 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Bore x Stroke	102 mm x 84.5 mm
Compression Ratio	12.6:1
Fuel System	Electronic fuel injection
Lubrication	Forced oil lubrication with 2 oil pumps
Transmission	6-speed
Final Drive	Chain
Subframe	Aluminum
Rear Suspension	WP monoshock
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Tires Front	120/70 ZR17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Tank Capacity	12 L
Starter	Electric starter
Power	67 hp
Cooling	Liquid cooled
Primary Drive	Gear
Frame	Steel trellis frame
Handlebar	Aluminum
Front Suspension	WP USD 48 mm
Front Brake	Brembo 4-piston fixed caliper, brake disc Ø 320 mm
Rear Brake	Single disc, 240 mm
ABS	Bosch 9M+ two-channel ABS (disengageable)
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Chain	X-ring 5/8 x 1/4"
Clutch	Wet multi-disc clutch, hydraulically operated
