14 ELECTRICAL SYSTEM 119
102007-10

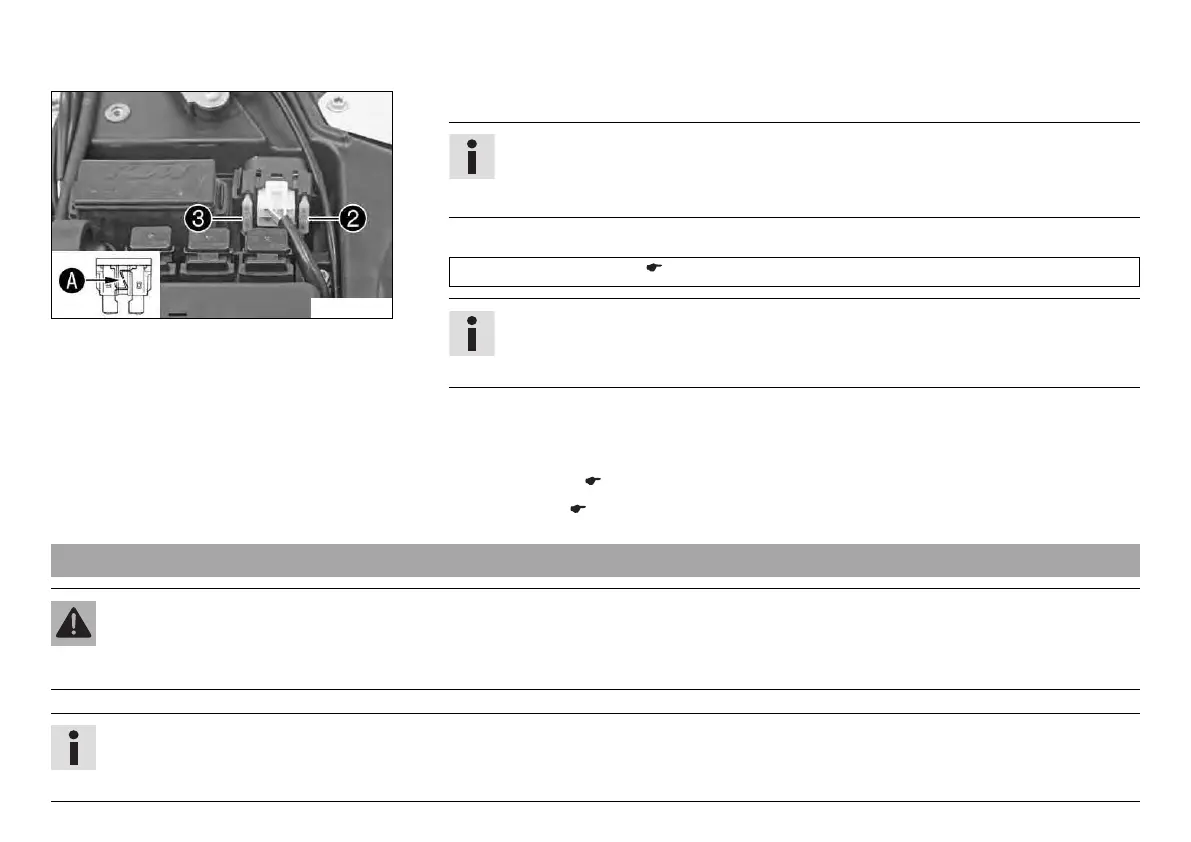

Remove a defective main fuse
with needle nose pliers.
Info
A defective fuse is indicated by a burned-out fuse wire
.
A reserve fuse
is located in the starter relay.
Install a new main fuse.
Fuse (58011109130) ( p. 173)
Info
Insert a new replacement fuse into the starter relay to have it available when
needed.
Check the functioning of the electrical equipment.
Mount the protection covers.
Finishing work
Mount the seat. ( p. 75)
Set the clock. ( p. 32)
14.5 Changing the ABS fuses
Warning
Fire hazardThe electrical system can be overloaded if the wrong fuses are used.
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
Two fuses for the ABS are located under the seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third
fuse, which protects the ABS control unit, is located in the fuse box.
