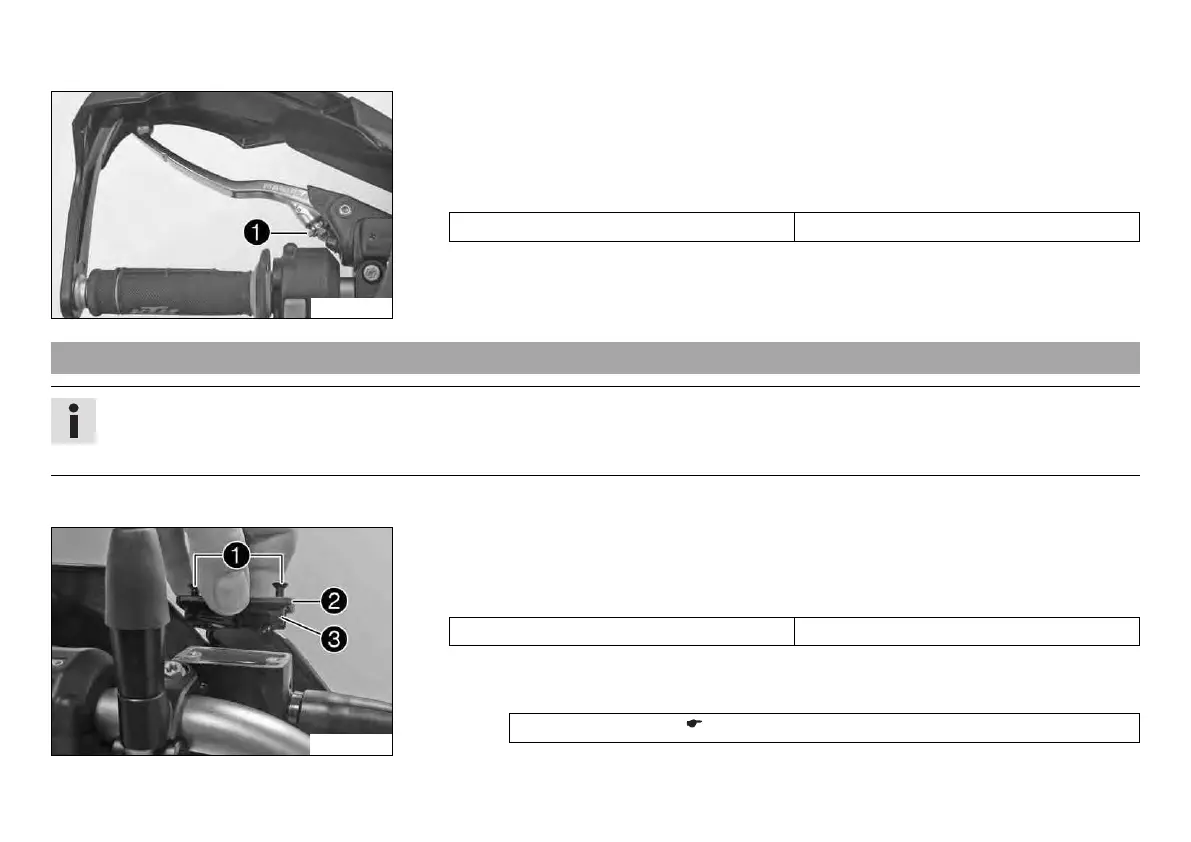

11 SERVICE WORK ON THE CHASSIS 87
102009-10
Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw
.
When adjusting the clutch lever, make sure to leave a minimum clearance to other parts
of the vehicle.
Guideline
Minimum clearance 5 mm (0.2 in)
11.20 Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
B01956-10
Remove screws
.
Remove cover
with membrane
.
Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the coolant does not meet specifications:
Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 183)
Position the cover with the membrane. Mount and tighten the screws.
