11 SERVICE WORK ON THE CHASSIS 74

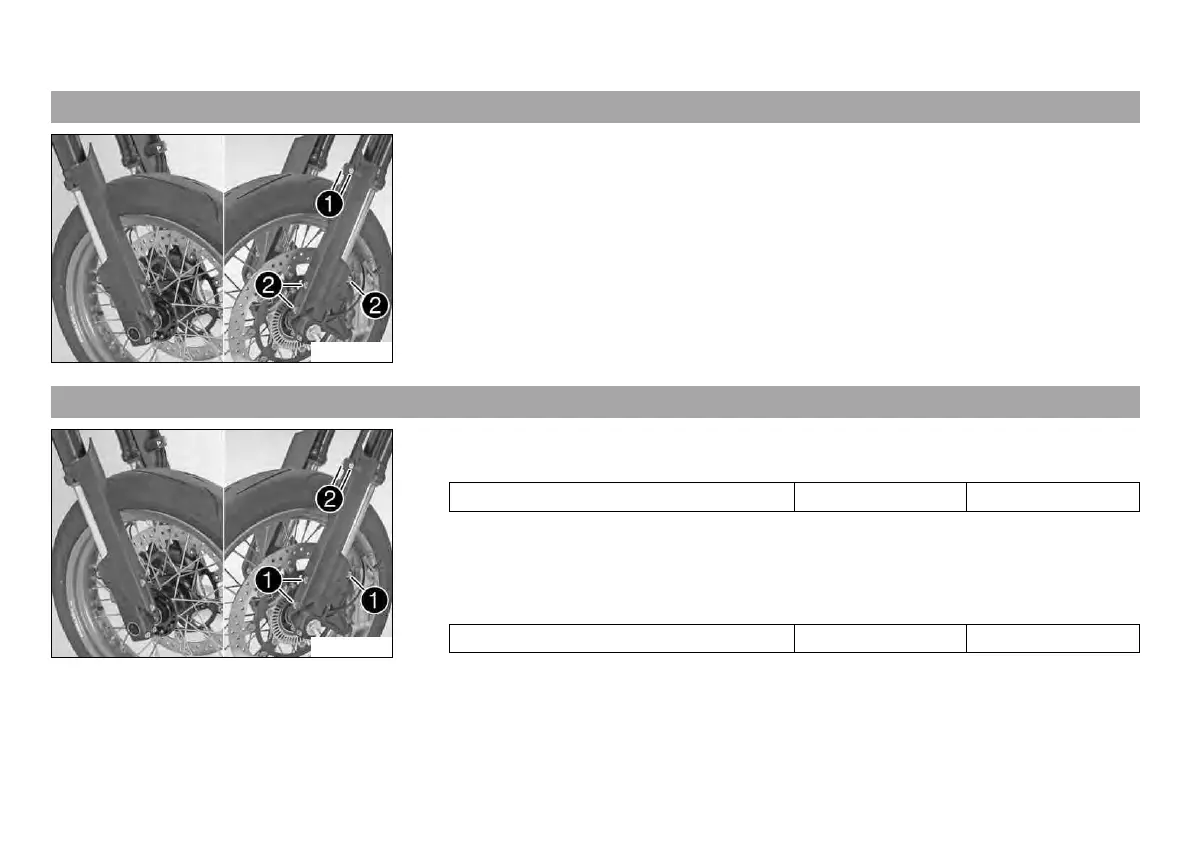

11.8 Removing the fork protector
101986-10
Remove screws
and take off clamp.
Remove screws
on left fork leg. Remove the fork protector.
Remove the screws on the right fork leg. Remove the fork protector.
11.9 Installing the fork protector
101986-11
Position the fork protection on the left fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Position the brake line and cable harness. Put the clamp on, mount and tighten
screws
.
Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
