11 SERVICE WORK ON THE CHASSIS 75

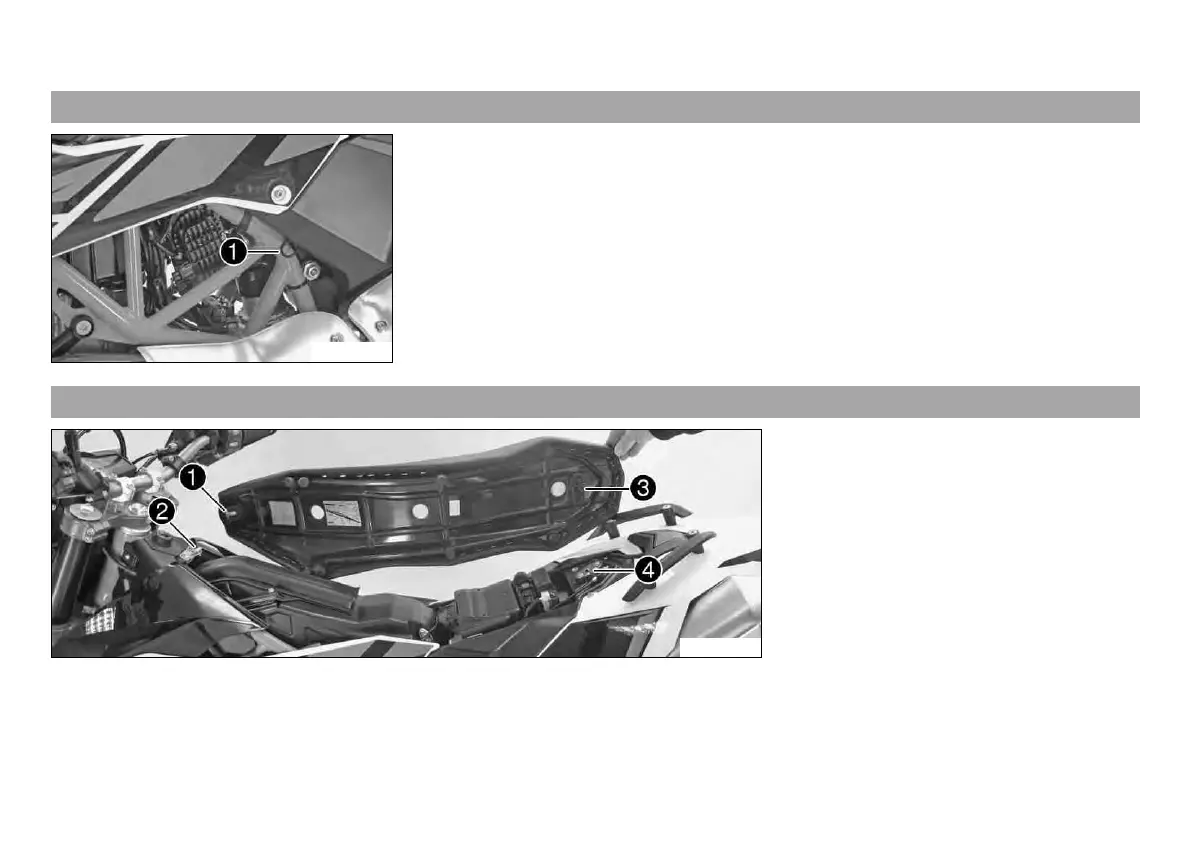

11.10 Removing the seat

101977-10

–

Pull on strap



and raise the rear of the seat at the same time.

– Pull back the seat and lift it off.

11.11 Mounting the seat

101988-10

–

Hook slot



of the seat onto screw



, press the rear downward and at the same time push it forward.

–

Push locking pin



into lock housing



and push the back of the seat down until the locking pin locks in place with an audible

click.

– Finally, check that the seat is correctly mounted.
