KTM 690 SMC R 2014 - 16 Tuning the Engine; Adjusting the Engine Characteristic

16 TUNING THE ENGINE 139
16.1 Adjusting the engine characteristic
Preparatory work
– Switch off the ignition by turning the ignition key to position OFF .
– Remove the seat. ( p. 75)
102019-10
Main work
–

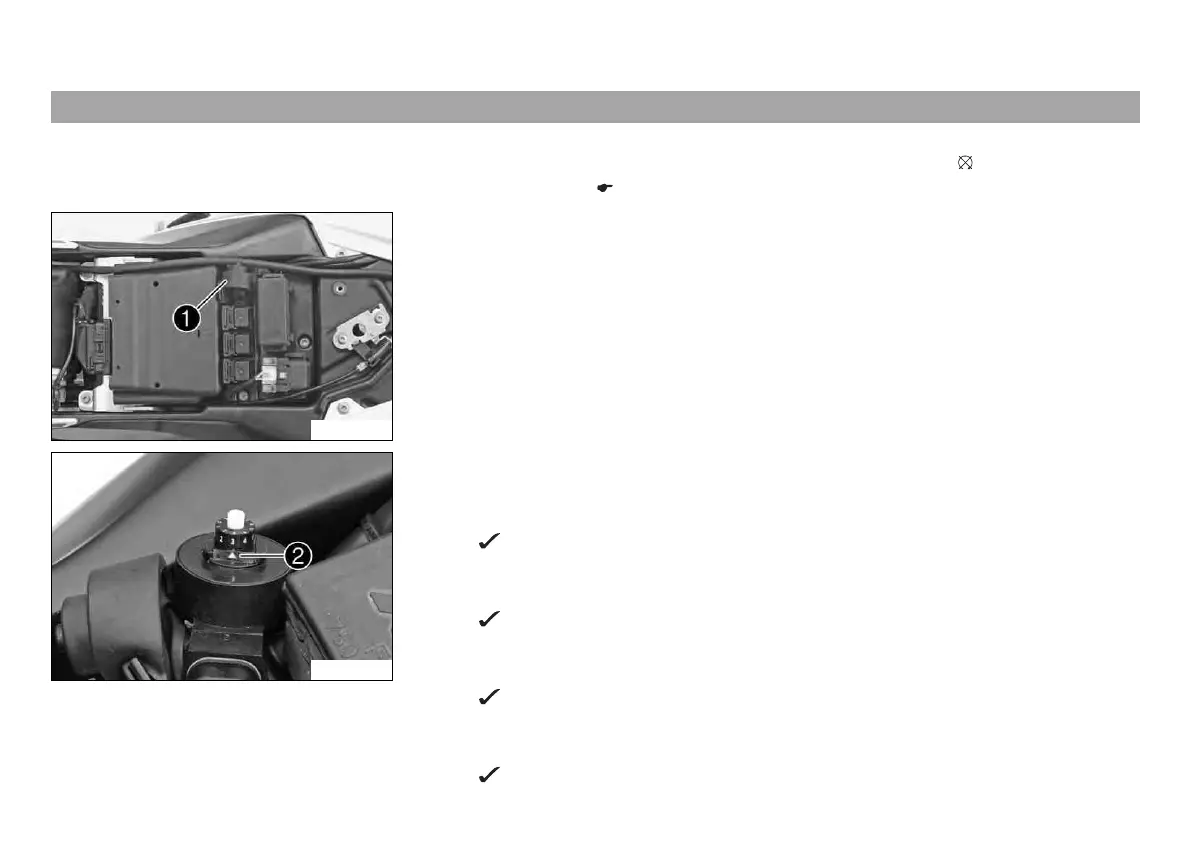

Pull the Map‑Select switch and holder

upward off of the retaining bracket.
– Pull the Map‑Select switch out of the holder.
601802-10
–
Turn the adjusting wheel until the desired digit is next to marking

.
Set the Map‑Select switch to Soft.
– Set the adjusting wheel to position 1.
Soft – reduced homologated peak performance for better driveability.
Set the Map‑Select switch to Advanced.
– Set the adjusting wheel to position 2.
Advanced – homologated performance with extremely direct responsiveness.
Set the Map‑Select switch to Standard.
– Set the adjusting wheel to position 3, 4, 5, 6, 7, 8 or 9.
Standard – homologated performance with balanced responsiveness.
Set the Map‑Select switch to poor fuel quality.
– Set the adjusting wheel to position 0.
Poor fuel quality – homologated performance is reduced in accordance with the
fuel quality, use for no more than 1 tank of fuel
