16 TUNING THE ENGINE 140
Position the MapSelect switch in the holder.
Slide the MapSelect switch with the holder downward onto the retaining bracket.
Finishing work
Mount the seat. ( p. 75)

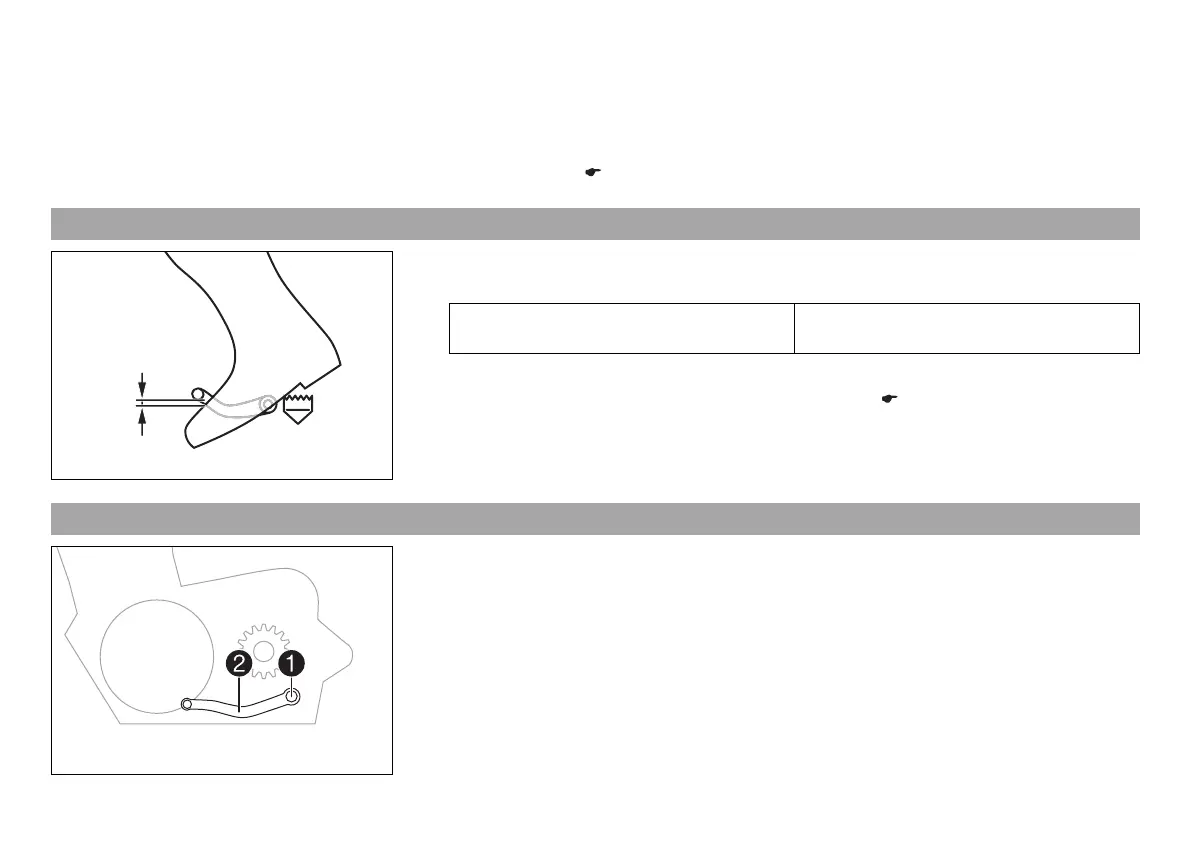

16.2 Checking the basic position of the shift lever
00
0
A
A
400692-10
Sit on the vehicle in the riding position and determine distance
between the upper
edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
Adjust the basic position of the shift lever. x ( p. 140)
16.3 Adjusting the basic position of the shift lever x
401950-12
Remove screw
and take off shift lever
.
