11 SERVICE WORK ON THE CHASSIS 84

401170-01

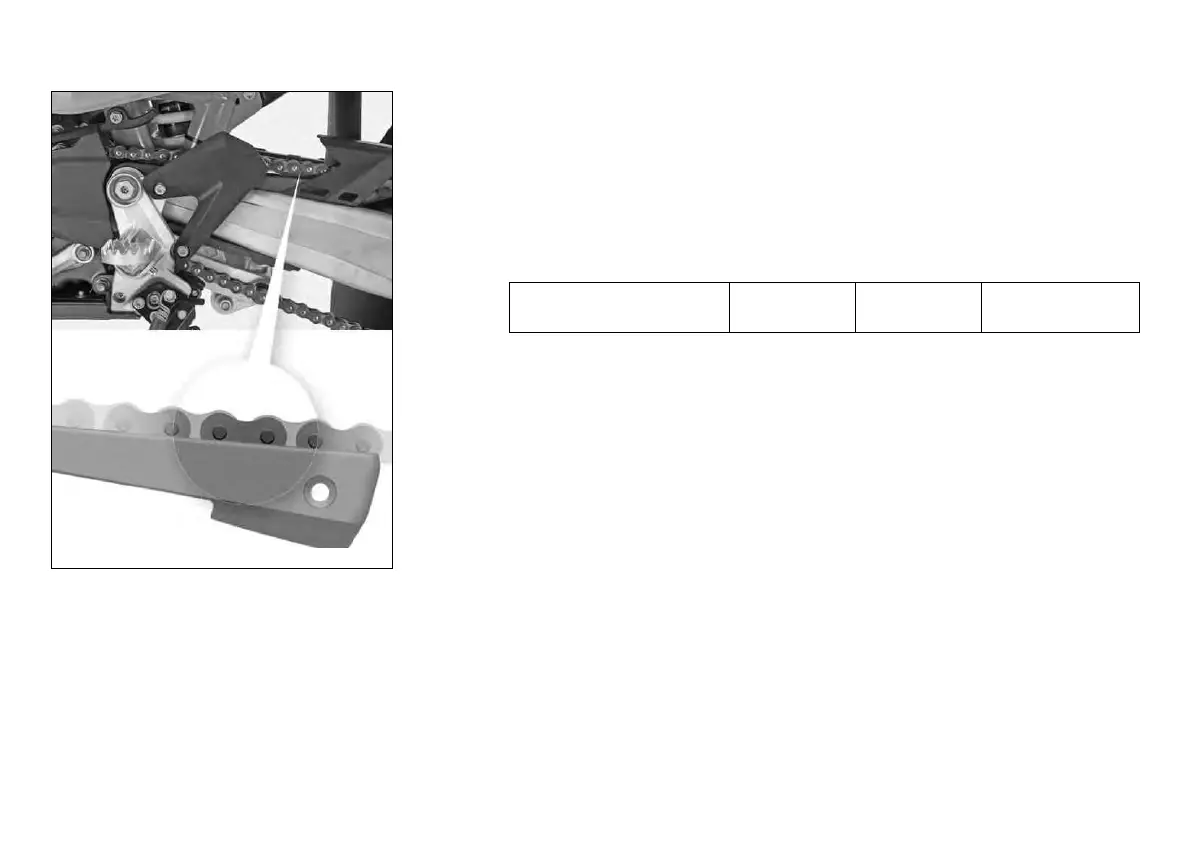

– Check the chain sliding guard for wear.

» If the lower edge of the chain pins is in line with or below the chain sliding guard:

–

Replace the chain sliding guard. x

– Check that the chain sliding guard is firmly seated.

» If the chain sliding guard is loose:

– Tighten the chain sliding guard.

Guideline

Screw, chain sliding

guard

M6 8 Nm

(5.9 lbf ft)

Loctite

243™
