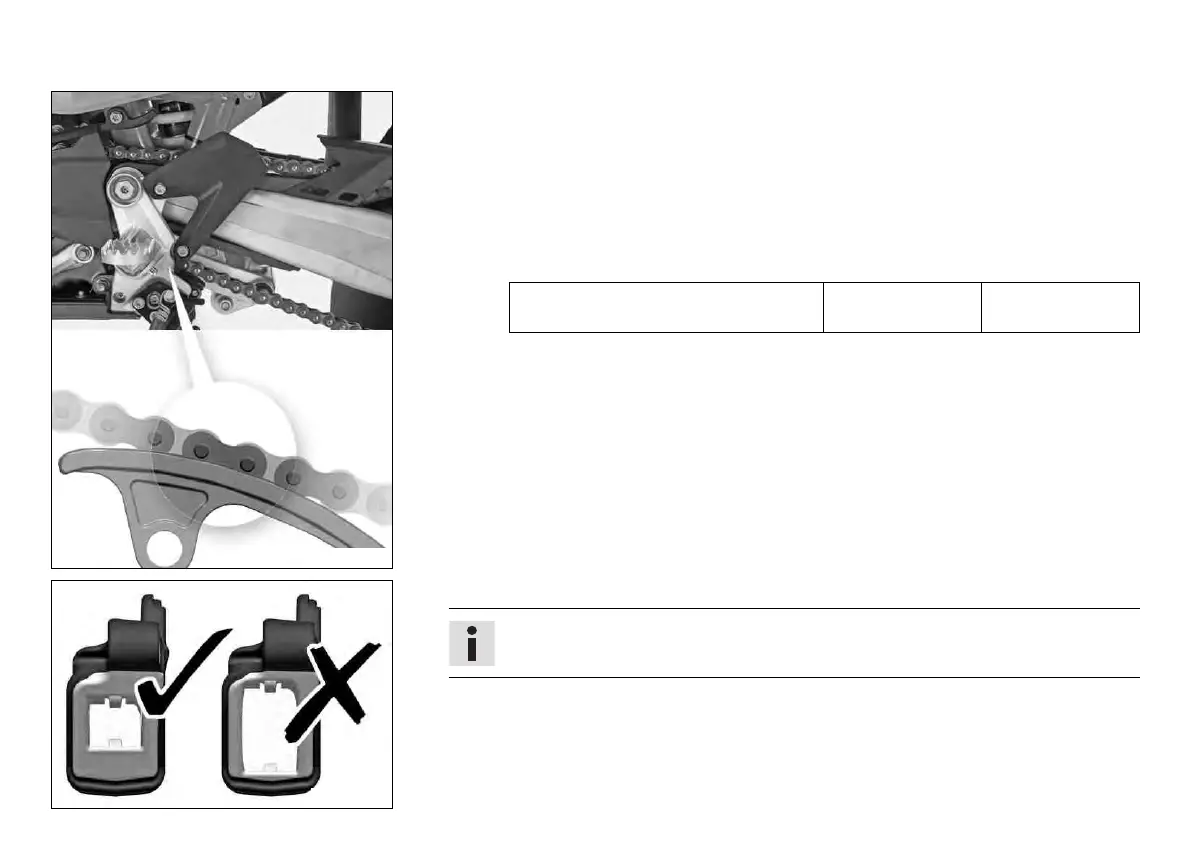

11 SERVICE WORK ON THE CHASSIS 85

401171-01

– Check the chain sliding piece for wear.

» If the lower edge of the chain pins is in line with or below the chain sliding piece:

–

Change the chain sliding piece. x

– Check that the chain sliding piece is firmly seated.

» If the chain sliding piece is loose:

– Tighten the chain sliding piece.

Guideline

Screw, chain sliding piece M8 15 Nm

(11.1 lbf ft)

400985-01

– Check the chain guide for wear.

Info

Wear is visible on the front of the chain guide.

» If the light part of the chain guide is worn:

–

Change the chain guide. x
