16 KTM POWERPACK, BATTERY CHARGER 99
C00815-10

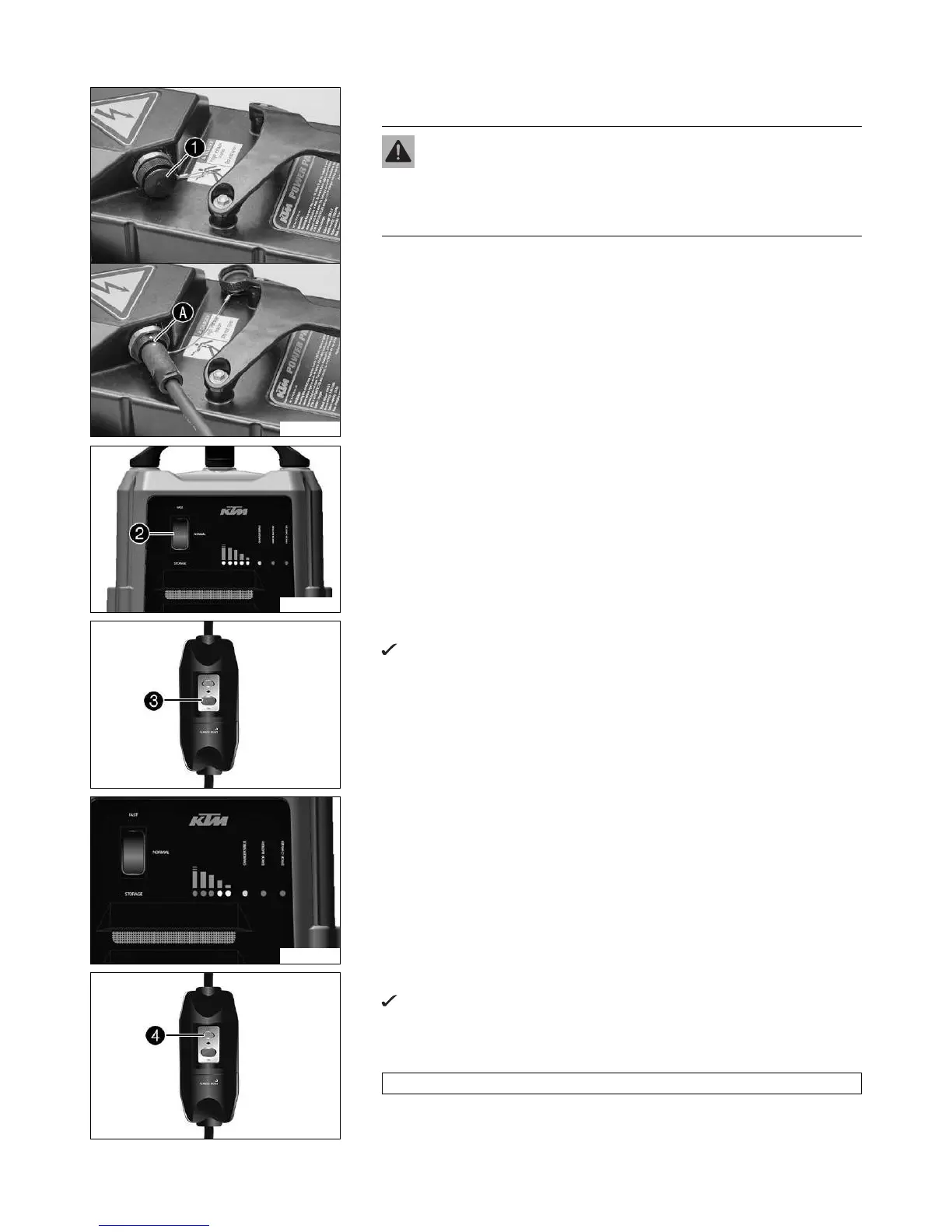

Main work
–
Remove the charging socket protection cap
.
Warning
Risk of injury The intrinsic safety of the KTM PowerPack can only be guar-
anteed if the original battery charger is used.
The KTM PowerPack may only be charged with the original battery charger.
– Only use the original battery charger to charge the KTM PowerPack.
–
Connect the battery charger to the KTM PowerPack. Observe plug markings
.
C00768-10
– Connect the power plug for the battery charger to the power supply socket.
–
Set the charging mode switch
to the Storageposition.
C00769-10
–
Switch on the battery charger using switch
.
The charging process starts automatically. The status indicator flashes during
the charging process.
C00854-01
– Monitor the charging level of the KTM PowerPack using the LEDs.
LED 1: 20%
LED 2: 40%
After the charging process is completed to a level of 50%, LEDs 1 and 2 light up
and the status indicator goes out.
C00769-11
–
Switch off the battery charger using switch
.
After several seconds, all LEDs on the battery charger go out.
– Disconnect the battery charger power plug from the power supply socket.
– Disconnect the charging cable from the KTM PowerPack.
Guideline
Pull on the structured part of the connector. Do not pull on the cable.
– Check the seal on the charging socket protection cap.
» If the seal is dirty:
To Next Page
