12 SERVICE WORK ON THE CHASSIS 53

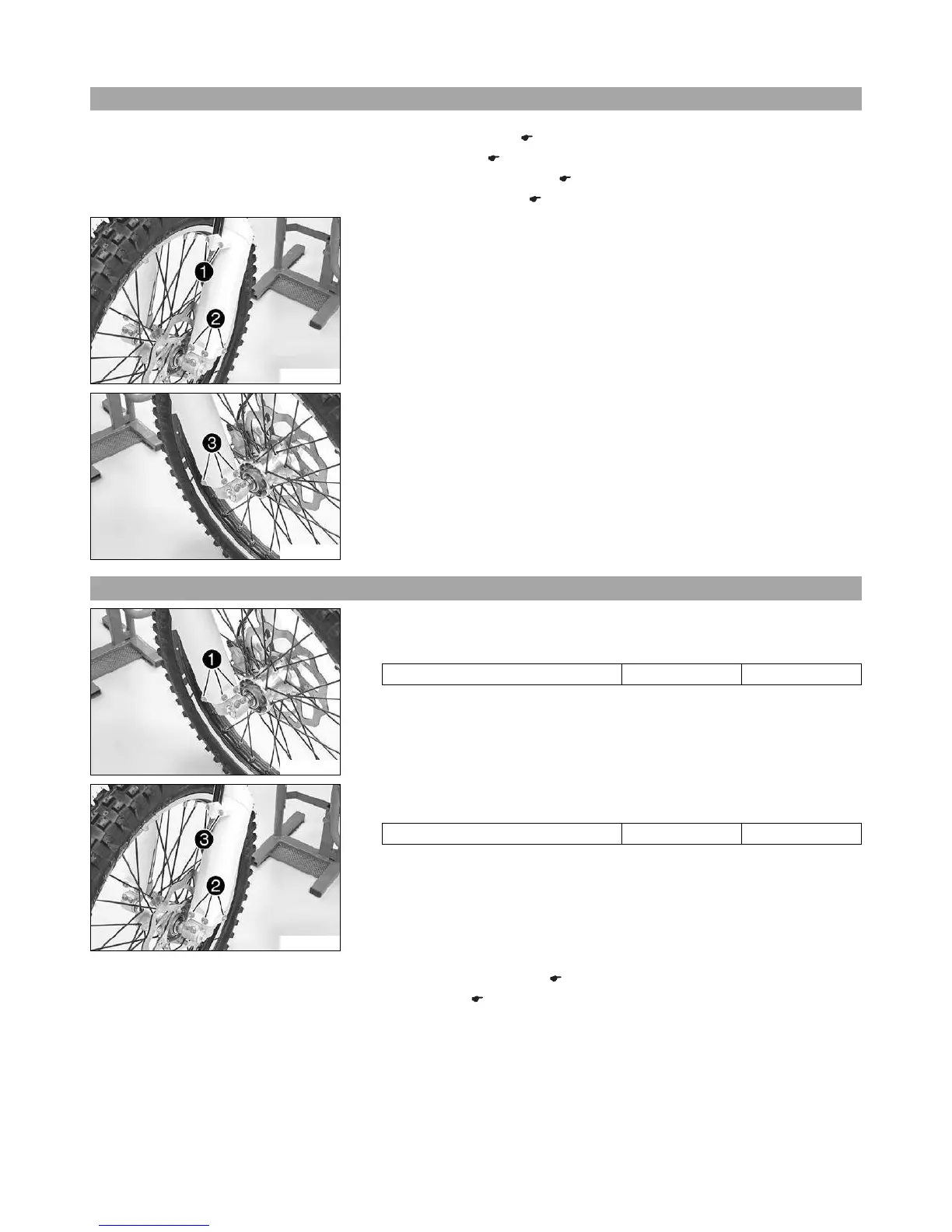

12.7 Removing the fork protector
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
C00801-10
Main work
–
Remove screws

. Take off the clamp.
–
Remove screws

on the left fork leg. Take off the fork protector.
C00802-10
–
Remove screws

on the right fork leg. Take off the fork protector.
12.8 Installing the fork protector
C00802-11
Main work
–
Position the fork protector on the right fork leg. Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
C00801-11
–
Position the fork protector on the left fork leg. Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
(Freeride E‑SX)
–
Position the brake line and clamp. Mount and tighten screws

.
(Freeride E‑XC)
– Position the brake line, wiring harness, and clamp. Mount and tighten
screws

.
Finishing work
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
