12 SERVICE WORK ON THE CHASSIS 54

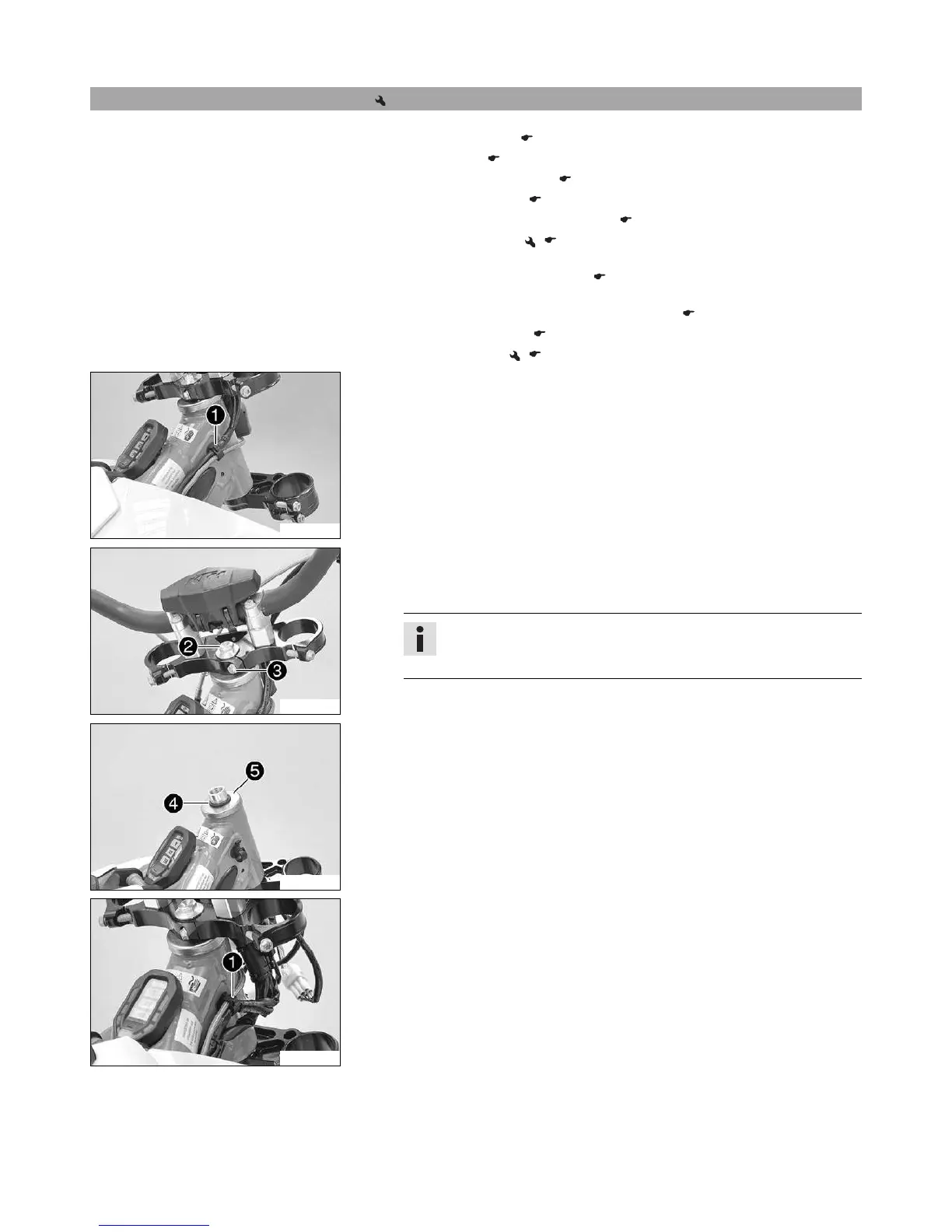

12.9 Removing the lower triple clamp
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
– Raise the motorcycle with the lift stand. ( p. 49)
– Remove the front wheel. ( p. 81)
(Freeride E‑SX)
– Remove the start number plate. ( p. 60)
(Freeride E‑XC)
– Remove the headlight mask with the headlight. ( p. 89)
– Remove the front fender. ( p. 61)
– Remove the fork legs. ( p. 50)
C00715-10
Main work
(Freeride E‑SX)
–
Open the holder

and detach the brake line.
C00694-10
–
Remove screw

.
–
Remove screw

.
– Take off the upper triple clamp with the handlebar and set it aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
C00693-10
–
Remove O-ring

and protective ring

.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
C00835-10
(Freeride E‑XC)
–
Open the holder

and detach the brake line.
