KTM Freeride E-SX - Installing the Lower Triple Clamp

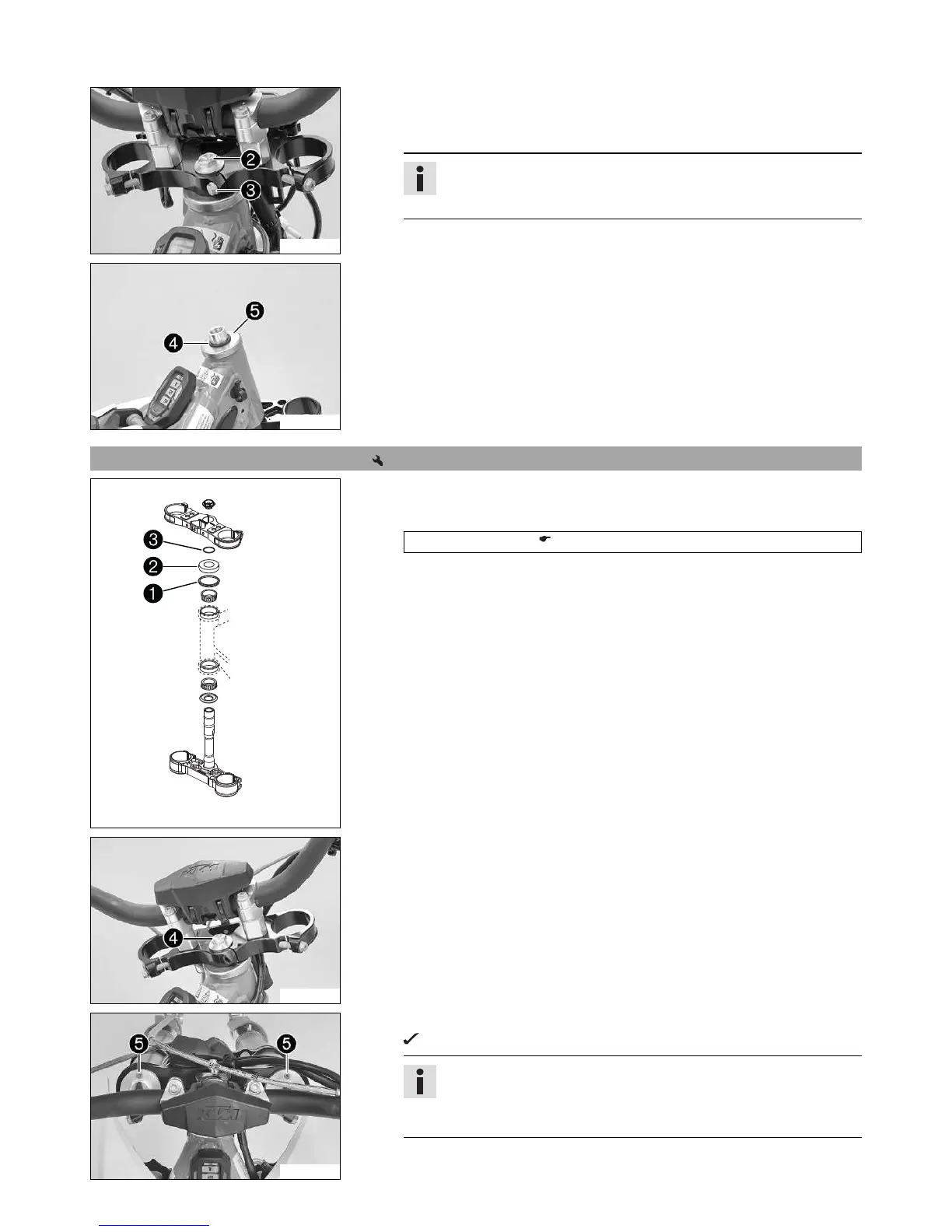

12 SERVICE WORK ON THE CHASSIS 55
C00836-10
–
Remove screw

.
–
Remove screw

.
– Take off the upper triple clamp with the handlebar and set it aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
C00693-10
–
Remove O-ring

and protective ring

.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
12.10 Installing the lower triple clamp
0
0
C00759-10
Main work
(Freeride E‑SX)
– Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease ( p. 119)
– Insert the lower triple clamp with the steering stem. Mount the upper steering
head bearing.
–
Check whether the upper steering head seal

is correctly positioned.
–
Push the protective ring

and O-ring

onto the steering stem.
C00695-10
– Position the upper triple clamp with the handlebar.
–
Mount screw

but do not tighten yet.
– Position the rear wheel brake line and wiring harness.
C00696-10
– Position the fork legs.
Bleeder screws

face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
