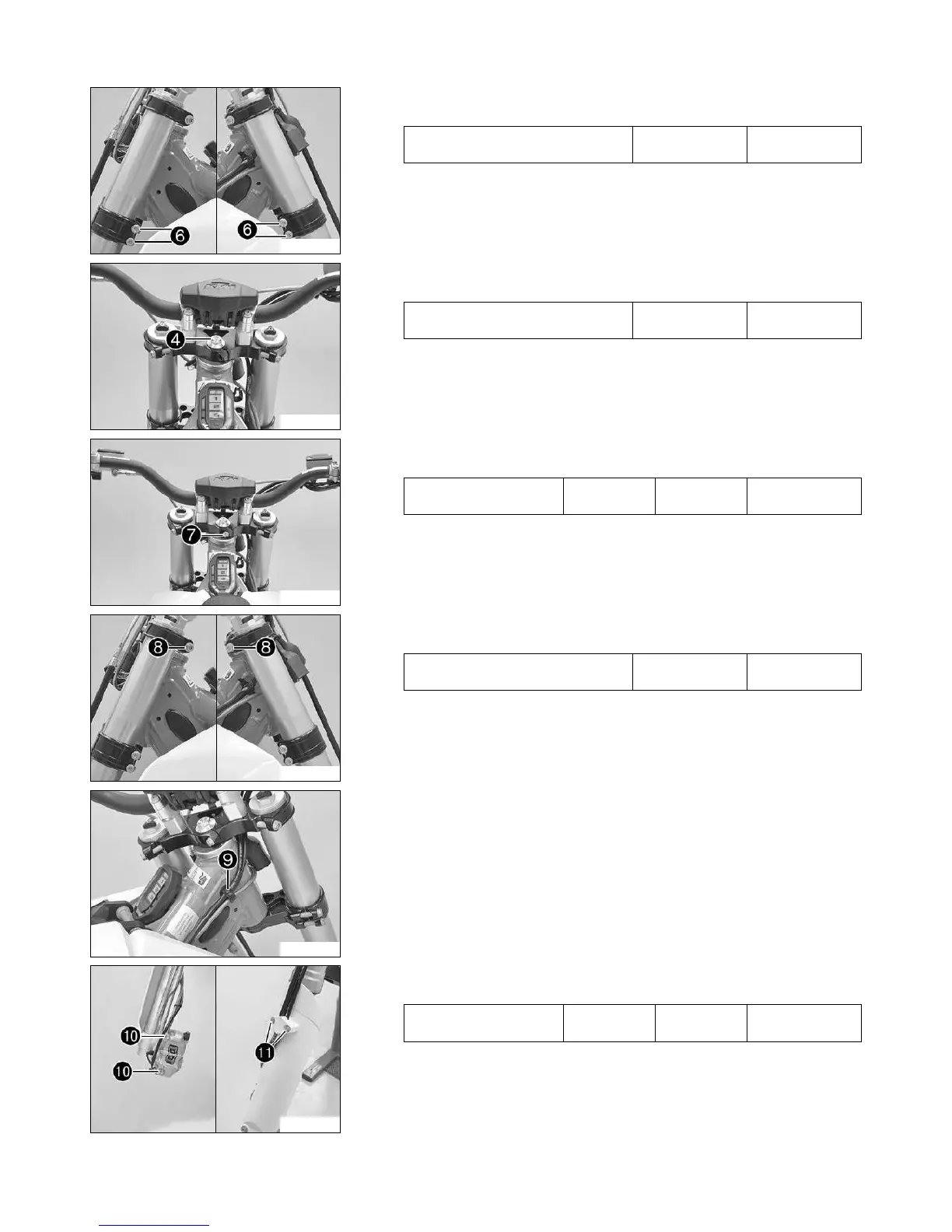

KTM Freeride E-SX - Page 58

12 SERVICE WORK ON THE CHASSIS 56
C00716-10
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
C00717-10
–
Tighten screw

.
Guideline
Screw, top steering head M20x1.5 12 Nm
(8.9 lbf ft)
C00718-10
–
Mount and tighten screw

.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
C00716-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
C00719-10
–
Attach the brake line and close the holder

.
C00837-10
–
Position the brake caliper. Mount and tighten screws

with the spacers.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws

.
