KTM Freeride E-SX - Checking the Rear Brake Linings

13 BRAKE SYSTEM 78
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Warning
Danger of accidents Unsuitable brake fluid damages the brake system.
DOT 5 brake fluid attacks seals and brake lines. DOT 5 brake fluid is silicone-based and purple in color.
– Do not use DOT 5 brake fluid.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, cleaning agents, brake fluid etc. properly and in compliance with the applicable regulations.
Info
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
– Check the rear brake linings. ( p. 78)
C00728-10

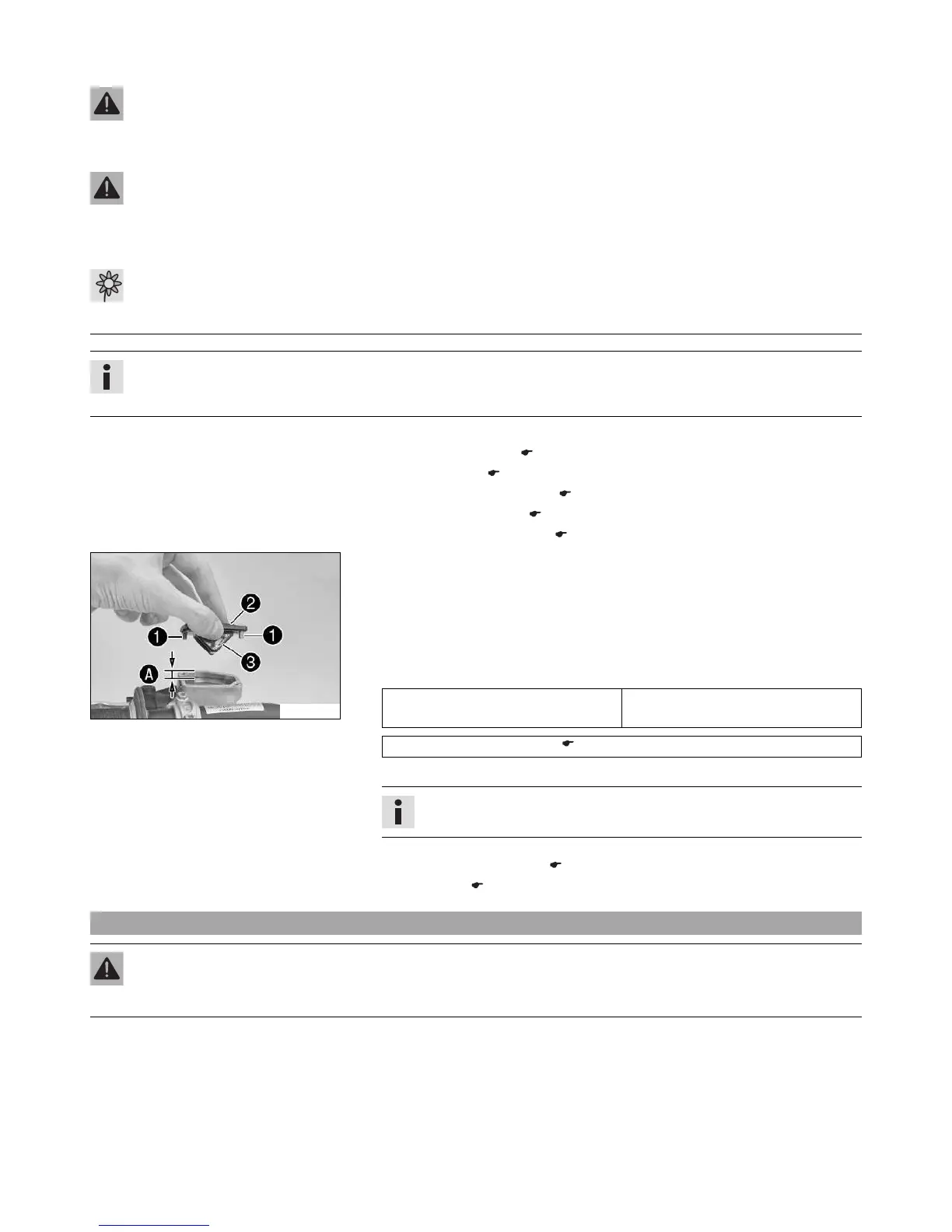

Main work
– Move the brake fluid reservoir attached to the left of the handlebar to a horizontal
position.
–
Remove screws

.
–
Remove cover

with membrane

.
–
Add brake fluid to level

.
Guideline
Level

(brake fluid level below con-
tainer rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 118)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with water.
Finishing work
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
13.14 Checking the rear brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
