14 WHEELS, TIRES 85
14.7 Checking the spoke tension
Warning
Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct. (Your authorized KTM workshop will be glad to help.)
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
400694-01
Main work

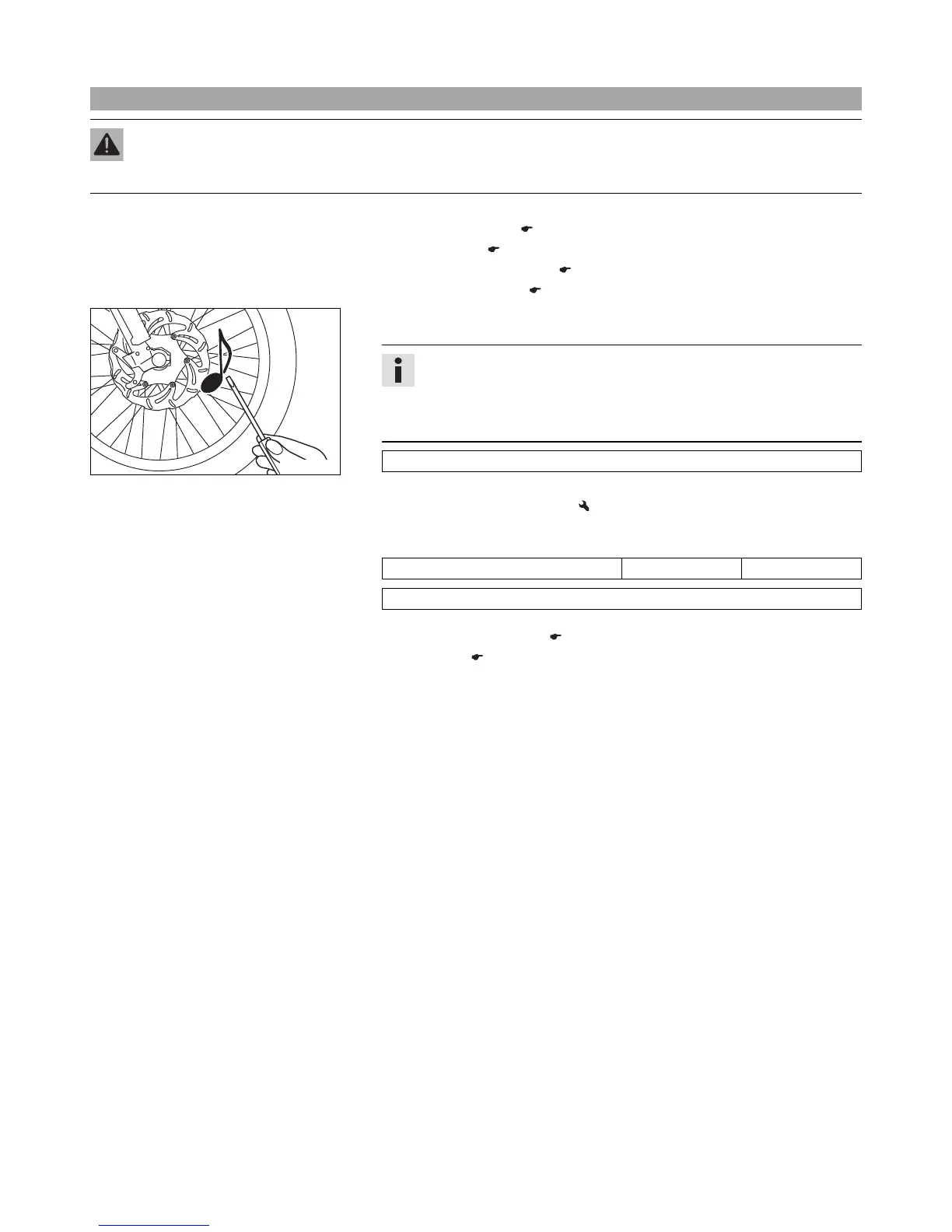

– Briefly strike each spoke with the tip of a screwdriver.
Info
The tone frequency depends on the length of the spoke and the spoke diam-
eter.
If spokes of equal length and diameter vibrate with a different tone, this is
an indication that the spoke tensions differ.
You should hear a high note.
» If the spoke tension varies:
– Correct the spoke tension.
– Check the spoke torque.
Guideline
Spoke nipple M4.5 5 Nm (3.7 lbf ft)
Torque wrench with various accessories in set (58429094000)
Finishing work
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
