KTM Freeride E-SX - Installing the Fork Legs

12 SERVICE WORK ON THE CHASSIS 51

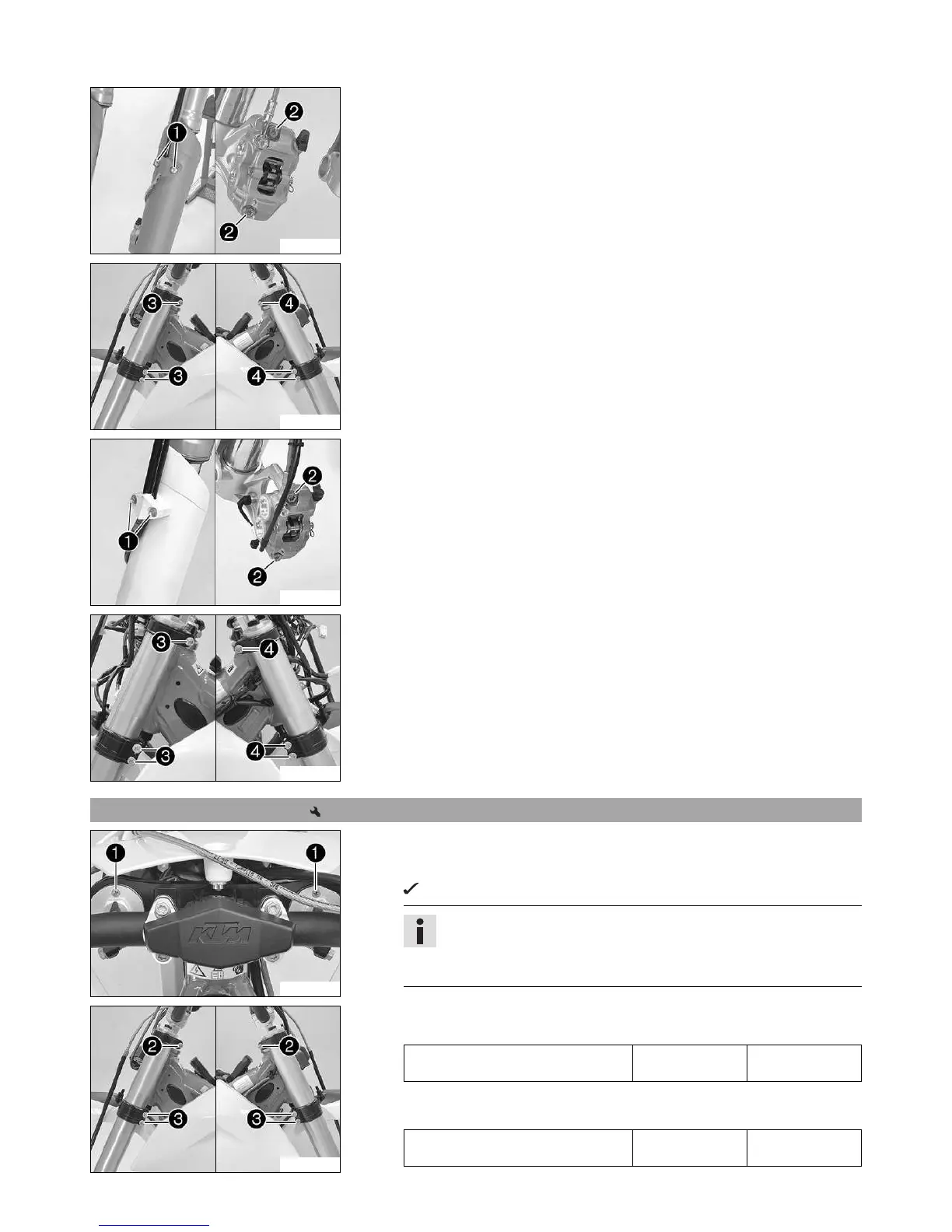

C00689-10
Main work
(Freeride E‑SX)
–
Remove screws

and take off the clamp.
–
Remove screws

and the spacers and take off the brake caliper.
– Allow the brake caliper and brake line to hang tension-free to the side.
C00690-10
–
Release screws

. Take out the left fork leg.
–
Release screws

. Take out the right fork leg.
C00797-10
(Freeride E‑XC)
–
Remove screws

and take off the clamp.
– Remove the cable tie(s) and detach the plug-in connector of the speedometer
sensor.
–
Remove screws

and the spacers and take off the brake caliper.
– Allow the brake caliper and brake line to hang tension-free to the side.
C00798-10
–
Release screws

. Take out the left fork leg.
–
Release screws

. Take out the right fork leg.
12.6 Installing the fork legs
C00687-10
Main work
(Freeride E‑SX)
– Position the fork legs.
Bleeder screws

face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
C00690-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
