KTM Freeride E-SX - Page 54

12 SERVICE WORK ON THE CHASSIS 52
C00775-10
–

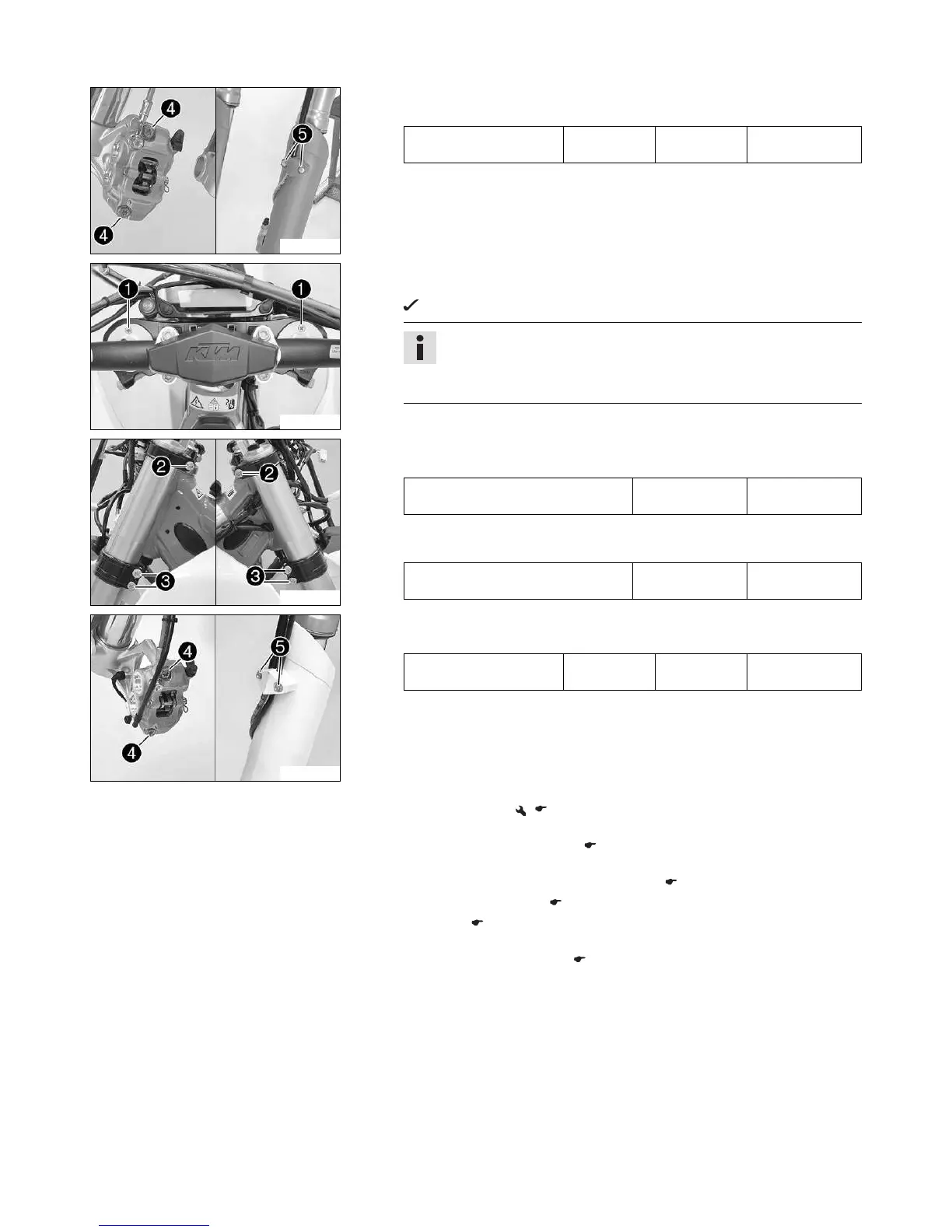

Position the brake caliper. Mount and tighten screws

with the spacers.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws

.
C00800-10
(Freeride E‑XC)
– Position the fork legs.
Bleeder screws

face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
C00798-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
C00799-10
–
Position the brake caliper. Mount and tighten screws

with the spacers.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws

.
– Connect the plug-in connector of the speedometer sensor and mount the cable
tie(s).
Finishing work
– Install the front wheel. ( p. 81)
(Freeride E‑SX)
– Install the start number plate. ( p. 61)
(Freeride E‑XC)
– Refit the headlight mask with the headlight. ( p. 90)
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
(Freeride E‑XC)
– Check the headlight setting. ( p. 92)
