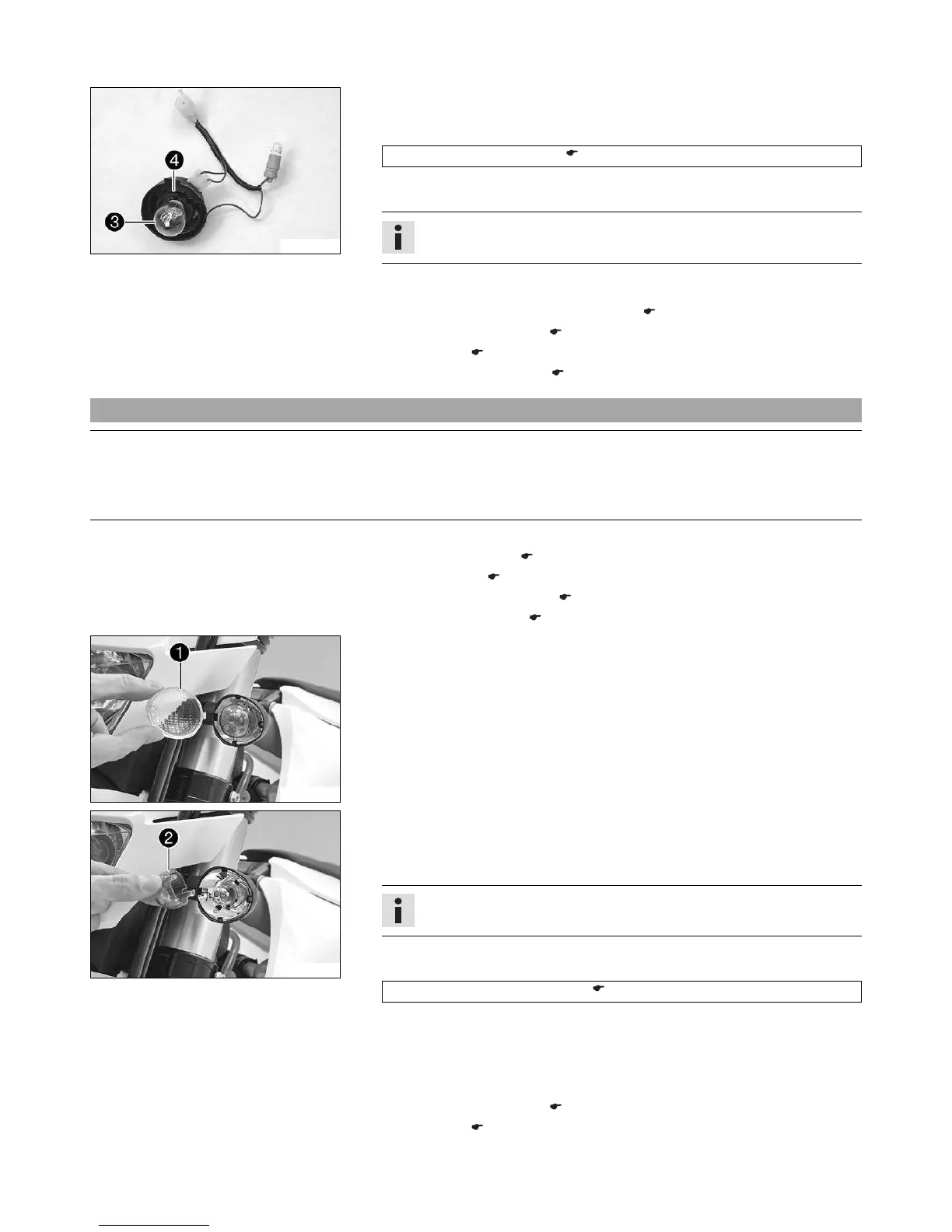

15 ELECTRICAL SYSTEM 91
C00814-10
–
Press headlight bulb

lightly into the bulb socket, turn it counterclockwise, and
pull it out.
– Insert the new headlight bulb.
Headlight (S2/socket BA20d) ( p. 115)
– Insert the rubber cap with the bulb socket into the reflector and turn it clockwise
all the way.
Info
Ensure that O-ring

is seated properly.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Refit the headlight mask with the headlight. ( p. 90)
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
– Check the headlight setting. ( p. 92)
15.8 Changing the turn signal bulb (Freeride E‑XC)
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
C00816-10
Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove diffuser

.
C00817-10
–
Lightly squeeze together the orange cap

in the area of the holding lugs and take
it off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until
it stops.
Turn signal (R10W/socket BA15s) ( p. 115)
– Mount the orange cap.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
