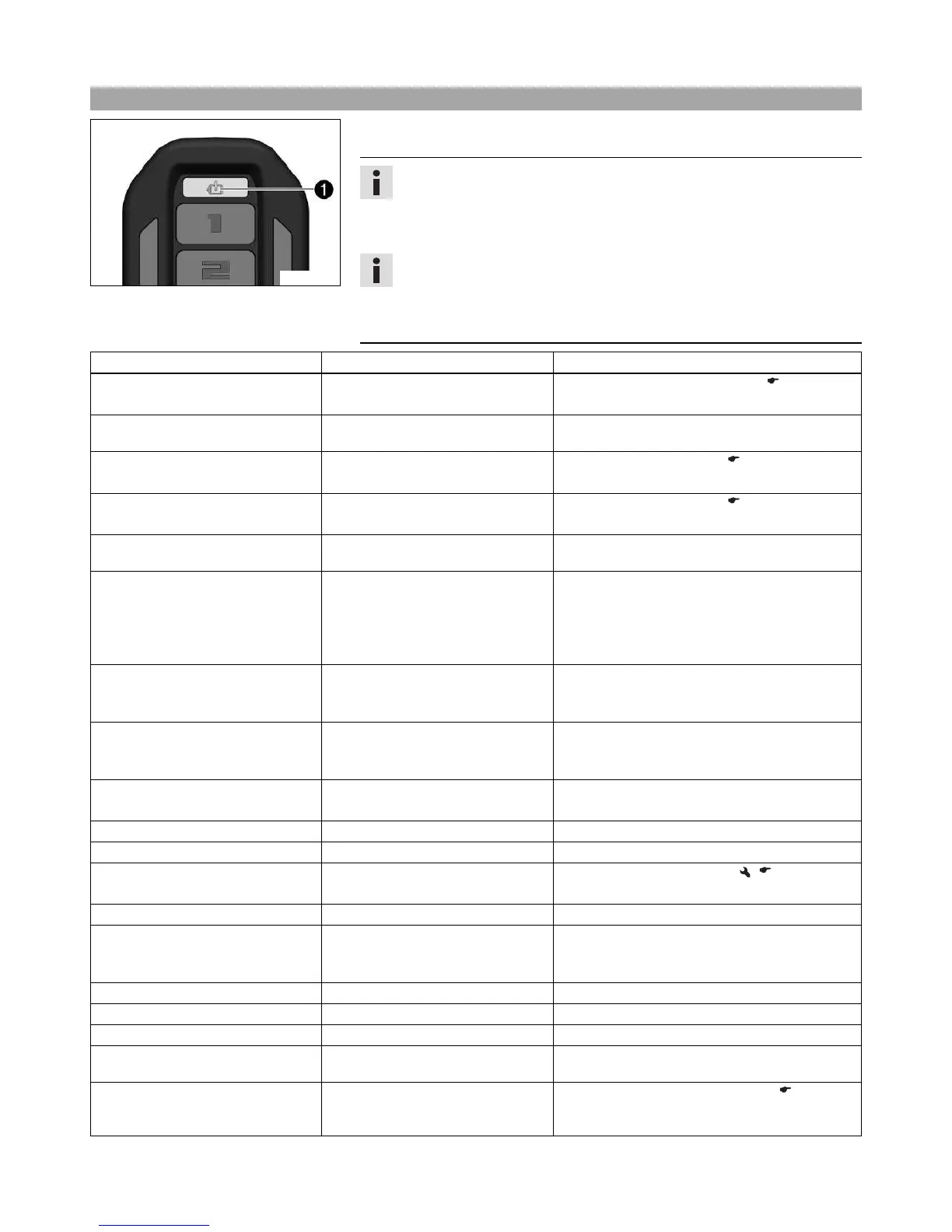

22 TROUBLESHOOTING 110
22.1 Vehicle troubleshooting
402136-10
The faults are indicated by the yellow electric motor indicator lamp

and by acoustic
signals that sound at the same time.
Tip
The first step to take in case of any fault is to switch off the vehicle at the main
switch, wait for 15 seconds, and then switch the vehicle back on.
If a fault is not eliminated by the measures specified here, an authorized KTM
workshop will be happy to help you.
Info
The pause between the signals of the 1st digit is 0.25 seconds.
The pause between the 1st and 2nd digits is 1 second.
The pause between the signals of the 2nd digit is also 0.25 seconds.
The pause until the blink code repeats is 3 seconds.
Faults Possible cause Action
Blink code 11 on the vehicle KTM PowerPack is discharged – Recharge the KTM PowerPack. ( p. 96)
– Use the charged KTM PowerPack.
Blink code 13 on the vehicle Fault during charging – Stop charging, switch off the main switch, and
restart charging.
Blink code 22 on the vehicle Overtemperature of the control unit – Check the coolant level. ( p. 102)
– Check the radiator for dirt.
Blink code 23 on the vehicle Overtemperature of the electric motor – Check the coolant level. ( p. 102)
– Check the radiator for dirt.
Blink code 24 on the vehicle Overtemperature of the
KTM PowerPack
– Let the KTM PowerPack cool down.
Blink code 31 on the vehicle Fault in the CAN communication – Switch the main switch off and on.
– Check the KTM PowerPack for correct position-
ing.
– Check the connection of the multifunction dis-
play for loose connectors.
Blink code 33 on the vehicle Fault in the communication with the
KTM PowerPack
– Switch the main switch off and on.
– Check the KTM PowerPack for correct position-
ing.
Blink code 34 on the vehicle Fault in the communication with the
multifunction display
– Switch the main switch off and on.
– Check the connection of the multifunction dis-
play for loose connectors.
Blink code 41 on the vehicle Fault in the throttle grip – Switch the main switch off and on.
– Check the throttle grip for external damage.
Blink code 42 on the vehicle Fault in the rotor position sensor – Switch the main switch off and on.
Blink code 43 on the vehicle Fault in the KTM PowerPack – Switch the main switch off and on.
Blink code 44 on the vehicle Fault in the 12 V supply – Recharge the 12 V battery.
( p. 87)
– Install a new 12 V battery.
Blink code 45 on the vehicle Fault in the electric motor – Switch the main switch off and on.
Blink code 46 on the vehicle Fault in the onboard network wiring
harness or in a switch
– Switch the main switch off and on.
– Check the onboard network wiring harness and
plug-in connections for external damage.
Blink code 51 on the vehicle Fault in the ECU – Switch the main switch off and on.
Blink code 52 on the vehicle Fault in the moisture monitor – Switch the main switch off and on.
Blink code 53 on the vehicle Fault in the KTM PowerPack relay – Switch the main switch off and on.
Blink code 54 on the vehicle Fault in the insulation monitor – Clean and dry the discharge plug and discharge
socket without compressed air.
Speedometer values deleted (time,
stop watch, lap times)
(Freeride E‑XC)
The battery in the speedometer is
discharged
– Change the speedometer battery. ( p. 92)
