KTM Freeride E-SX - Refitting the Headlight Mask with the Headlight (Freeride E-XC); Changing the Headlight Bulb (Freeride E-XC)

15 ELECTRICAL SYSTEM 90

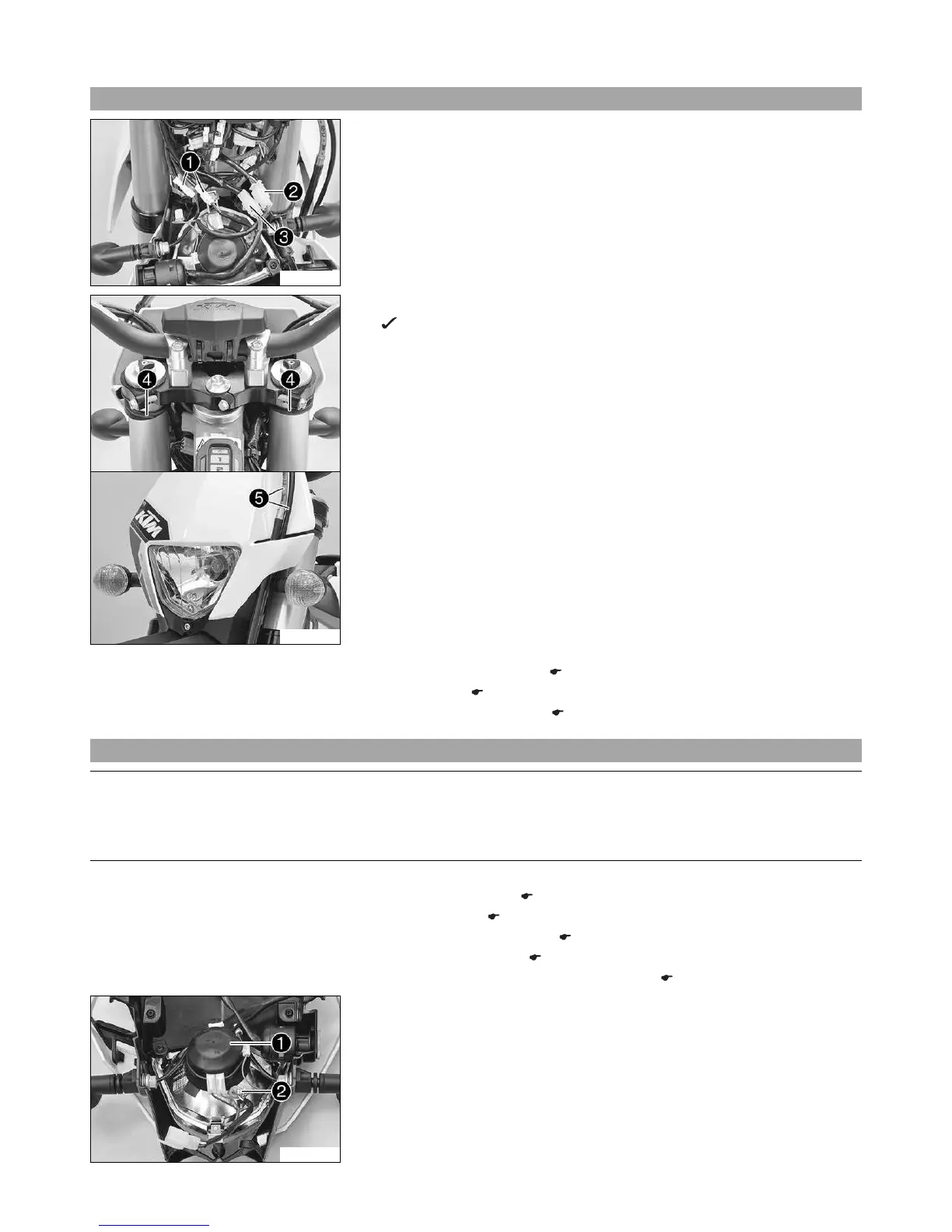

15.6 Refitting the headlight mask with the headlight (Freeride E‑XC)
C00812-11
Main work
–
Connect plug-in connectors of turn signals

, head light

, and ignition
lock

.
C00851-10
–
Position the headlight mask and fix it with rubber straps

.
The holding lugs engage.
–
Position the brake line and wiring harness

.
Finishing work
– Install the KTM PowerPack. (
p. 94)
– Lock the seat. ( p. 63)
– Check the headlight setting. ( p. 92)
15.7 Changing the headlight bulb (Freeride E‑XC)
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
– Remove the KTM PowerPack. ( p. 94)
– Mount the covering cap. ( p. 64)
– Remove the headlight mask with the headlight. ( p. 89)
C00813-10
Main work
–
Turn rubber cap

together with the underlying bulb socket counterclockwise all
the way and remove it.
–
Pull bulb socket

of the parking light out of the reflector.
