16 KTM POWERPACK, BATTERY CHARGER 95
402145-12
–
Position the KTM PowerPack
in the vehicle.
The KTM PowerPack is resting flush on the electric motor.
Info
The KTM PowerPack is very heavy. A second person can help with installa-
tion.
–
Tighten screws
.
Guideline
KTM PowerPack attachment M6 10 Nm (7.4 lbf ft)
Finishing work
– Lock the seat. ( p. 63)

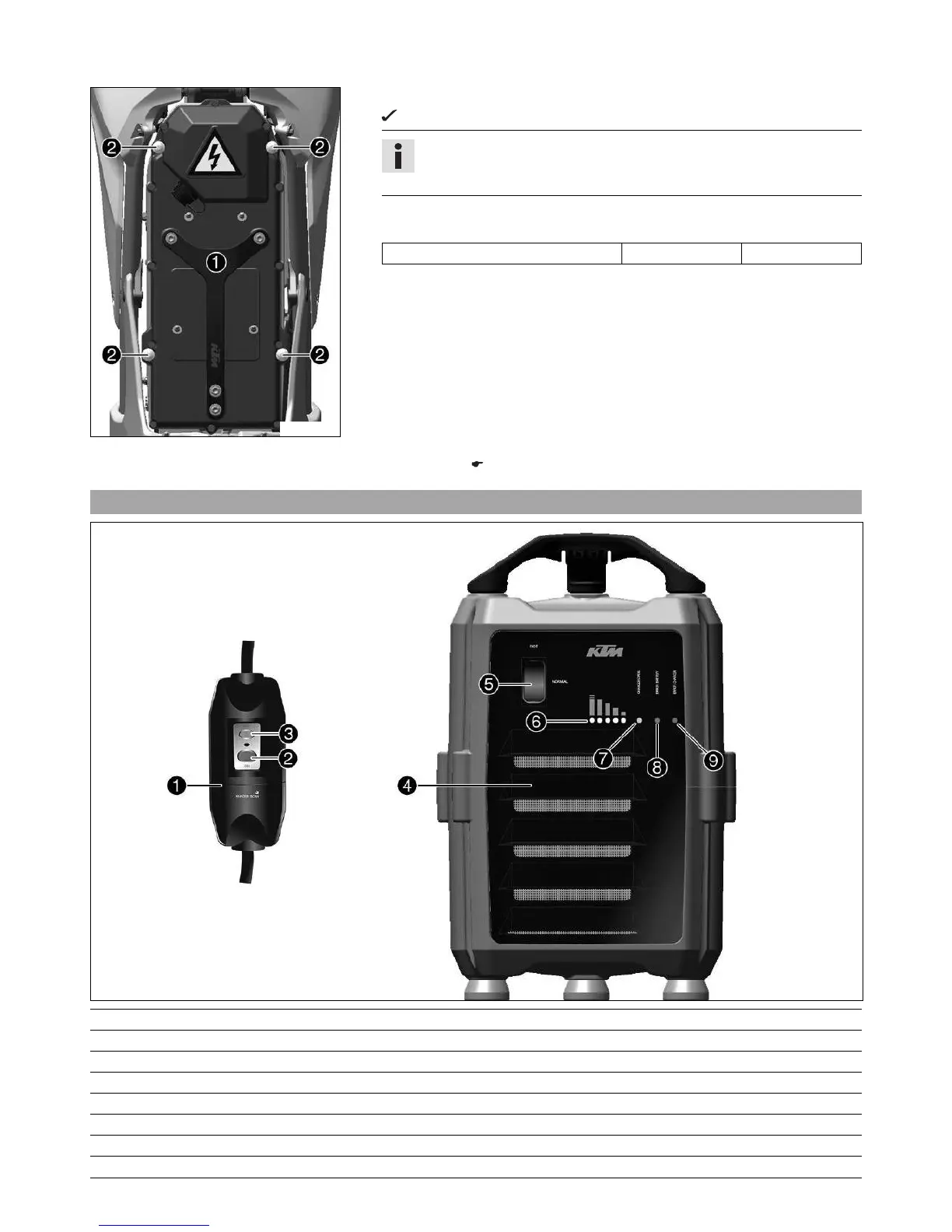

16.3 Overview of the KTM PowerPack battery charger
402153-10
1 Residual current circuit breaker
2 "On" charger switch
3 "Off" charger switch
4 Battery charger
5 Charging mode switch
6 Charge level indicator
7 Status indicator
8 LED for KTM PowerPack fault
