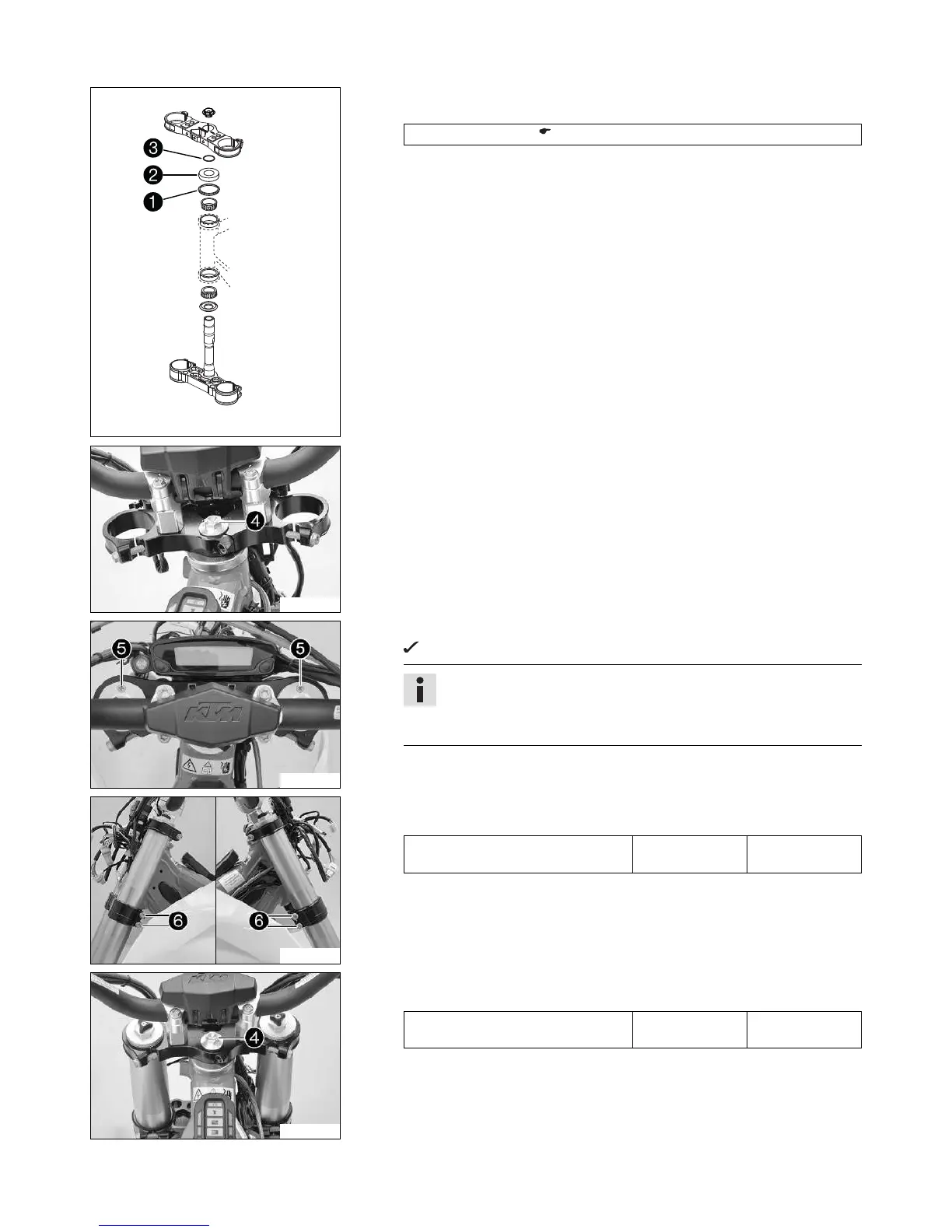

C00759-10
(Freeride E‑XC)
– Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease ( p. 119)
– Insert the lower triple clamp with the steering stem. Mount the upper steering
head bearing.
–
Check whether the upper steering head seal
is correctly positioned.
–
Push the protective ring
and O-ring
onto the steering stem.
C00834-10
– Position the upper triple clamp with the handlebar.
–
Mount screw
but do not tighten yet.
– Position the rear wheel brake line and wiring harness.
C00832-10
– Position the fork legs.
Bleeder screws
face forward.
Info
The lowest milled groove in the fork leg must be flush with the top edge
of the upper triple clamp.
The support for the brake caliper is attached to the left fork leg.
C00833-10
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
C00831-10
–
Tighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm
(8.9 lbf ft)
