12 SERVICE WORK ON THE CHASSIS 58

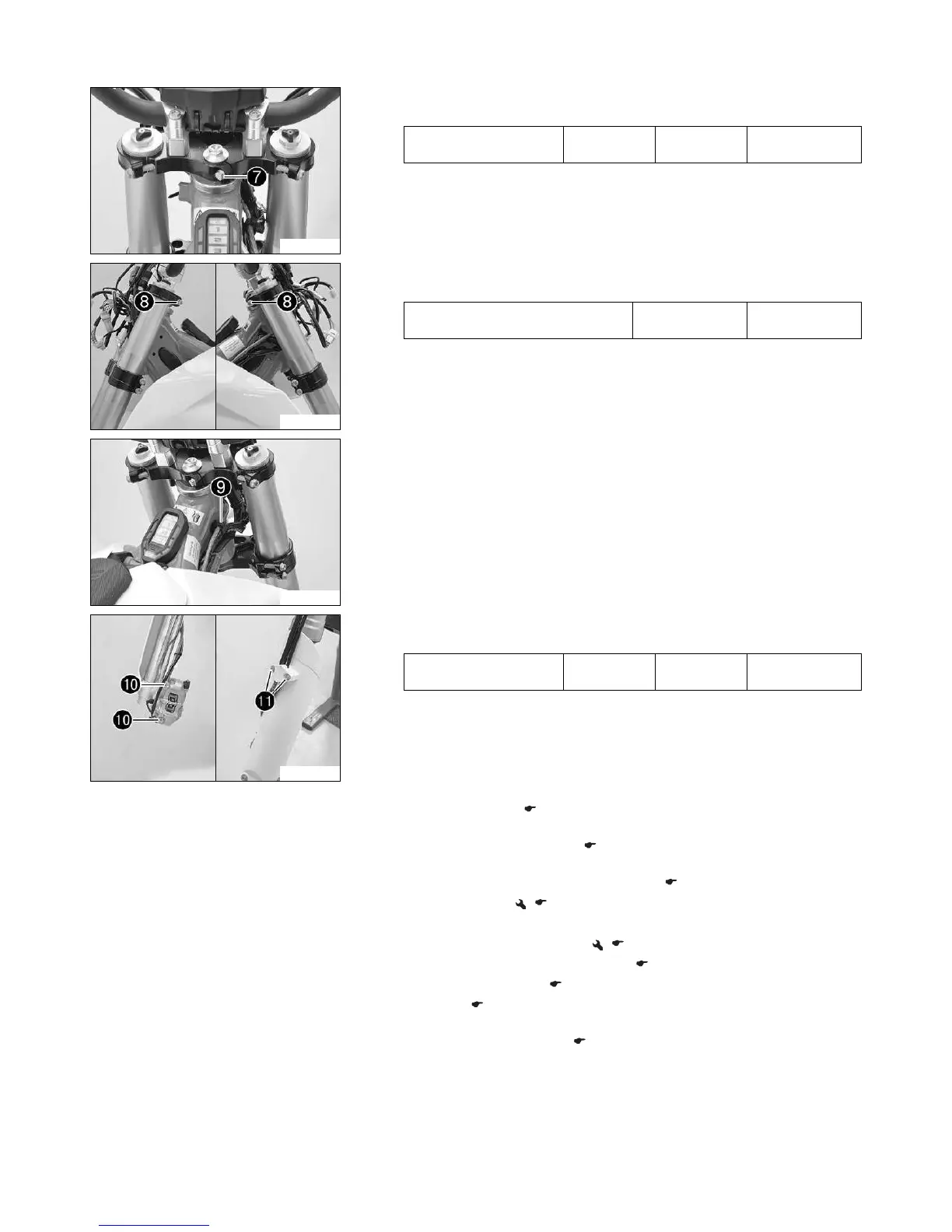

C00830-10
–
Mount and tighten screw

.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
C00833-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
C00829-10
–
Attach the brake line and close the holder

.
C00837-10
–
Position the brake caliper. Mount and tighten screws

with the spacers.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Position the brake line, wiring harness, and clamp. Mount and tighten
screws

.
– Connect the plug-in connector of the speedometer sensor and mount the cable
tie(s).
Finishing work
– Install the front fender. ( p. 61)
(Freeride E‑SX)
– Install the start number plate. ( p. 61)
(Freeride E‑XC)
– Refit the headlight mask with the headlight. ( p. 90)
– Install the front wheel. ( p. 81)
– Check that the cable and brake lines are routed correctly.
– Check the play of the steering head. ( p. 59)
– Remove the motorcycle from the lift stand. ( p. 49)
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
(Freeride E‑XC)
– Check the headlight setting. ( p. 92)
