11 TUNING THE CHASSIS 48
0
0
0
0

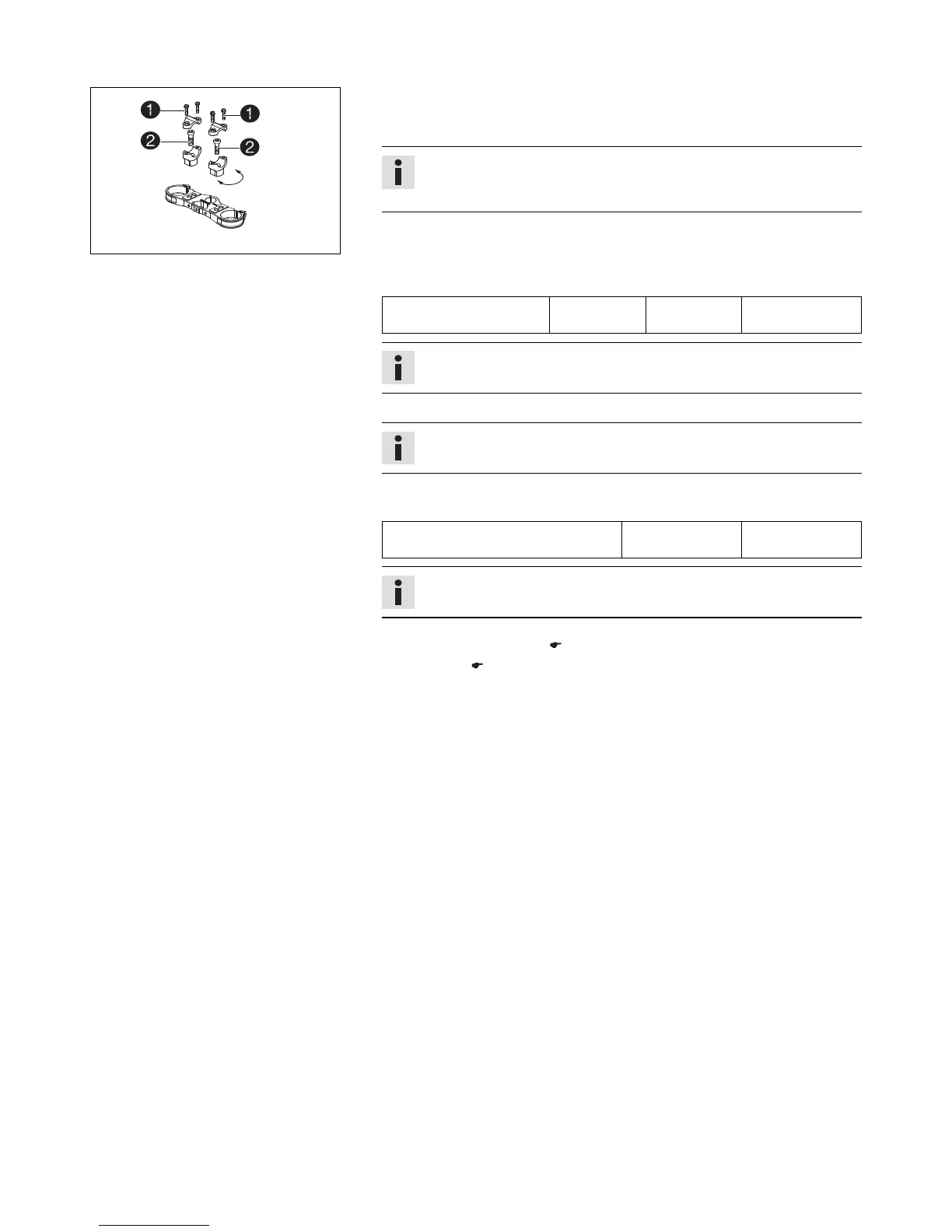

C00761-10
Main work
–
Remove screws

. Take off the handlebar clamps.
– Take off the handlebar and hang to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws

. Take off the handlebar supports.
– Place the handlebar supports in the required position. Mount and tighten
screws

.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–
Position the handlebar clamps. Mount screws

and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
Make sure the gap widths are even.
Finishing work
– Install the KTM PowerPack. ( p. 94)
– Lock the seat. ( p. 63)
