Reinstalling

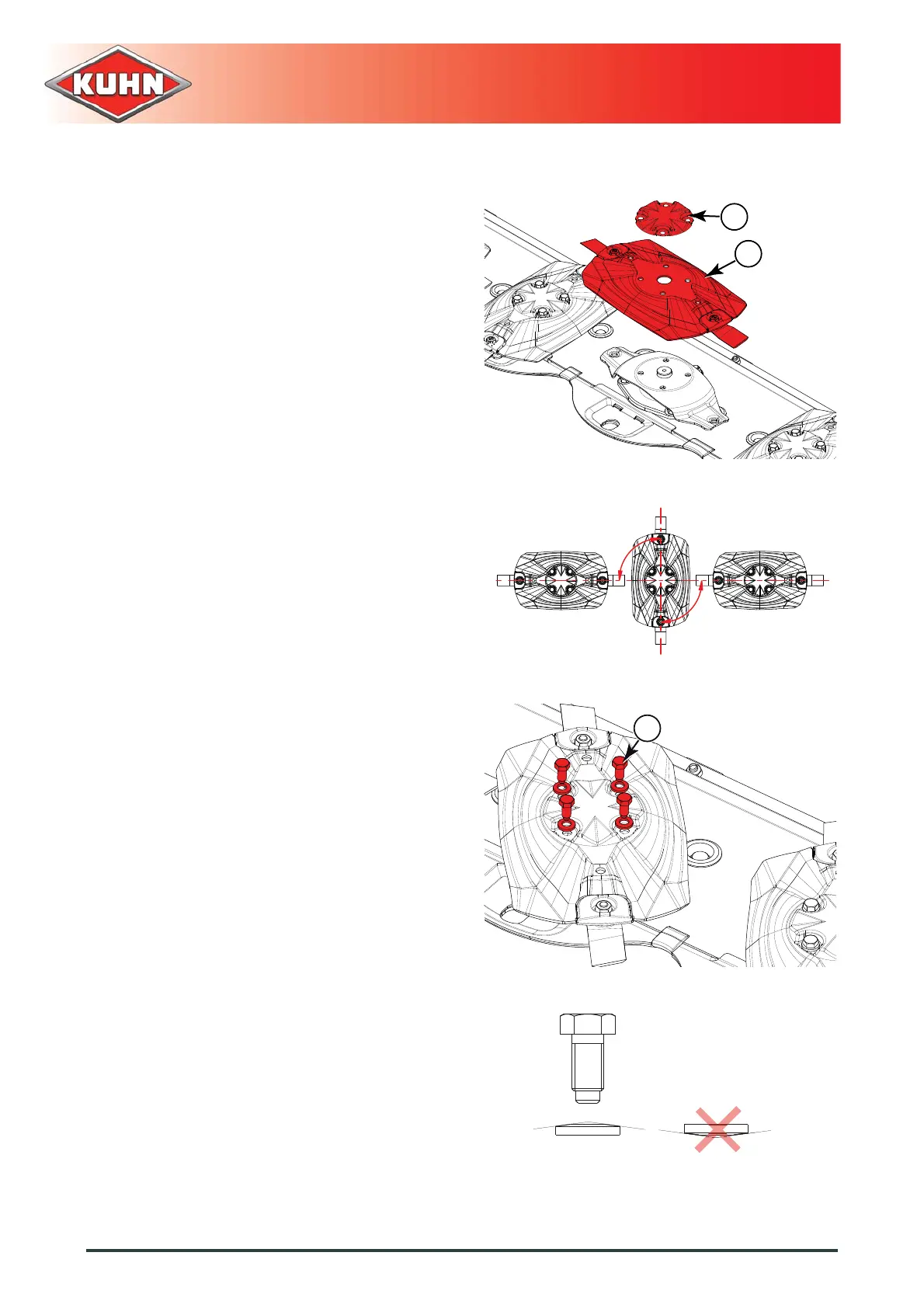

- Refit the disc (2).
- Respect disc direction of rotation according to
fitting of knives. Make sure the arrow on the knife
upper face is pointing in the disc's direction of
rotation.
- Reinstall disc cover (1).
- Respect an X of 90° between neighboring discs.
- Reinstall bolts (1) and their conical washers.
- Position conical centre of washers at the top.
