8. - Instructions for work
GMD240 - 280 - 310
63
KN204BGB_G
Disc mower

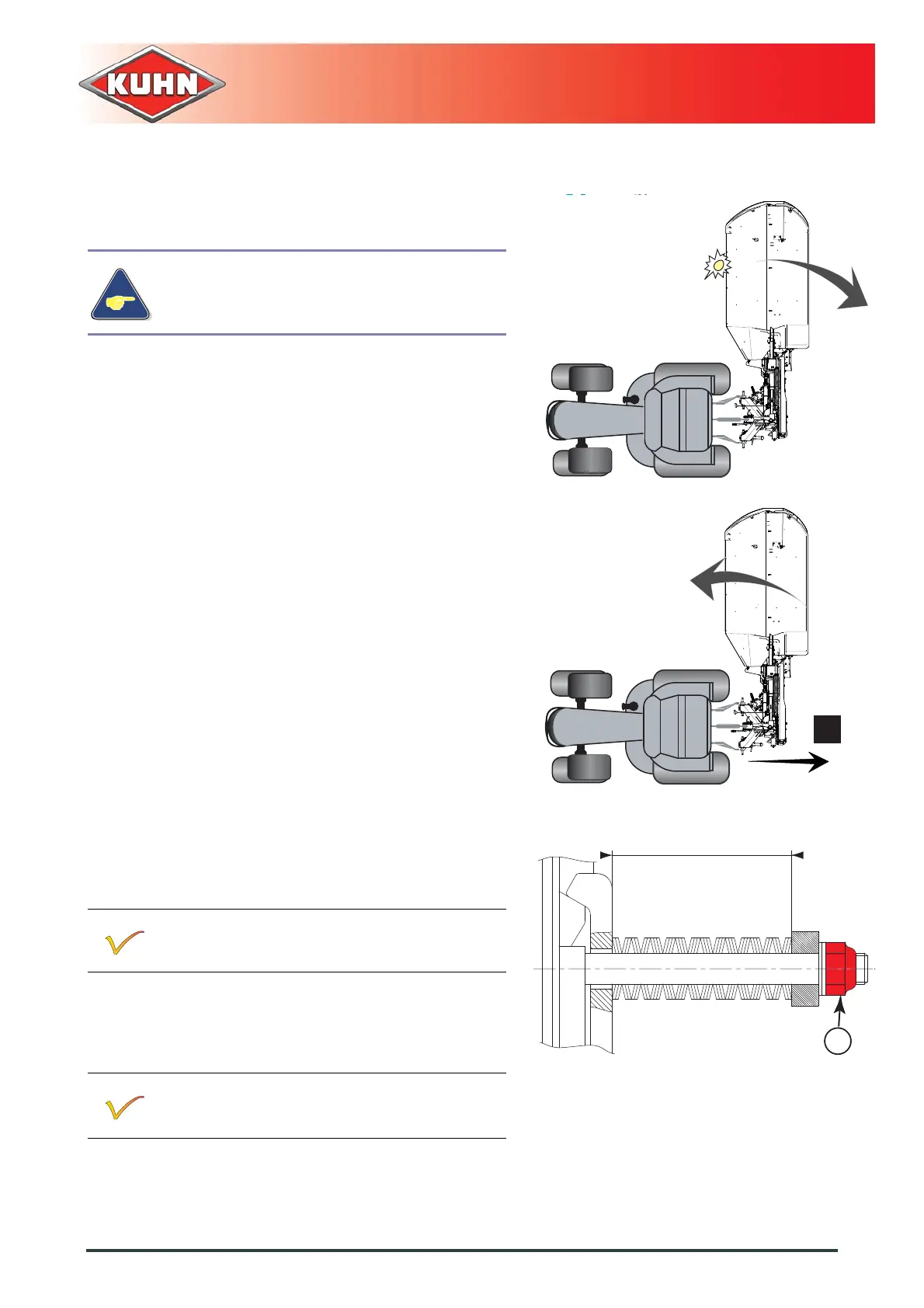

The break-away latch allows the cutter bar to pivot
to the rear when hitting an obstacle.
- In case an obstacle has been struck, check
that the mowing unit has not been
damaged.
The safety breakback is reset by reversing (a).
- If the break-away latch releases too easily after
reset, tighten nut (1) to increase spring washer
compression slightly.
- Respect spring washer layout.
Basic adjustment:
• L = 95 mm (3.7’’).
For proper functioning of the safety, measure L
must not be below 91 mm (3.60").
a
