KUHN GMD310 - Coupling the Machine

GMD240 - 280 - 310
44
6. - Putting into service
KN204BGB_G
Disc mower

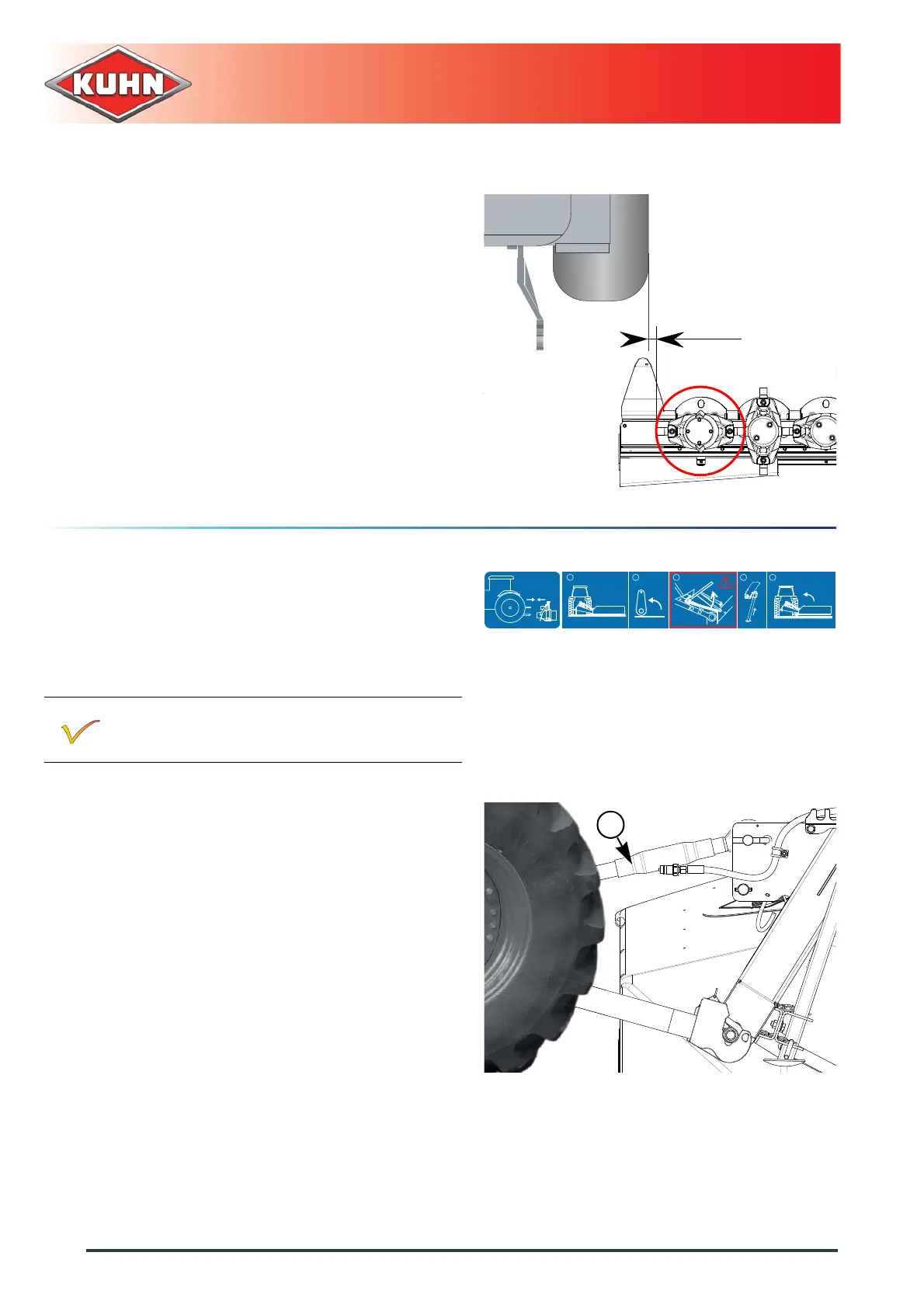

 Positioning of lower links
- Measure dimension E.
- Adjust the side stabilizers of the tractor's lower
links to obtain a measure E of 50 mm (2").
6.2.4 Coupling the machine
- Lower the tractor three-point linkage.
- Position ball joints of tractor lower links in line with
machine lower yokes.
- Attach the lower links to the hitch pins.
It is recommended to couple the left lower link
first.
- Attach top link (1) in one of the upper holes on the
tractor side.
E
I
II
III
IV
V
1
