GMD240 - 280 - 310
42
6. - Putting into service
KN204BGB_G
Disc mower

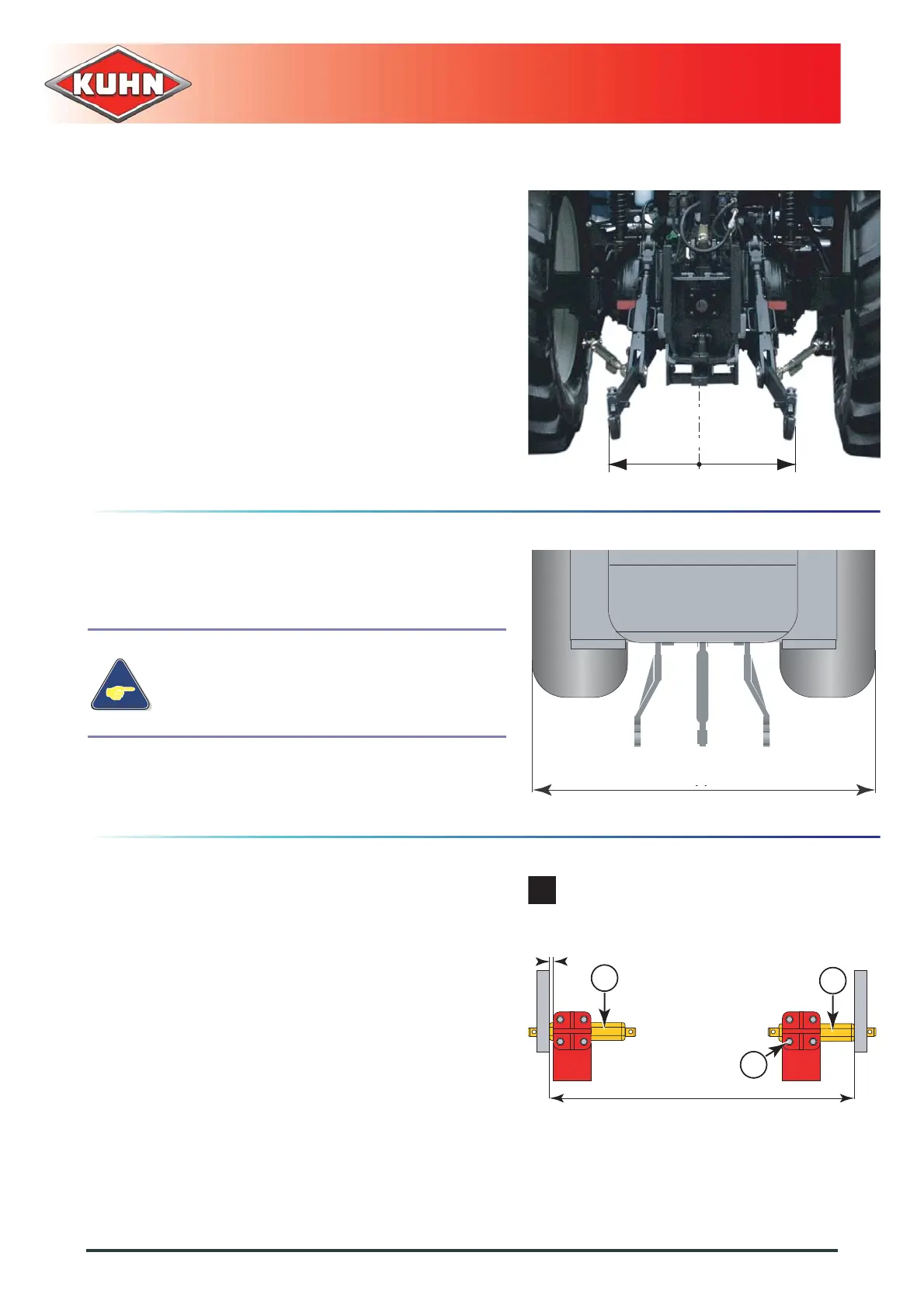

Lateral adjustment of the lower links
- Distribute the play on each side of the lift linkage.
- Check that the stabilisers function properly
(Adjustment, Locking / Unlocking).
6.2.3 Preparing the machine
Linkage adjustment
When optional equipment is used, follow
specific procedures mentioned in the related
section:
• Optional equipment / Longer hitch pins.
- Measure dimension A.
If measure A is below 2.10 m (6’11’’):
- Place lower links in position a.
Adjust the hitch pins:
- Loosen the 8 screws (3).
- Position hitch pin (1) at a distance of F = 10 mm
(0.4").
- Tighten 4 hitch pin screws (1):
• Torque value: 12.3 daNm (91 lbf ft).
- Position hitch pin (2) at a distance of X = 825 mm
(2’8").
- Tighten 4 hitch pin screws (2):
• Torque value: 12.3 daNm (91 lbf ft).
