KUHN GMD310 - Chain Stroke Limiter

9. - Optional equipment
GMD240 - 280 - 310
69
KN204BGB_G
Disc mower

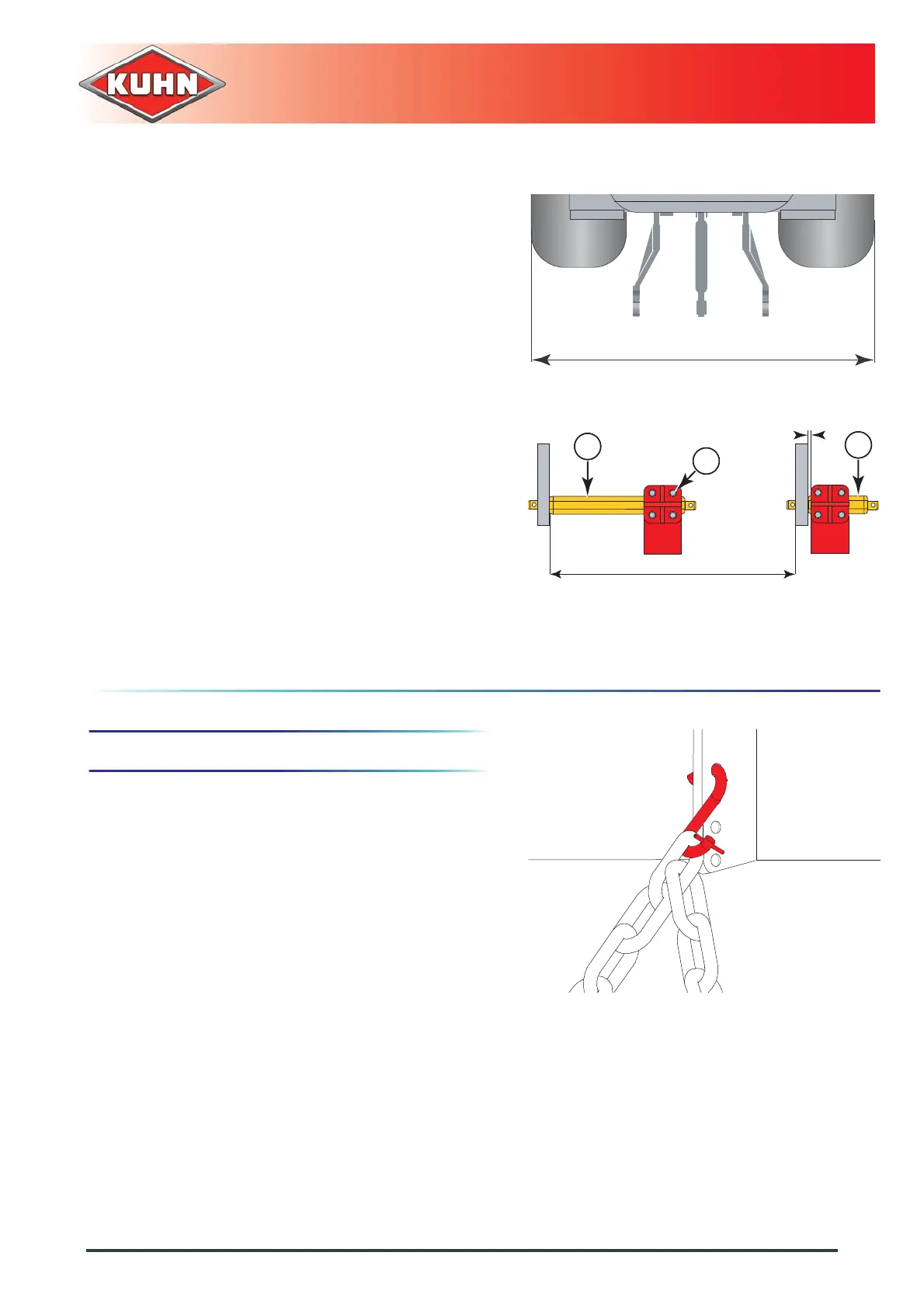

 Linkage adjustment
- Measure dimension A.
If measure A exceeds 2.40 m (7’10"):
- Position lower links:
Adjust the hitch pins:
- Loosen the 8 screws (3).
- Position hitch pin (2) at a distance of H = 10 mm
((0.4")).
- Tighten 4 hitch pin screws (2):
• Torque: 12.3 daNm (91 lbf ft).
- Position longer left hitch pin (1) at a distance X =
825 mm (2’8").
- Tighten 4 hitch pin screws (1):
• Torque: 12.3 daNm (91 lbf ft).
9.11 Chain stroke limiter
GMD240-280-310:
This equipment enables adjusting the chassis
height in the absence of a hydraulic stroke limiter
with position indexation on the tractor.
A
X
1
3
2
H
