7. - Instructions for transport
GMD240 - 280 - 310
51
KN204BGB_G
Disc mower
7. Instructions for transport
Before placing the machine into transport
position:
- Wait until the rotating parts have come to a
complete stop.
- Check that nobody is located in the
machine pivoting area. If there is someone,
make sure the person moves away.

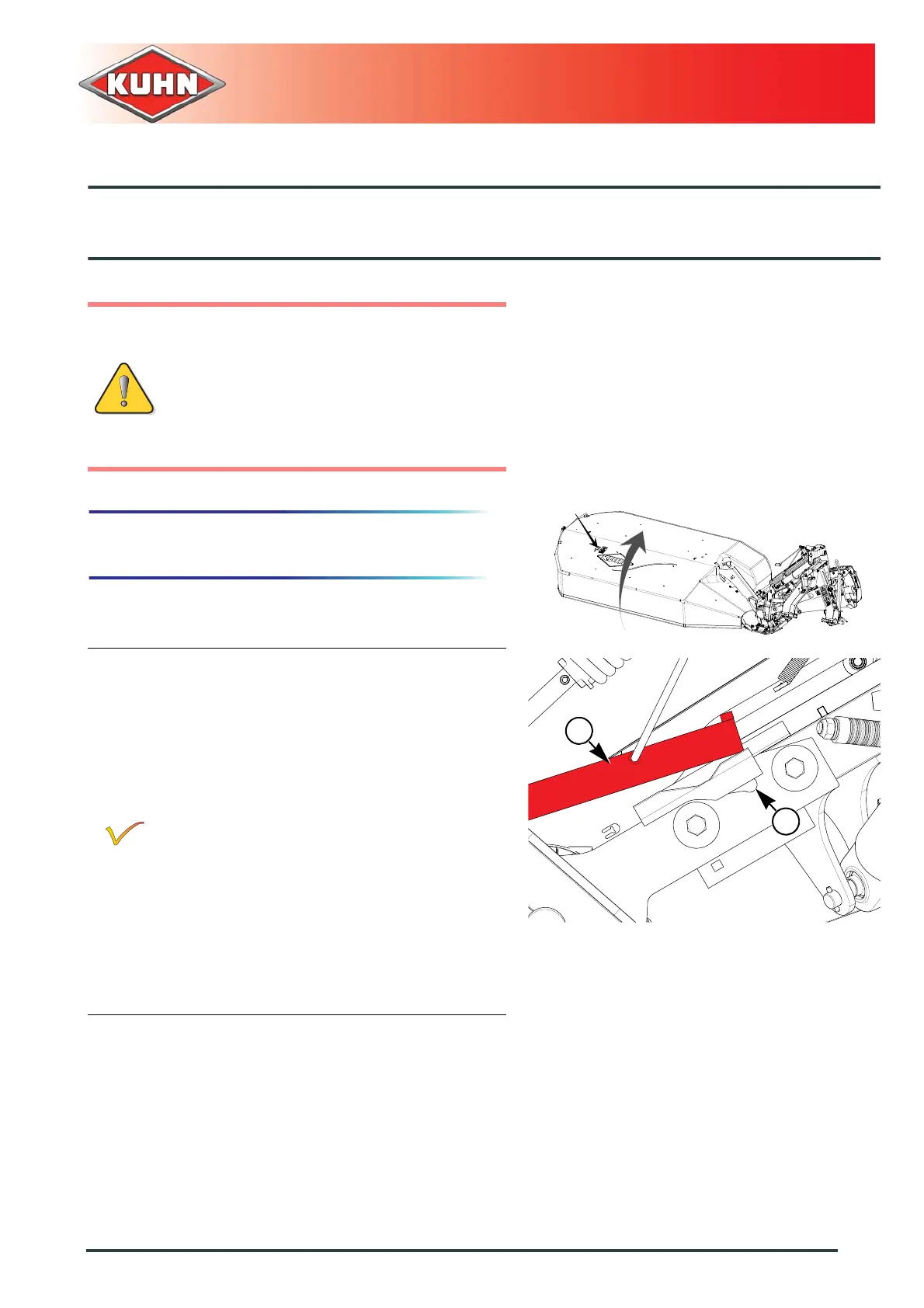

7.1 Putting the machine into
transport position
From the working position:
When the following equipment is fitted:
Mechanical safety release
- Unlock front guard using 18 mm wrench
supplied with the machine.
- Lift up the front guard:
• The guard locks automatically.
- Pull release cord until lift stop (1) is free.
- Lift the machine using the tractor's lift linkage.
- Fully lift tractor lift linkage.
- Activate single acting valve of the
transport/work positioning cylinder in the
transport position direction:
• When the cutter bar pivots, wait until the lift
stop end (1) exceeds its housing (2) to
release the cord.
- The machine automatically locks in transport
position.
