GMD240 - 280 - 310
52
7. - Instructions for transport
KN204BGB_G
Disc mower
When the following equipment is fitted:
Mechanical safety release + Hydraulic pivot +
Lighting and signalling

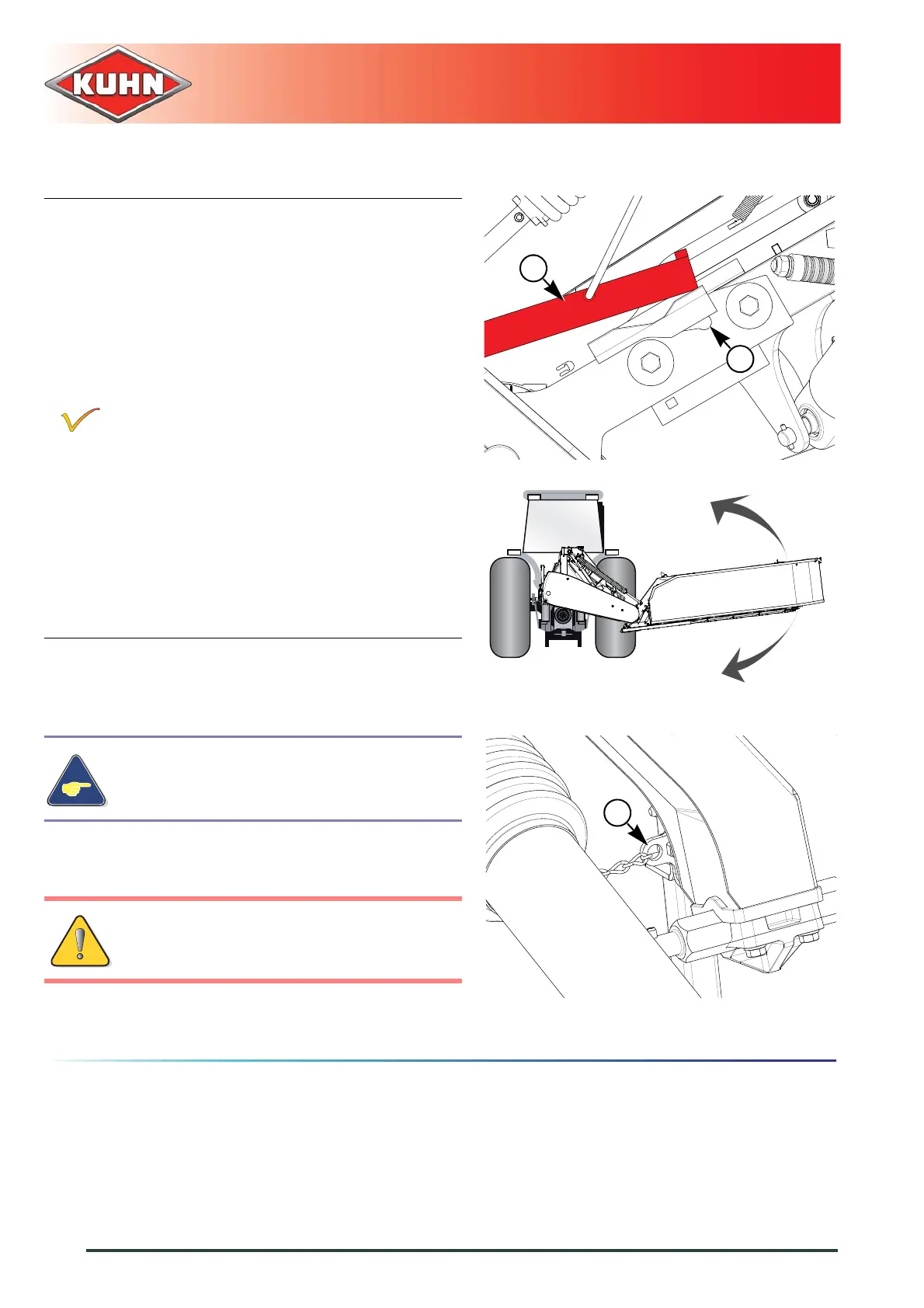

- Pull release cord until lift stop (1) is free.
- Lift the machine using the tractor's lift linkage.
- Activate single acting valve of the
transport/work positioning cylinder in the
transport position direction:
• When the cutter bar pivots, wait until the lift
stop end (1) exceeds its housing (2) to
release the cord.
- Continue operating the single acting valve to lift
the mowing unit end at approximately 500 mm
(1’8’’) from the ground.
- Activate double acting valve of pivot cylinder to
fully pivot the machine rearwards.
- Activate single acting valve of the
transport/work positioning cylinder in the
transport position direction.
• The machine automatically locks in transport
position.
- Coordinate manoeuvres to prevent any
interference between the tractor and the
guard front flap.
- The machine is in transport position.
- Never engage the tractor PTO drive when
the machine is in transport position.
