10. - Maintenance and storage
KN204BGB_G
Disc mower

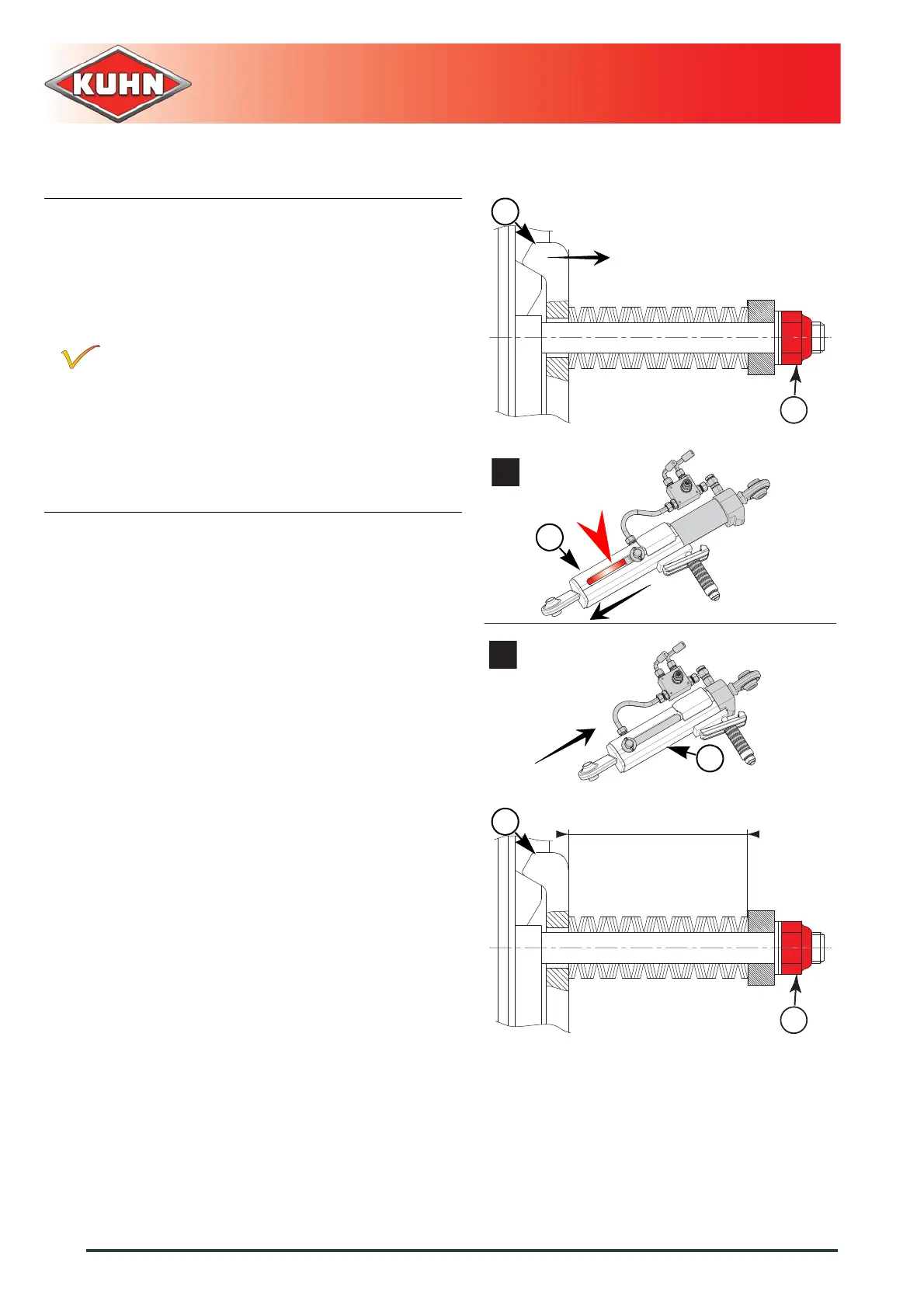

• The release sheath.
When the following equipment is fitted:
Mechanical safety release + Hydraulic pivot +
Lighting and signalling
- Loosen nut (1) to release lock (2).
- a: Extend cylinder (1).
- Grease the release sheath inside.
- b: Reinstall cylinder (1).
- Tighten nut (1).
- Make sure lock is engaged (2).
- Measure dimension L:
- L = 95 mm (3.7’’) (See section: Instructions for
work / Machine use / Machine safety / Basic
adjustment).
1
L
2
1
1
a
b
1
L
2
