Troubleshooting > Regular Maintenance

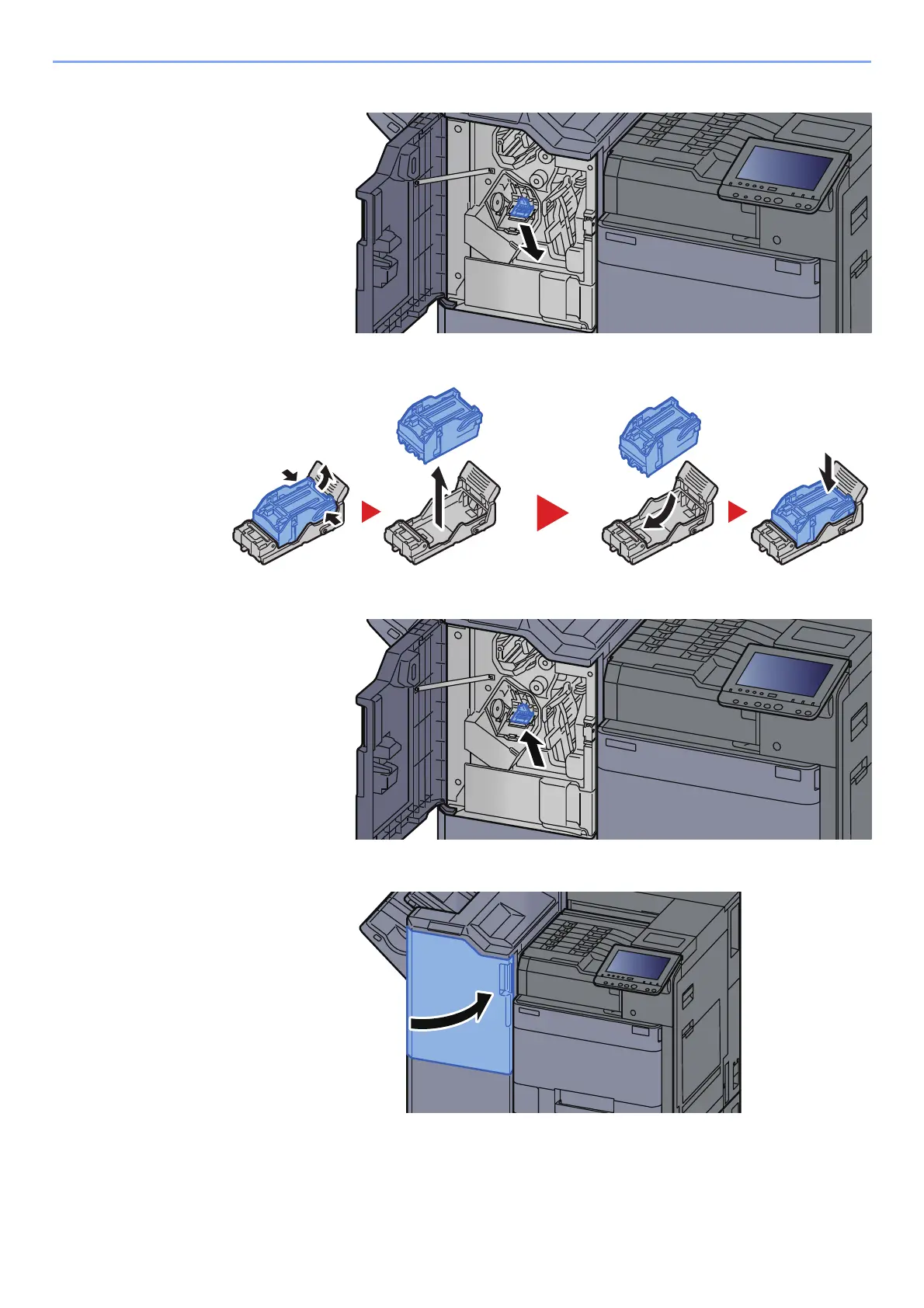

Remove the Staple Cartridge Holder (A).

Replace the staples.

Install the Staple Cartridge Holder (A).

Close the cover.
