2-11

Installing and Setting up the Machine > Using the Operation Panel

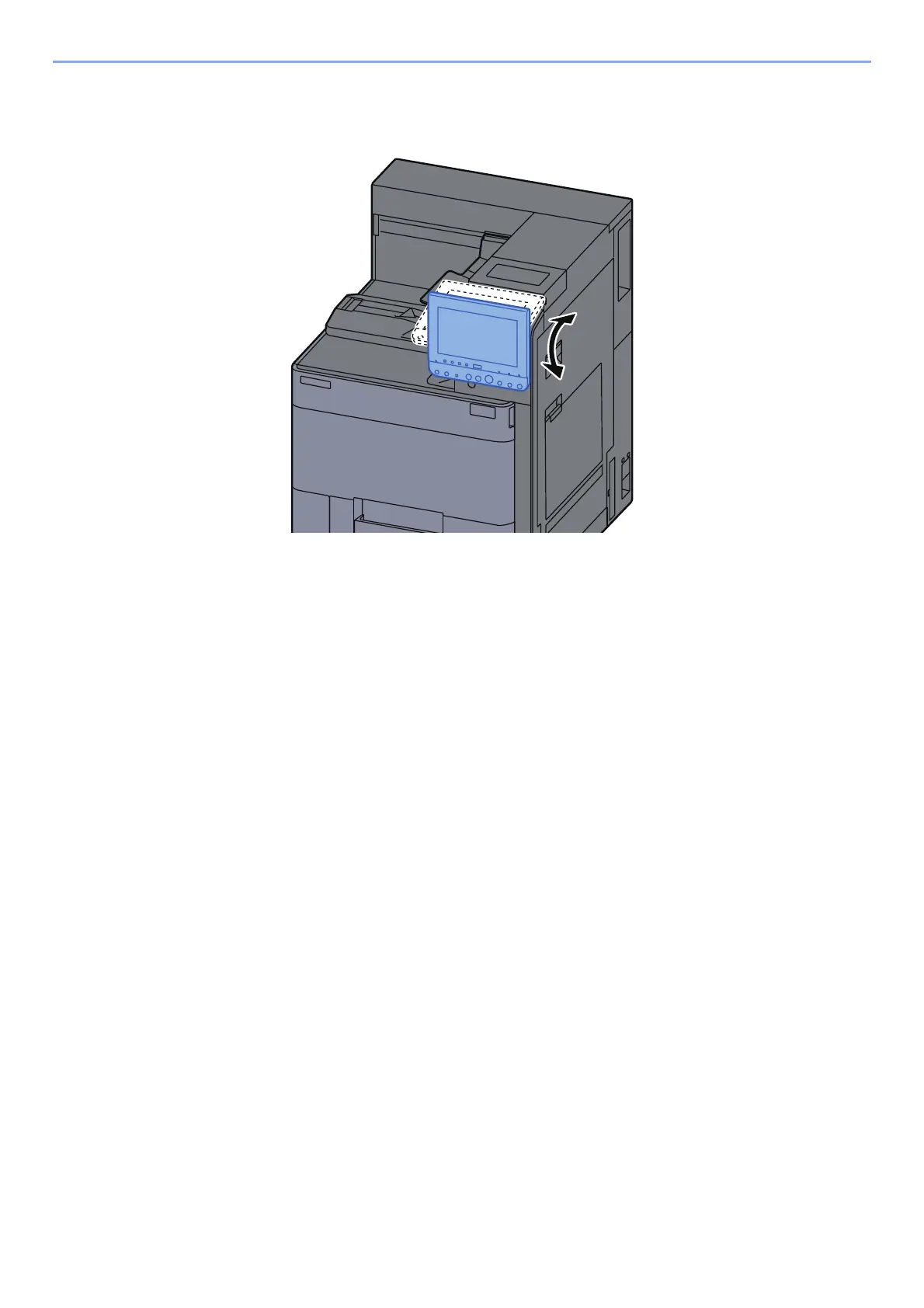

Adjusting the Operation Panel Angle

The angle of the operation panel can be adjusted.
