Troubleshooting > Regular Maintenance

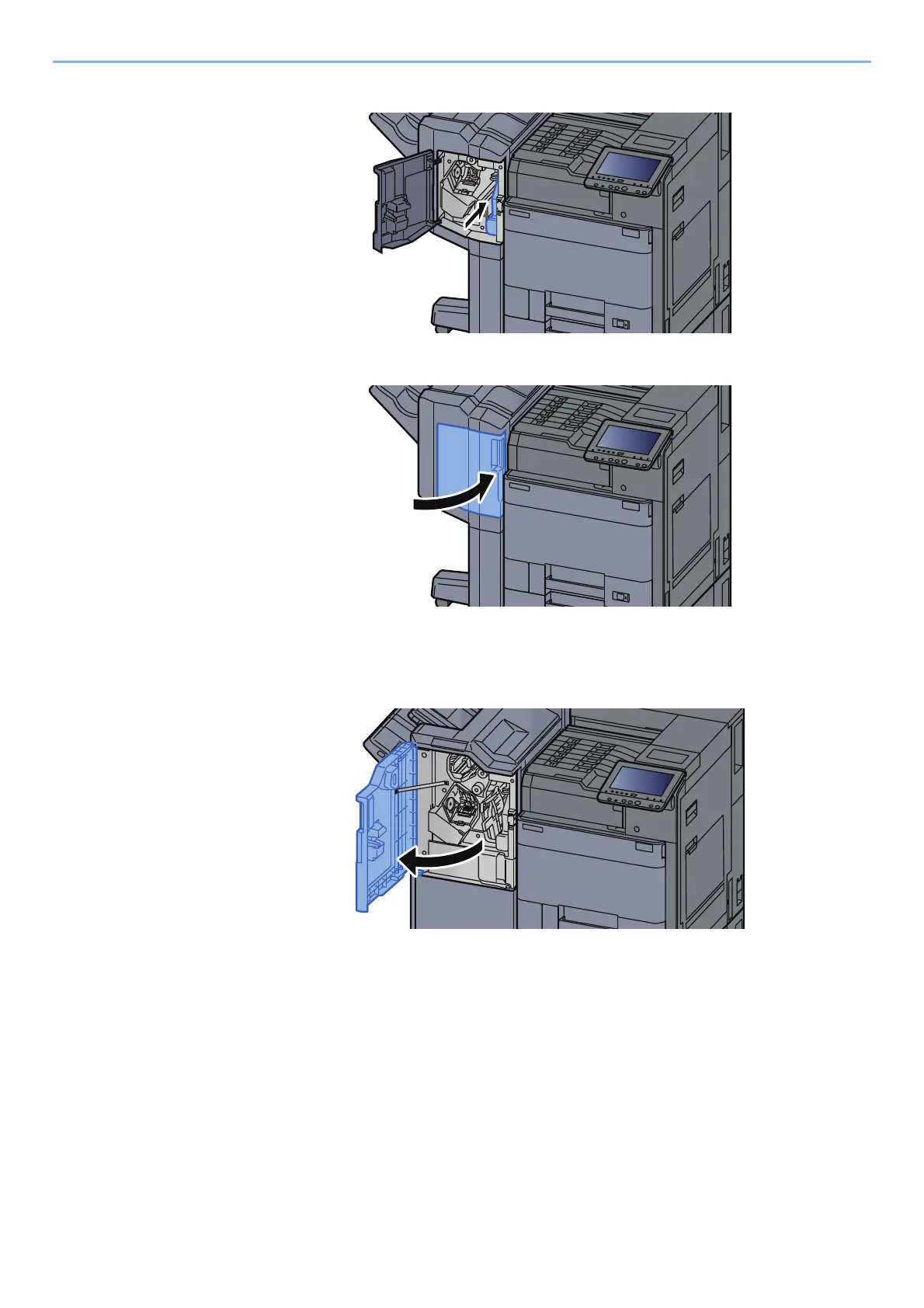

Install the Punch Waste Box.

Close the cover.

4,000-Sheet Finisher

Open the finisher front cover 1.
