Troubleshooting > Clearing Paper Jams

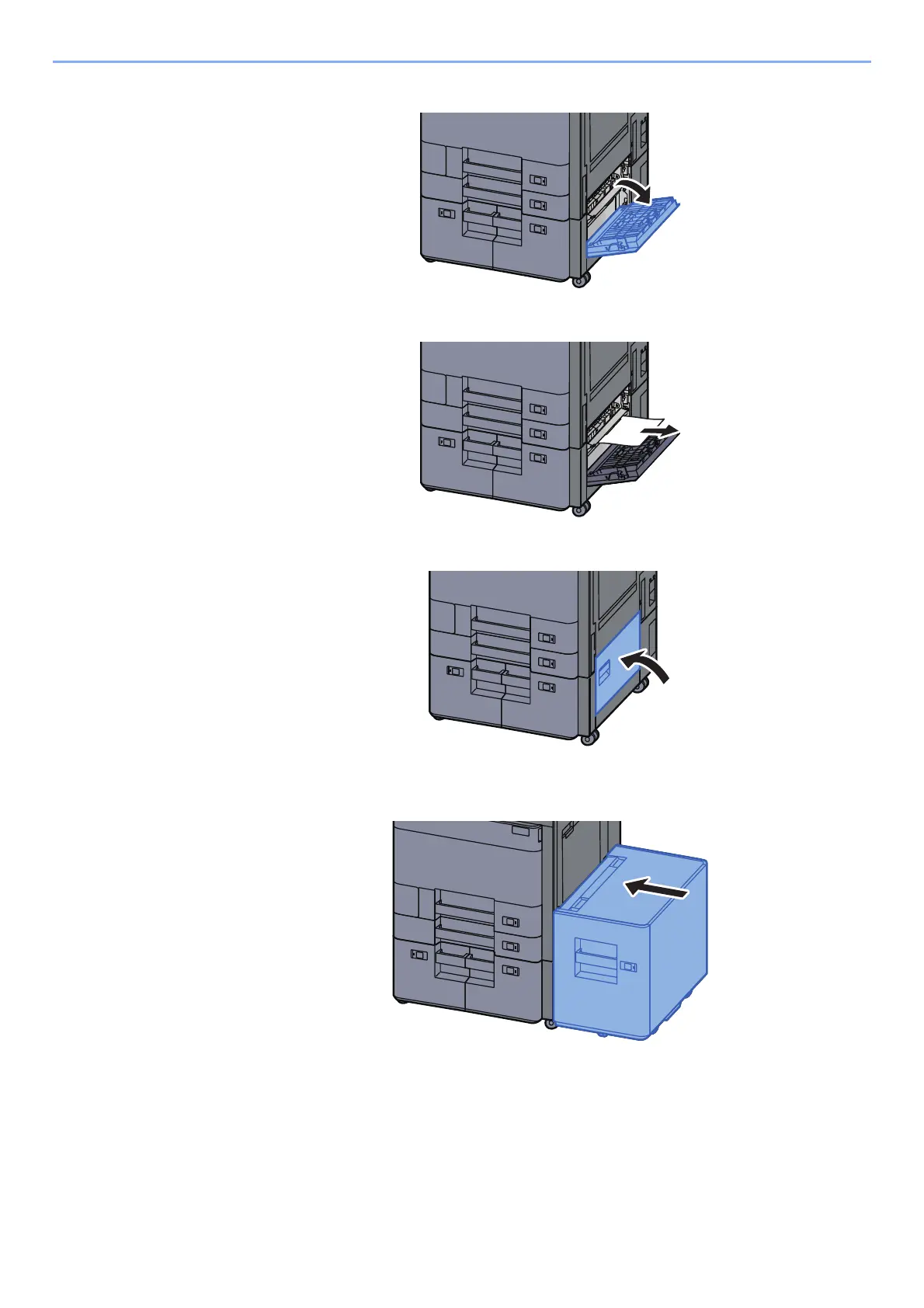

Open Right Cover 2.

Remove any jammed paper.

Return the cover to the original position.

If the optional side feeder is installed, return the side feeder to

the original position.
